Blackmagic Design ATEM Mini HDMI Live Stream Switcher

ATEM Mini features 4 HDMI inputs and has an intuitive, easy to use design that makes it possible for anyone to live stream multi-camera productions online via services and software such as YouTube Facebook Live or even Skype. Simply connect 4 high-quality HDMI inputs that can be used for live switching cameras, computers or even game consoles. You get a built-in DVE for exciting picture in picture effects, broadcast-quality transitions, upstream keyers for removing blue and green screen background, a downstream keyer for superimposing custom graphics, audio inputs a mixer, and more. To stream, ATEM Mini also has a USB output that works like a webcam, so you can connect to any video software. There's also HDMI video out for projectors.
Faster Video Production Plus Live Streaming
Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via YouTube at the same time. The USB webcam output of ATEM Mini connects to any computer and looks just like a built-in webcam, so all streaming software for social media platforms works! With up to 4 HDMI inputs you can set up multiple camera angles such as wide shots along with independent close-ups of each person in the performance. Or you can connect to a computer with a PowerPoint slide show, video clip playback, websites or gaming consoles. All switching is in real-time so you can live stream to any social media platform such as YouTube, Facebook, TwitchTV and many more!
Self Contained Broadcast Quality Switcher

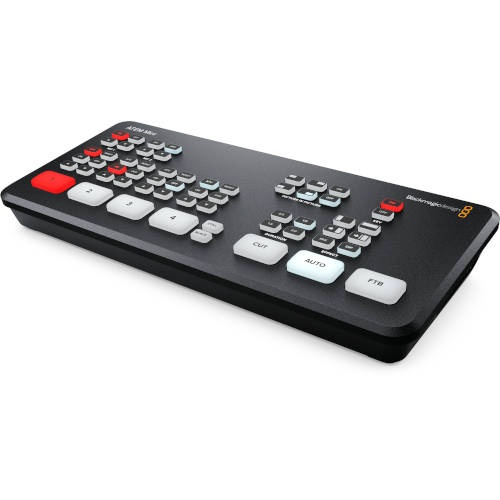

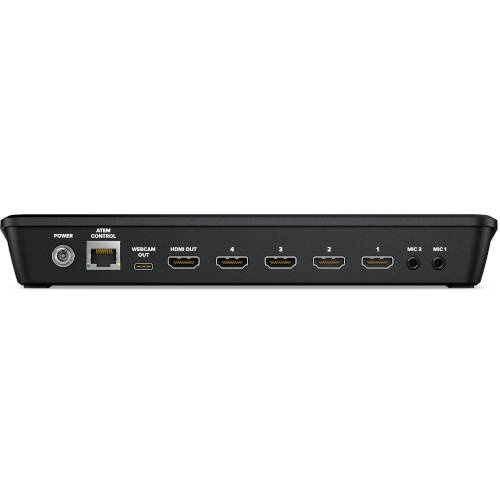

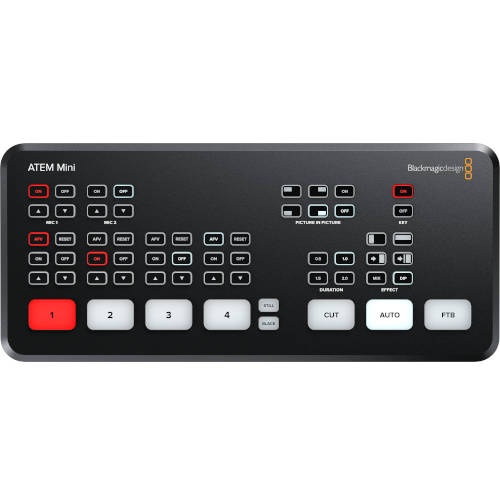

ATEM Mini’s compact all in one design includes both a control panel as well as connections. The front panel includes easy to use buttons for selecting sources, video effects and transitions. The source buttons are large so it’s possible to use it by feel, letting the presenter do the switching! You even get buttons for audio mixing! On the ATEM Mini Pro model you also get buttons for record and streaming control as well as output selection buttons that let you change the video output between cameras, program and multiview. On the rear panel there are HDMI connections for cameras or computers, extra microphone inputs, USB for webcam out plus an HDMI "aux" output for program video.
Easy to Use and Fast to Learn!
There's never been a switcher that’s easier to use, as you simply press any of the input buttons labelled 1 to 4 on the front panel to cut between video sources. You can choose between cut or effects transitions by selecting the cut or auto buttons. Unlike cut, the auto button tells ATEM Mini to use a video effect when switching inputs. You can select from exciting transitions such as dissolve, or more dramatic effects such as dip to color, DVE squeeze and DVE push. The DVE is perfect for picture in picture effects and you can instantly set up different picture positions. There is even a still store for titles and graphics accessible via external software control.
In the Box
Blackmagic Design ATEM Mini HDMI Live Stream Switcher
12V Power Supply with International Adapters
Control Panel Software

Specifications

Connections
Total Video Inputs
4

Total Outputs
2

Total Aux Outputs
1

Total Audio Inputs
2 x 3.5mm stereo mini jack.

Total Audio Outputs
None, embedded audio only.

Timecode Connection
None

HDMI Video Inputs
4 x HDMI type A, 10-bit HD switchable.
2 channel embedded audio.

Video Input Re-Sync
On all 4 HDMI inputs.

Frame Rate and Format Converters
On all 4 HDMI inputs.

HDMI Program Outputs
1

Ethernet
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.

Computer Interface
1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.

ATEM Mini Pro ISO
Standards
HD Video Input Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

HD Video Output Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Video Streaming Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards
None

Video Sampling
4:2:2 YUV

Color Precision
10-bit

Color Space
Rec 709

HDMI Input Resolutions from Computers
1280 x 720p 50Hz, 59.94Hz and 60Hz
1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 60Hz
1920 x1080i 50 and 59.94Hz 60Hz

Colorspace Conversion
Hardware based real time.

Product Specifics
Upstream Keyers
1

Downstream Keyers
1

Advanced Chroma Keyers
1

Linear/Luma Keyers
2

Transition Keyer
DVE only.

Total Number of Layers
5

Pattern Generators
1

Color Generators
2

DVE with Borders and Drop Shadow
1

Interface
Minimum monitor resolution of 1366 x 768.

Audio
Audio Mixer
6 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

Analog Input
Unbalanced stereo

Analog Input Delay
Up to 8 frames

Input Impedance
1.8k

Max Input Level
+6dBV

Mic Plug In Power
Available on both 3.5mm mini jack connections.

Streaming
Direct Streaming
ATEM Mini Pro ISO supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP).

Recording
Direct Recording Video and Audio
USB-C 3.1 Gen 1 expansion port can record directly to external media.

Video Recording
4 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.

1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.

Audio Recording
6 x 2 channel audio inputs recorded as seperate 24‑bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x HDMI 2 channel embedded audio inputs.

Switching
Program switching recorded as a DaVinci Resolve project .drp file.

Media Format
Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.

Multi View Monitoring
Multi View Monitoring
1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters.

Multi View Video Standard
HD

Media Player
Media Players
1

Channels
Fill and key for each Media Player.

Media Pool Still Image Capacity
20 with fill and key.

Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF.

Control
Control Panel
Built in control panel. Software control panel with camera control included. Supports optional hardware panel.

Control Panel Connection
Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.

Control Panel Compatibilty
Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Pro ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.

Control Panel Included
ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64 bit only.

Software
Software Updates
Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.

Configuration
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

Operating Systems
Mac icon
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.

Windows Icon
Windows 10, 64-bit.

Power Requirements
Power Supply
1 x External 12V power supply.

Power Usage
36W

Physical Specifications
ATEM Mini Pro ISO
Environmental Specifications
Operating Temperature
5° C to 40° C (41° - 104° F)

Storage Temperature
-10° to 60° C (14° to 140° F)

Relative Humidity
0% to 90% non-condensing

What's Included
ATEM Mini Pro ISO

External 12V DC power supply with international socket adapters

Warranty
12 Months Limited Manufacturer's Warranty.
