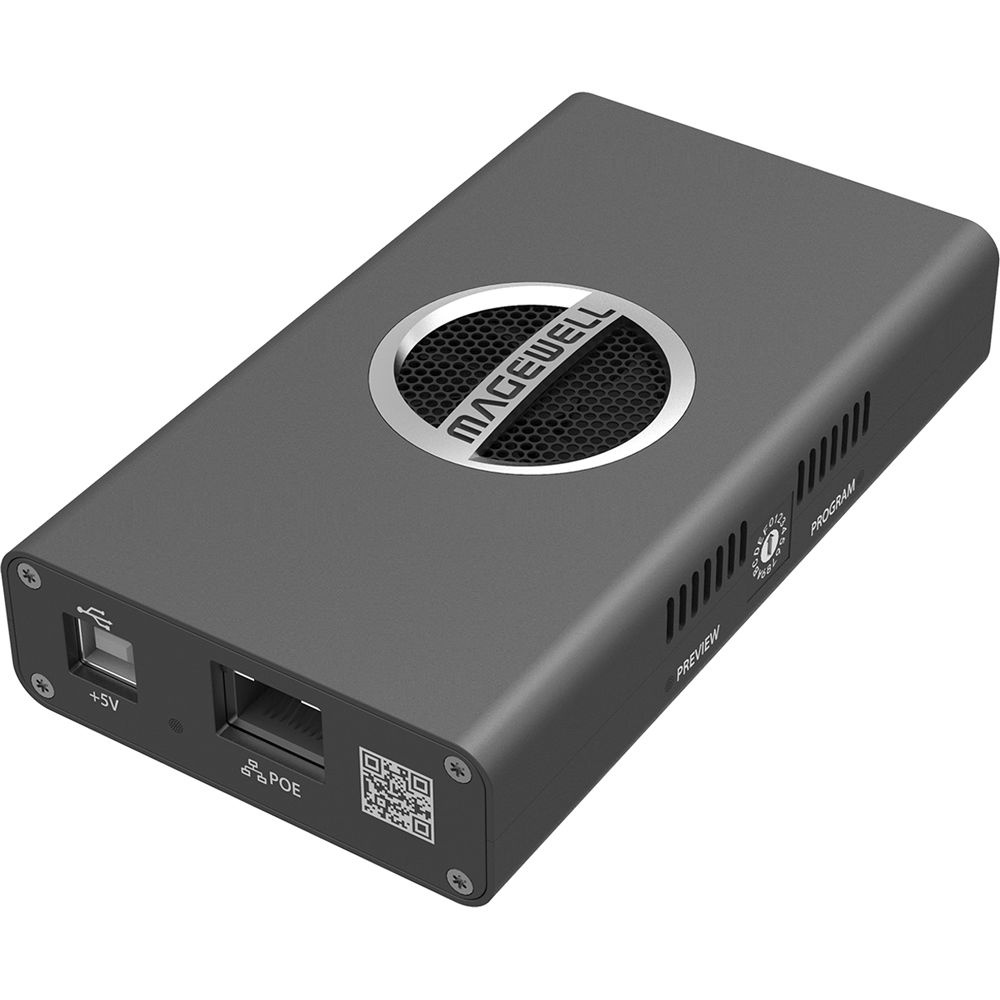

Convert HDMI video to an NDI stream with the Pro Convert HDMI Plus video signal converter from Magewell. Pro Convert features one HDMI input and one HDMI loop-through output with eight channels of embedded audio, and it supports HDMI input up to DCI 4K 4096 x 2160 at 60 fps. The RJ45 Gigabit Ethernet port supports encoded NDI output up to 2048 x 2160 8-bit 4:2:2 at 120 fps.

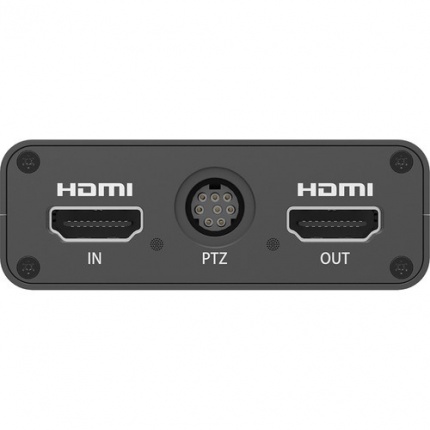

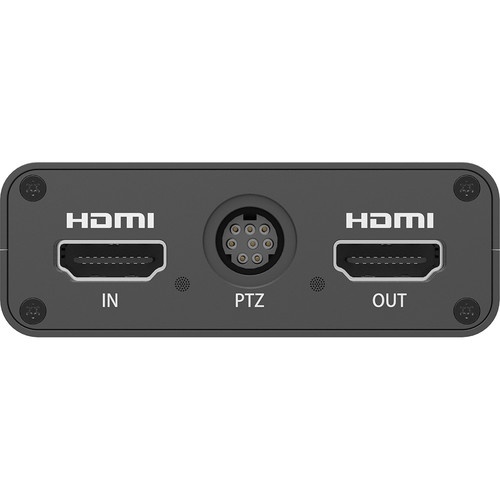

The HDMI loop-through allows you to view your input on a monitor while your NDI-encoded stream can be sent to a variety of NDI-compatible encoding or streaming applications such as OBS, XSplit, vMix, Wirecast, and others via Ethernet. The mini DIN-8 tally/PTZ port provides tally input to pass-through as well as for use with the unit's status LEDs. The LEDs also indicate power, output, and input signal status.

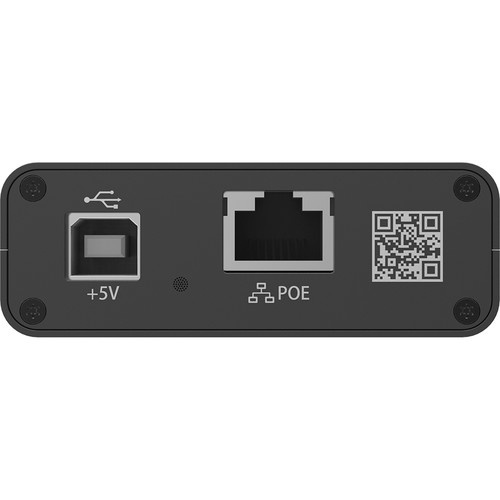

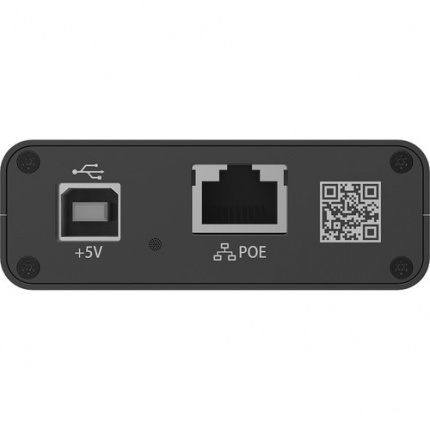

The unit is powered by a 5V power adapter connected to its USB 2.0 Type-B port or via PoE (Power over Ethernet) over its RJ45 port. The Pro Convert can be managed with a web UI to configure settings and to perform firmware updates via the USB port. A 1/4"-20 mounting thread allows you to mount the unit in a rack, bracket, or on a stand. Included with the Pro Convert are a USB cable, a 5V power adapter, a mini DIN-8 cable, and an L-bracket for mounting.
IN THE BOX
Magewell Pro Convert HDMI Plus
USB 2.0 Type-A to Type-B Cable
5 VDC Power Adapter
Mini DIN-8 to RS-232/DIN-8 Cable
L-Bracket
Limited 1-Year WarrantySupported Web Browser (tested)
Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and aboveSupported Software (tested)
OBS
XSplit
vMix
VidBlasterX
Wirecast
streamstar SW
mimoLive
Any other NewTek NDI-enabled encoding or streaming softwareInput Interfaces
HDMI
DVI-D 1.0
HDMI 1.4
Loop-through Interface
HDMI
DVI-D 1.0
HDMI 1.4Storage Interface
SD Card (functions to be developed)PTZ + TALLY Control
Mini-DIN–8 jackScrew Mounting Hole
¼–20 mounting holeNetwork Interfaces
10/100/1000Mbps Ethernet
IEEE 802.3af PoEUSB Interface
USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECMInput feature
Support for input video resolutions up to 4096x2160HDMI Specific Features
297MHz HDMI receiver
Adaptive HDMI equalizer
Support for customized EDID
Support for extraction of AVI/Audio InfoFrames
Full colorimetry support
Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input signals
Support for 8 channel IEC60958 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.NDI® Output Format
Support for 4:2:2 8-bit output
Support for up to 2048x2160 120fps
Support for NDI 4.1Video Processing Features
Video processing pipelines with 160 Mpixels/s
Video brightness, contrast, saturation, hue adjustment
Video de-interlacing
Top field only
Bottom field only
Video aspect ratio conversion
Auto or manual selection of output aspect ratio
Video color format conversion
Auto or manual selection of input color format & quantization range
Auto or manual selection of output color format, quantization range & saturation range
Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats
Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats
Support for Limited or Full quantization range
Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video mirror flipNDI® Source Name
Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’.
Support for setting board-index, from 0 to F, through on-board rotary switchFirmware Upgrade
Support for manual update using Web UILED Indicator

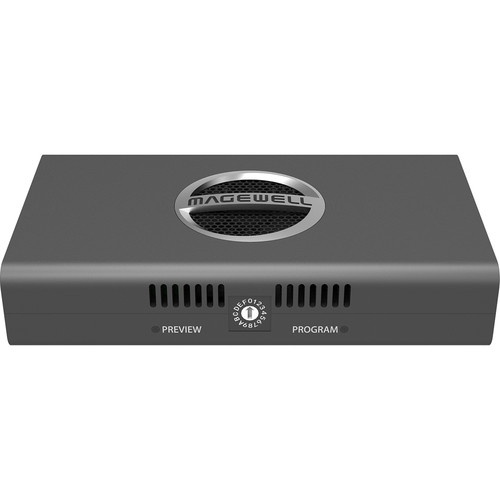

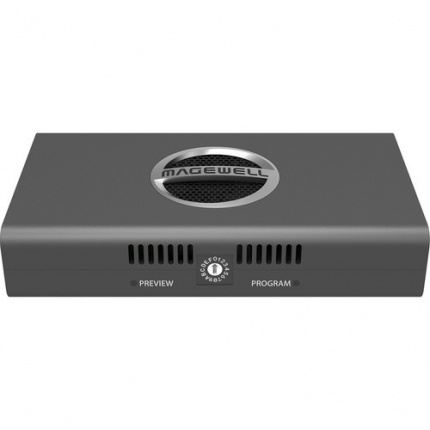

Status LEDs indicate:
the state of power supply: on/off
Tally: preview/program
the state of input signal: locked/unlocked
the state of loopthrough signal: loopthrough connected and signal detected/undetectedForm Factor
117.5mm (L) x 66.7mm (W) x 23.4mm (H)Accessories
USB 2.0 A to B Cable
5V/2.1A power adaptor
Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY)
L-bracket
LED matrix panel (optional)Power Consumption
5V max current: ~1.5A
Max power consumption: ~8WWorking Environment
Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
