Magewell Pro Convert HDMI 4K Plus HDMI to NDI

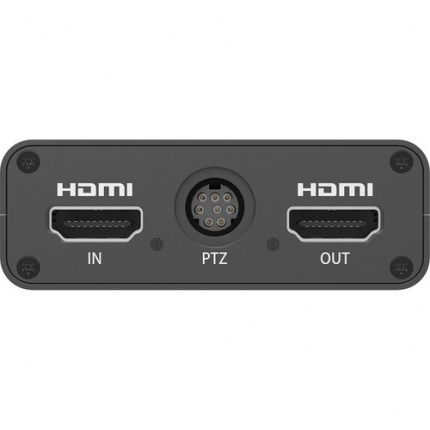

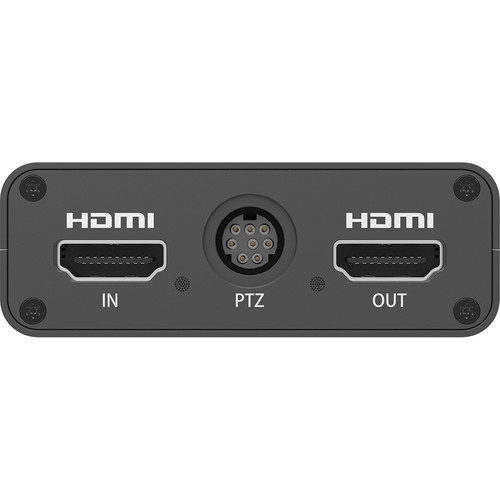

Convert a HDMI video to an NDI stream with the Pro Convert HDMI 4K Plus video signal converter from Magewell. Pro Convert 4K features one HDMI input and one HDMI loop-through output with eight channels of embedded audio, and it supports HDMI input up to DCI 4K 4096 x 2160 at 60 fps. The RJ45 Gigabit Ethernet port supports encoded NDI output up to 4096 x 2160 8-bit 4:2:2 at 60 fps.

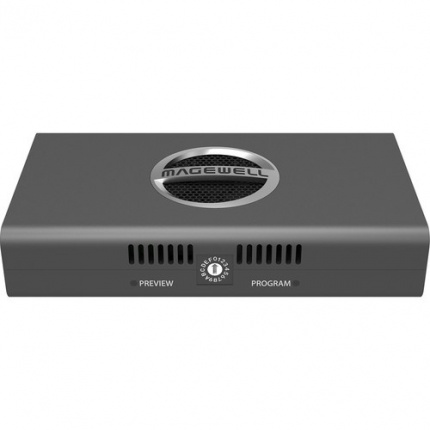

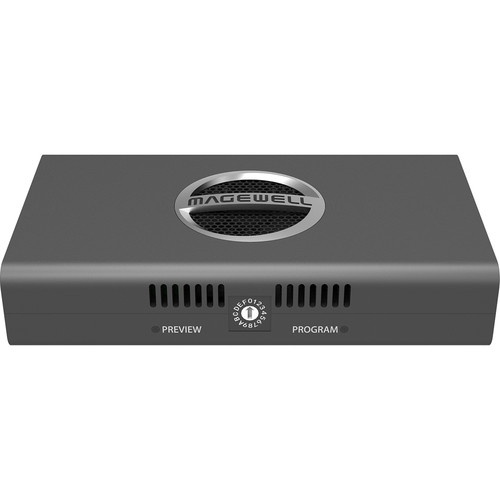

The HDMI loop-through allows you to view your input on a monitor while your NDI-encoded stream can be sent to a variety of NDI-compatible encoding or streaming applications such as OBS, XSplit, vMix, Wirecast, and others via Ethernet. The mini DIN-8 tally/PTZ port provides tally input to pass-through as well as for use with the unit's status LEDs. The LEDs also indicate power, output, and input signal status.

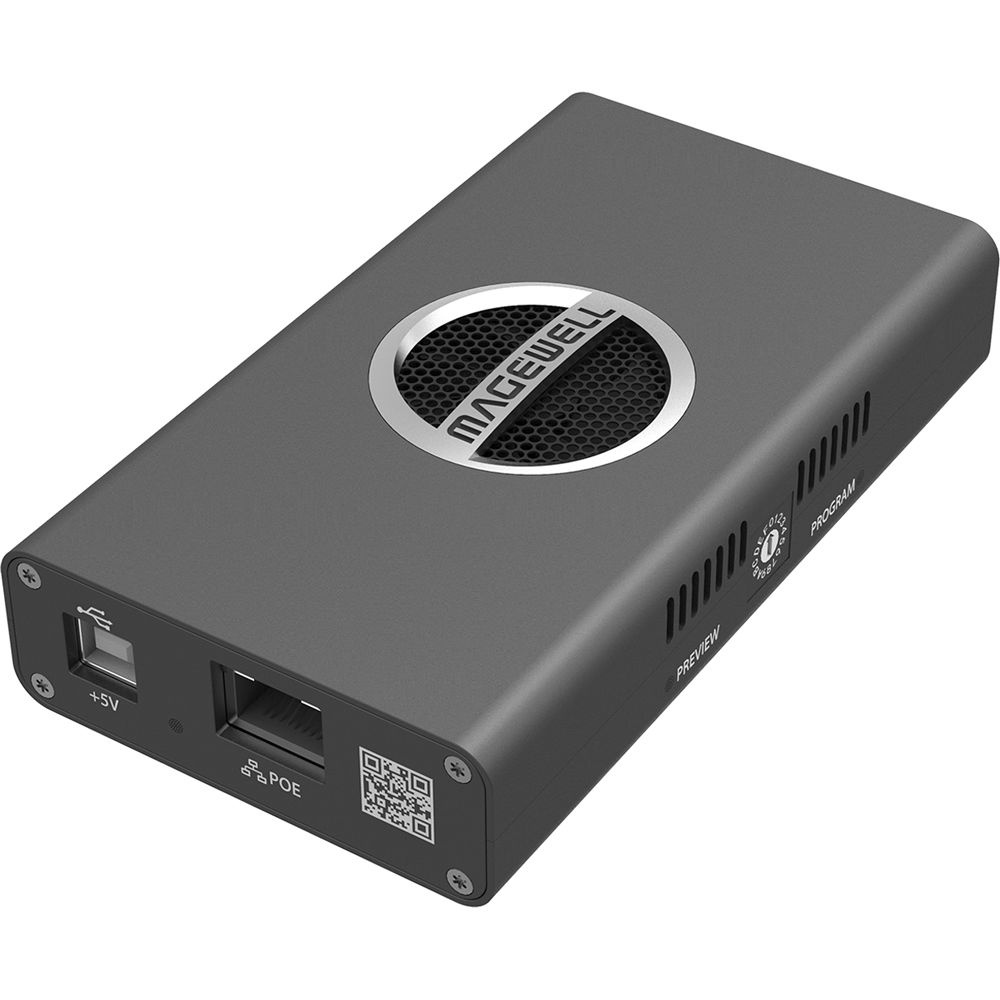

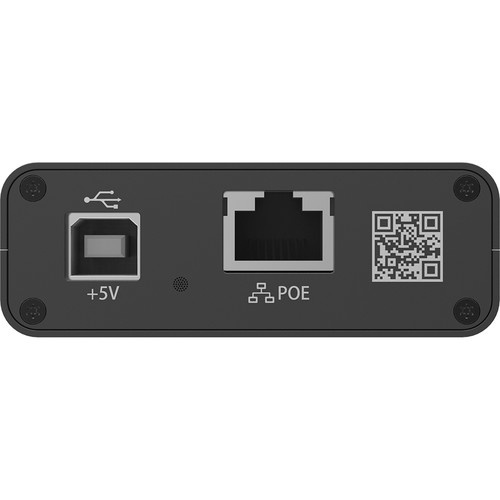

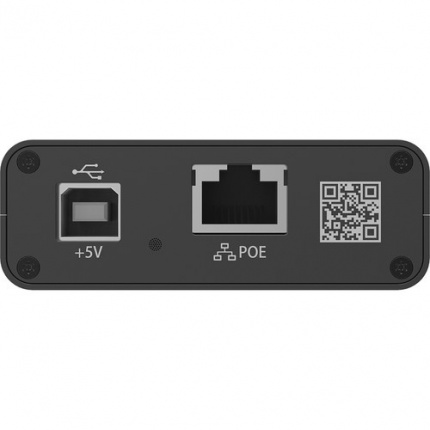

The unit is powered by a 5V power adapter connected to its USB 2.0 Type-B port or via PoE (Power over Ethernet) over its RJ45 port. The Pro Convert can be managed with a web UI to configure settings and to perform firmware updates via the USB port. A 1/4"-20 mounting thread allows you to mount the unit in a rack, bracket, or on a stand. Included with the Pro Convert are a USB cable, a 5V power adapter, a mini DIN-8 cable, and an L-bracket for mounting.

Included USB Capture Utility V3
Capture format setting
Audio volume control
Mirror and flip
EDID editing and importing
Firmware update
Export diagnose report
Other functions, such as cropping, deinterlacing, and device name setting

HDMI Specific Features
600 MHz HDMI receiver
Adaptive HDMI equalizer
Customized EDID
Extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
Full colorimetry support
Up to 4096 x 2160 4:4:4 60 fps input signals
2 channel ISC60958 audio streams
Extraction of audio formation information and channel status data
Extraction of video timing information
Extraction of 3D format information
Side-by-side half, top-and-bottom, and frame packing 3D mode

Analog Audio Features
Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack
Capture of analog audio via 3.5mm input jack (mic level)
Playback audio via 3.5mm headphone jack

Video Capture Formats
Capture resolutions up to 4096 x 2160
Capture frame rates up to 120 fps (actual capture frame rate can be limited by USB bandwidth and internal working frequency; typical capture frame rates on the Intel USB 3.0 controller are as follows: 1920 x 1080 YUY2 at up to 90 fps, and 3840 x 2160 NV12 at up to 30 fps)
NV12 and I420 4:2:0 8-bit (up to 4096 x 2160)
YUY2 and UYVY 4:2:2 8-bit (up to 4096 x 2160)
RGB24 and RGB32 4:4:4 8-bit (up to 2048 x 2160)
Default capture formats are YUY2 and NV12; more capture formats can be set using the included USB Capture Utility software

Video Processing Features
Video processing pipelines with 640 megapixels processing bandwidth
Cropping
Scaling
Frame rate conversion
Vertical flip and mirror

Video Deinterlacing
Weave
Blend top and bottom field
Top field only
Bottom field only

Aspect Ratio Conversion
Auto or manual selection of input aspect ratio
Auto or manual selection of capture aspect ratio
Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping, or Padding (Letterbox or Pillarbox)

Color Format Conversion
Auto or manual selection of input color format and quantization range
Auto or manual selection of capture color format, quantization range, and saturation range
Support for RGB, YCbCr 601, and YCbCr 709 color formats
Support for limited or full quantization range
Support for limited, full, and extended gamut saturation range
Multiple Devices On One Computer
Connect multiple units to one system
Set the device serial number as the device name shown in the system using the USB Capture Utility

SDK
USB Capture SDK provide functions including signal status extraction, capture configuration, etc.

IN THE BOX

Magewell Pro Convert HDMI 4K Plus
USB 2.0 Type-A to Type-B Cable
5 VDC Power Adapter
Mini DIN-8 to RS-232/DIN-8 Cable
L-Bracket
Limited 1-Year Warranty
