UwMic9 Kit2
UHF Wireless Lavalier Microphone System

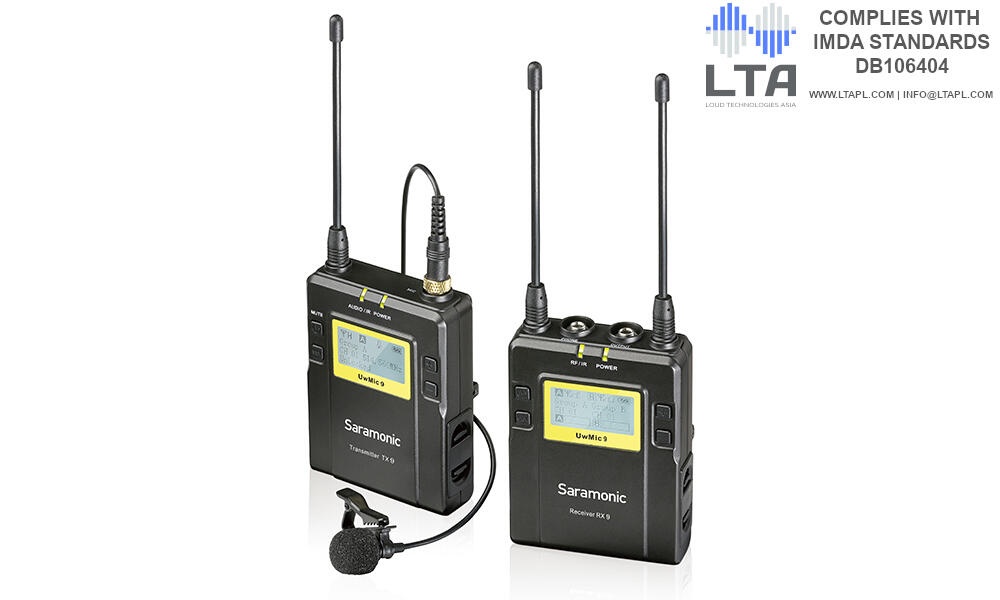

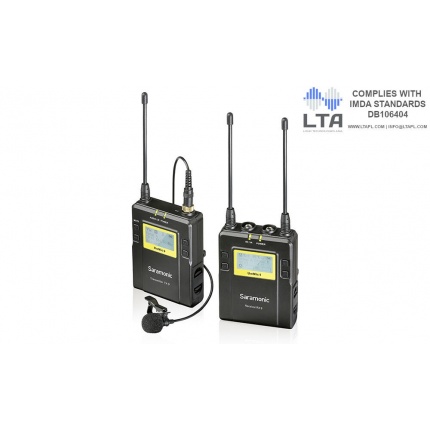

The Saramonic UwMic9 Kit2 UHF Wireless Lavalier Microphone System provides stable, interference free audio in portable, compact and low cost package. UwMic9 RX9+TX9+TX9 could support two transmitters and one receiver working simultaneously. It is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, ENG, providing dependable audio broadcasting and recording.The system includes a camera-mountable wireless receiver, two wireless body-pack transmitters and clip-on lavalier mics.
Receiver (x1)

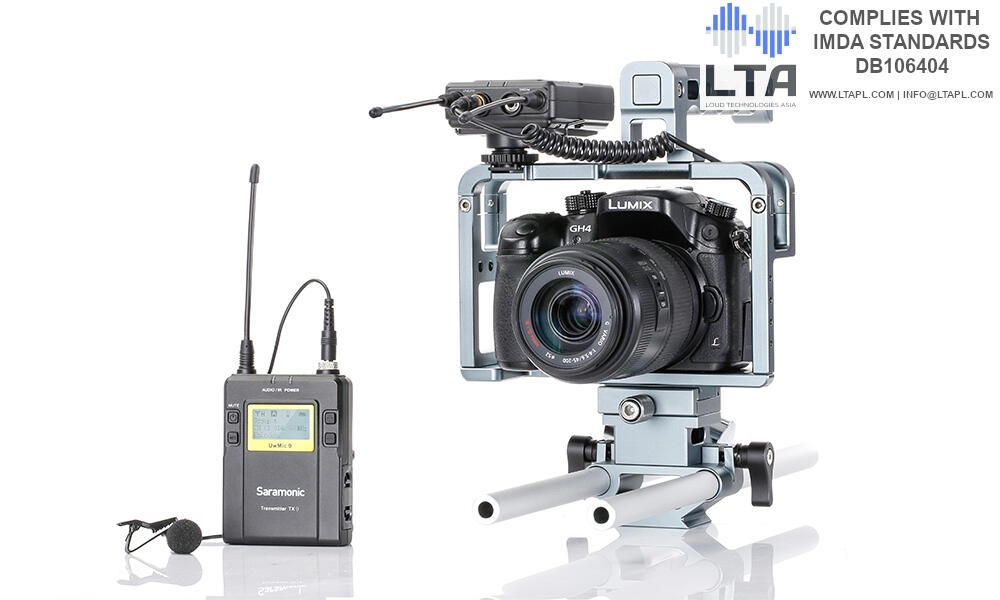

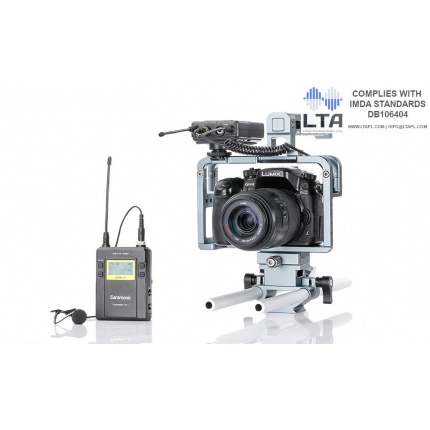

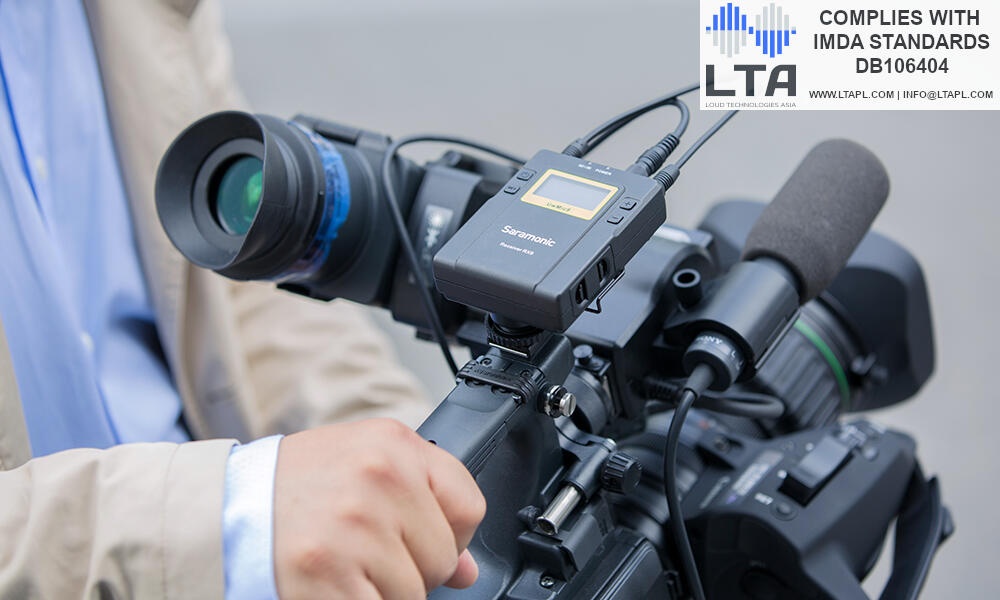

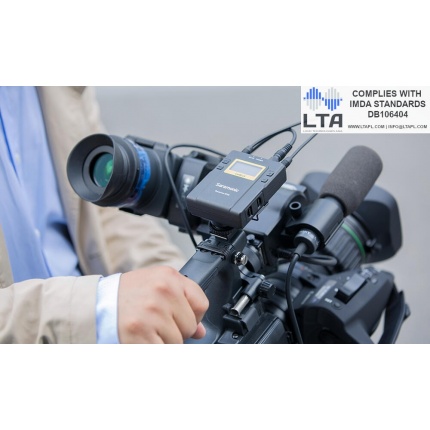

The Saramonic UwMic9 RX9 is a camera-mountable integrated wireless receiver. It features a wide switching RF bandwidth, an easy-to-read LCD display and infrared synchronization between transmitter and receiver.
Equipped with an auto-scan function, the RX9 can automatically search for an available transmission frequency. The headphone jack enables real-time monitoring or the receiver via headphones, especially useful for cameras that lack a monitor output.

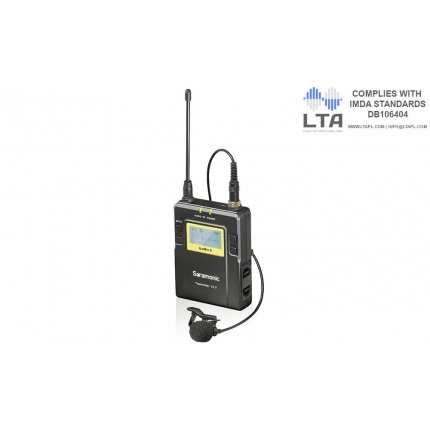

Transmitter (x2)

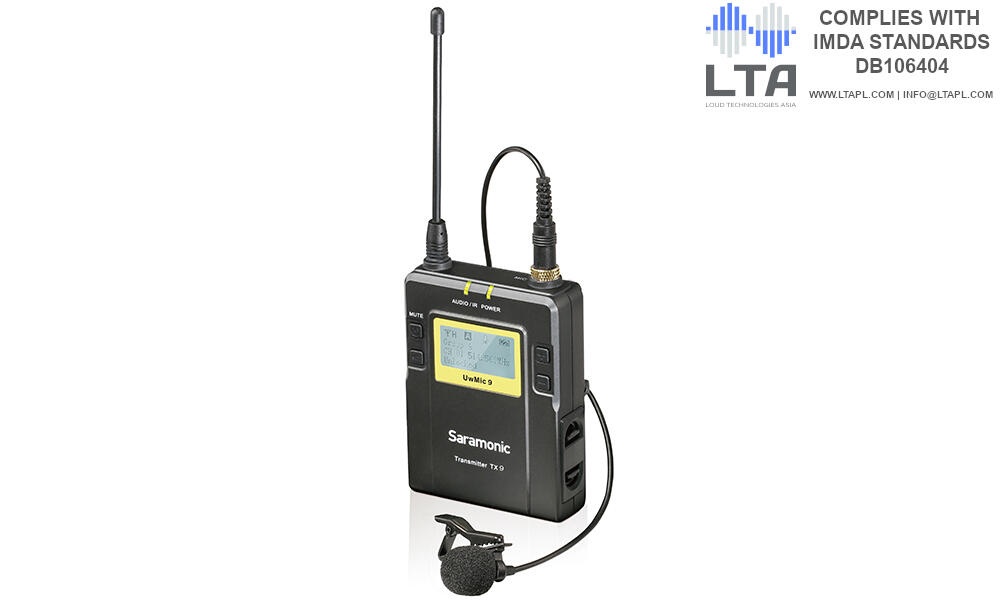

This compact transmitter UwMic9 TX9 employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP-type mic input. The RF power output can be switched among high, middle and low.
Approved for use in Singapore, Complies with IMDA standards (Loud Technologies Asia Pte. Ltd. Registration DB106404)

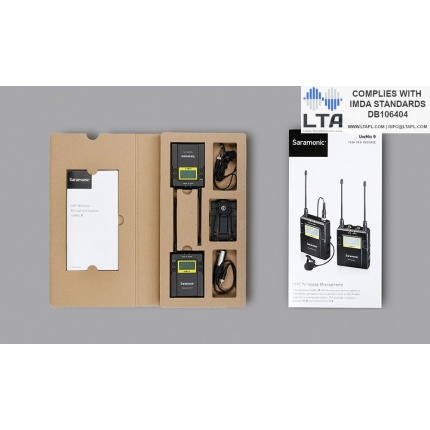

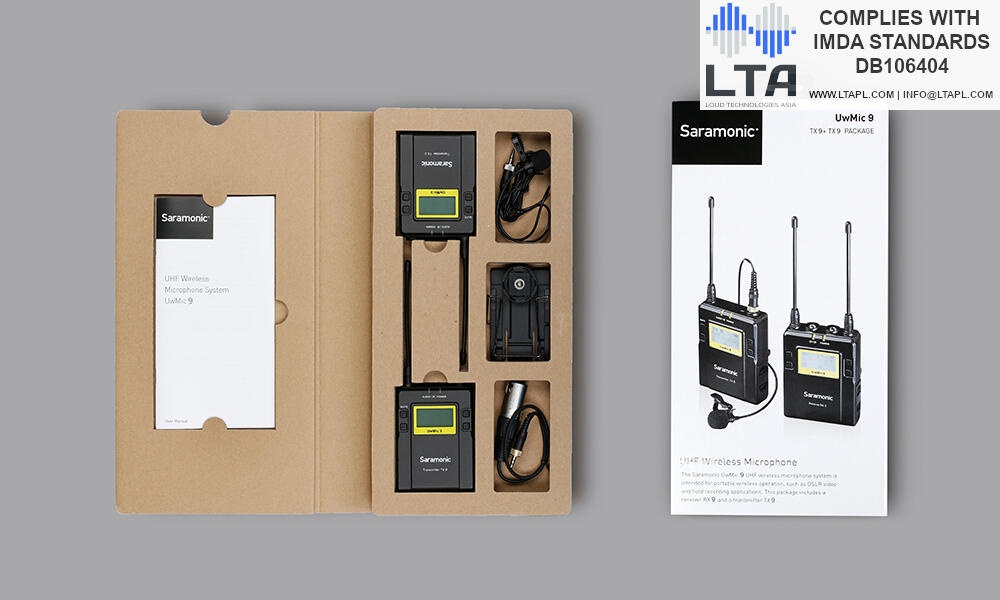

In the box:
Saramonic Dual-Channel Receiver for UWMic9 System
Saramonic TX9 96-Channel Digital UHF Wireless Bodypack Transmitter with Lavalier Mic (514 to 596 MHz)
Shoemount Adapter
Mic Clip
Windscreen
3.5mm to 3.5mm Coiled Locking Output Cable
3.5mm to XLR-M Locking Output Cable
2 x Belt ClipsTransmitter
Channels: 96
Groups: A or B
Oscillator Type: PLL Synthesizer
Frequency Range: 514 MHz – 596 MHz
Reference Deviation: +/- 5 kHz (-60dBV, 1kHz input)
Signal to Noise Ratio: 70 dB or more
Spur Suppression: -60 dB
Voice Delay: 12 ms
Antenna: 1/4λ wire antenna
Audio input connector: TX9:3.5mm mini jack
HU9: noneTX-XLR9: XLR-3-11C type (female)
Reference audio input level: -60dBV (MIC input, 0dB attenuation)
Distortion: 0.5% or less
Weight: TX9: Approx. 211.4g (excluding batteries)
HU9: Approx. 338.2g (excluding batteries)TX-XLR9: Approx. 138g (Excluding batteries)
Battery: Two AA size batteries
Dimensions: TX9: 170.9 x 63.5 x 30.0 mm
HU9: 254.0 x 52.0 x 52.0 mm
TX-XLR9: 105.5 x 43 x 34.7 mm
Operating temperature: 0℃ to 50℃
Storage temperature: -20℃ to +55℃Receiver
Channels: 96
Groups: A or B
Oscillator Type: PLL Synthesizer
Audio output connector: 3.5mm mini jack
Antenna: 1/4λ wire antenna
Audio output level: -60dBV
Headphone output level: 30mW (16Ω)
Receiver frequencies: 514 MHz – 596 MHz
Signal to Noise Ratio: 70 dB or more
Voice Delay: 12 ms
Reference Deviation: +/- 5 kHz (-60dBV, 1kHz input)
Frequency response: 40Hz to 18kHz (+/-3dB)
Distortion: 0.5% or less
Spur Suppression: -60 dB
Weight: 218.7g (Excluding batteries)
Battery: Two AA size batteries
Dimensions: 170.9 x 63.5 x 30.0 mm
Operating temperature: 0℃ to 50℃
Storage temperature: -20℃ to +55℃
