ProMS2 | Buy Radial Engineering direct from Singapore's Authorized Distributor for warranty assurance.

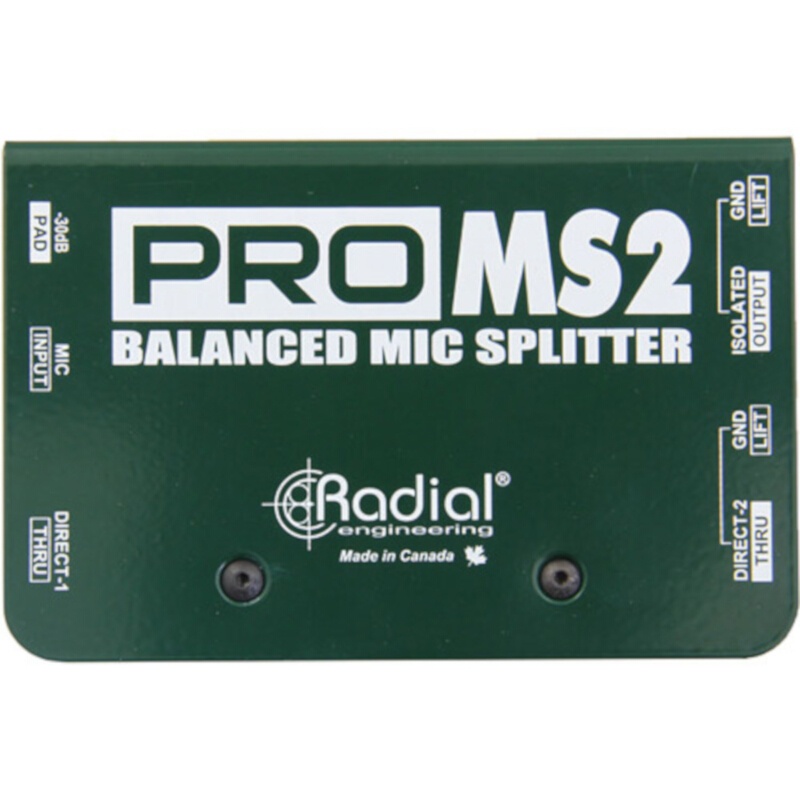

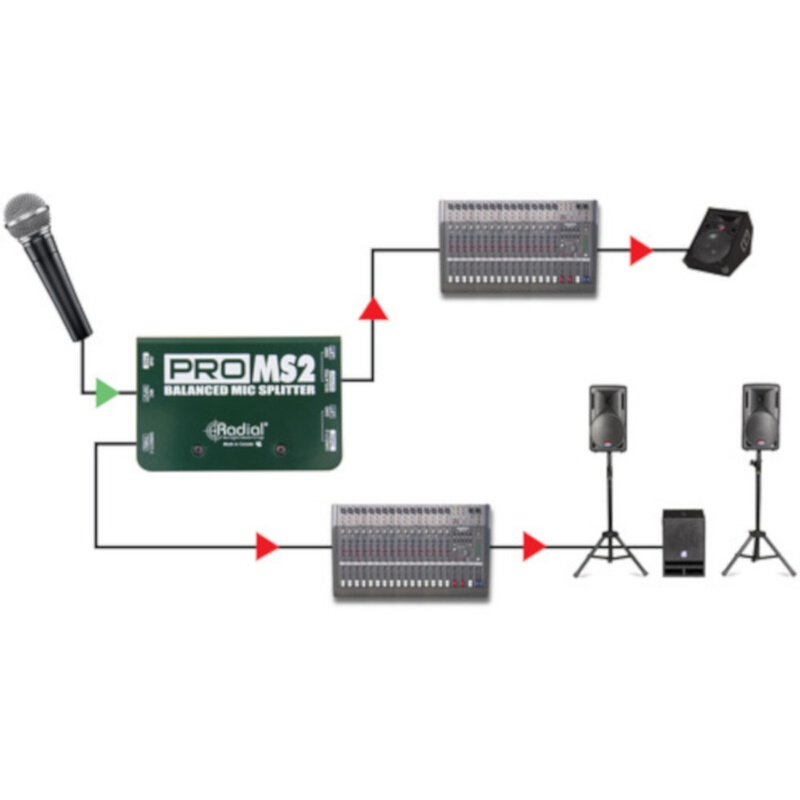

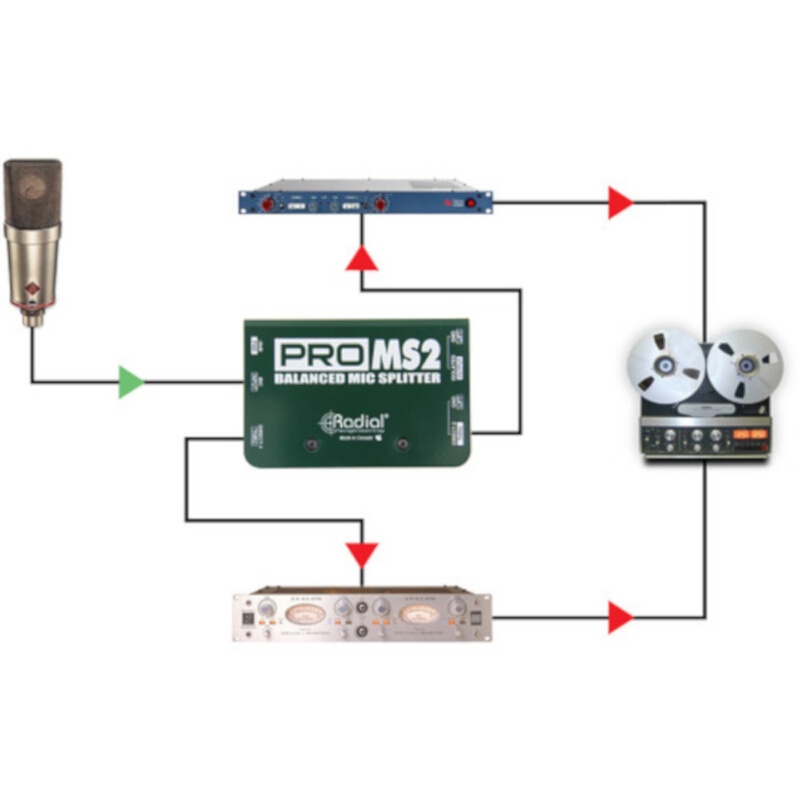

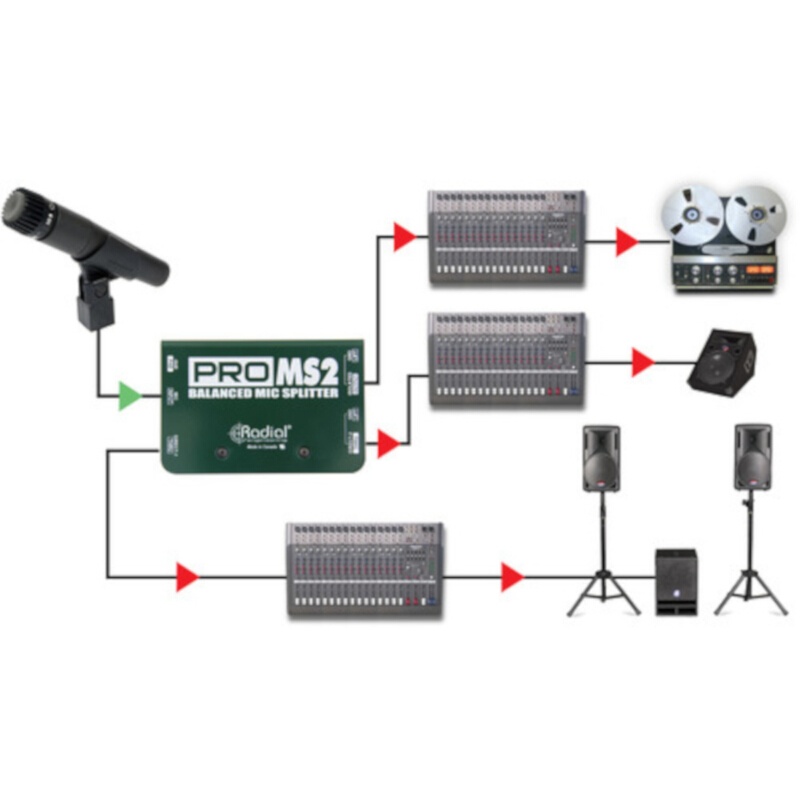

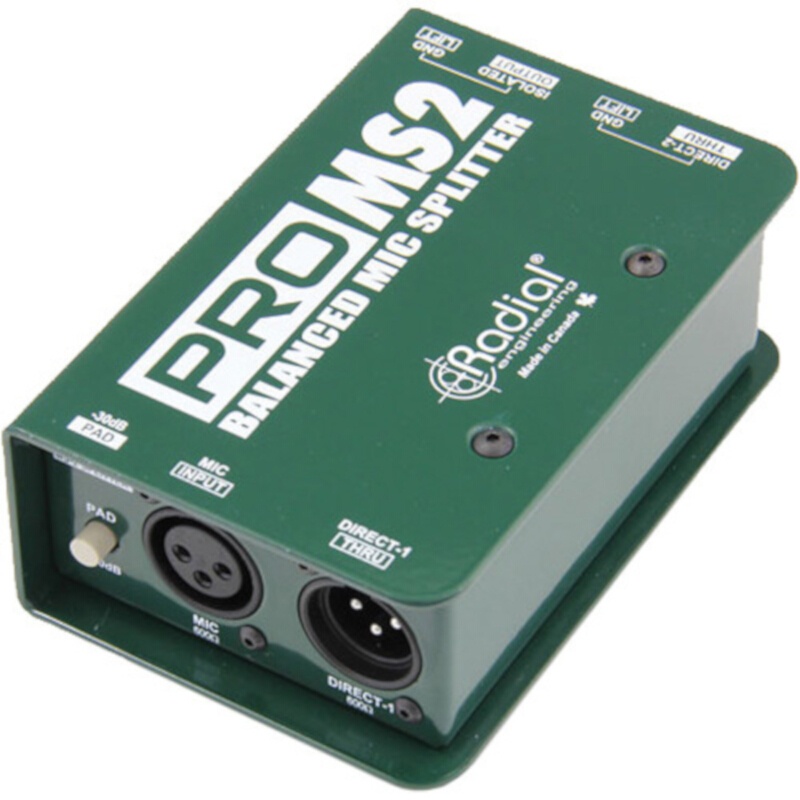

Allowing you to send a single microphone or DI signal to up to 3 separate destinations, the ProMS2 Passive Microphone Splitter from Radial Engineering can be used in the studio to send a mic to multiple preamps for auditioning and live to send one source to multiple mixers or to supply a broadcast feed. It is a passive device, therefore requiring no power for operation. The Eclipse ET-MS10 transformer is designed to provide a flat frequency response while its RF filtering helps keep your signal interference free. The device features 14-gauge steel construction to stand up to live use.
FEATURES:
High performance Eclipse transformer for optimal signal transfer
Equipped with direct, isolated and auxiliary outputs for 3-way split
May be rack-mounted in the J-Rak for multi-channel use
Rugged 14-gauge steel construction for added durability and shieldingRadial Engineering ProMS2 Specifications:
Audio Circuit Type Passive
Input Impedance 2.5 KΩ, unbalanced
Output Impedance 140 KΩ, balanced
Frequency Response 20 Hz to 20 kHz (+0 dB -1 dB)
Gain -0.5 dB
Dynamic Range >140 dB
Total Harmonic Distortion 0.001%
Noise Floor -140 dB
Maximum Input +26 dBu
Phase Deviation 1° @ 20 Hz
Intermodulation Distortion 0.003%
CMRR -115 dB at 60 Hz
Transformer Eclipse ET-MS10
Pad -30 dB
Ground Lift Disconnects pin-1 at both XLR outputs
XLR Configuration AES standard pin-1 ground, pin-2 (+), pin-3 (-)

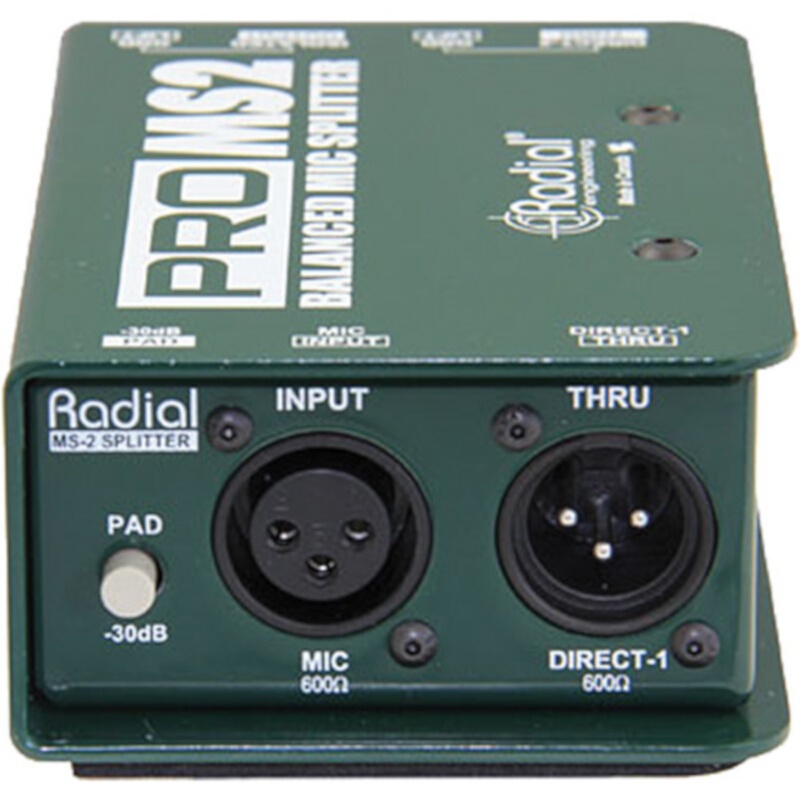

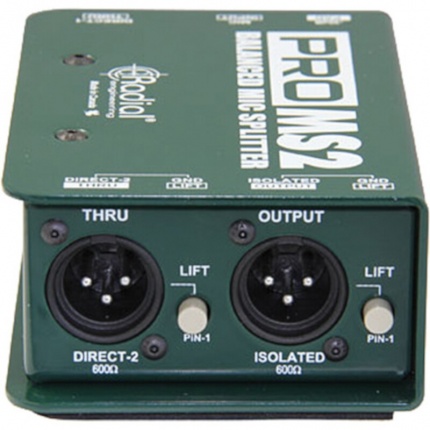

Connectors XLR-F in, XLR-M direct; direct-2; isolated outputs
Construction 14 gauge steel chassis & outer shell
Power Passive, no power required
Operating Conditions For use in dry locations only between 41 to 104°F (5 to 40°)
Dimensions (W x H x D) 3.3 x 5.0 x 2" (84 x 127 x 48 mm)
Weight 1.55 lb (0.7 kg)
