JS-3 | Buy Radial Engineering direct from Singapore's Authorized Distributor for warranty assurance.

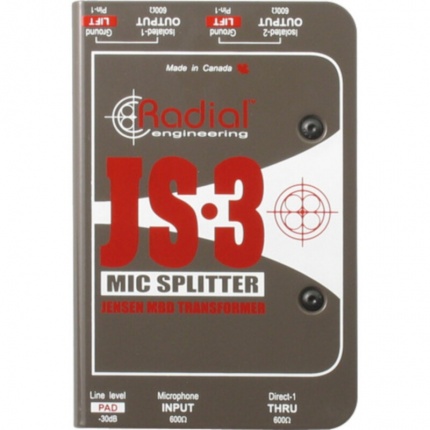

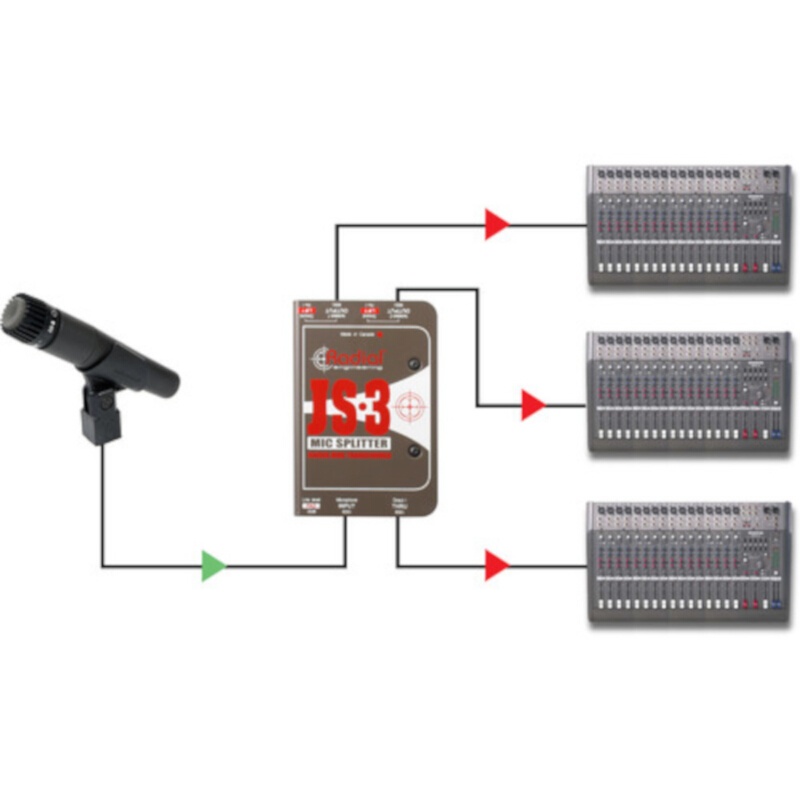

The JS-3 from Radial Engineering is a ruggedly built, compact unit that splits a single microphone input signal into three outputs for driving three mic preamps or mixers from one source. The JS-3 also features a -30dB pad for accepting line-level signals, making it extremely versatile. The unit has 100% isolation with high-quality Jensen transformers, providing clean audio and minimizing the buzz caused by ground loops.

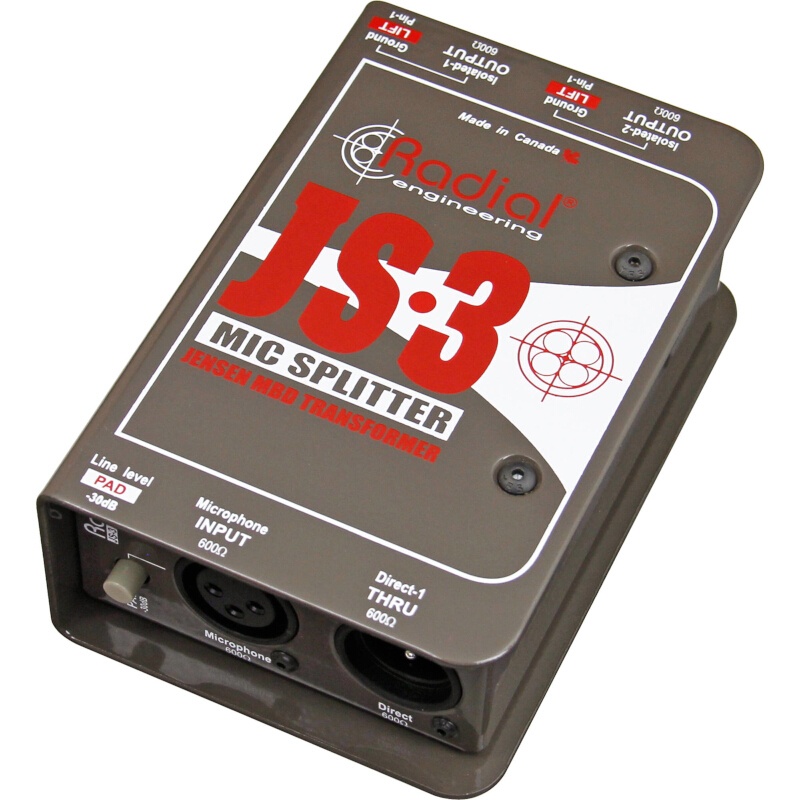

The JS-3 features a bookend design that protects the connectors and switches. Crafted from 14 gauge steel, the unit is virtually indestructible. You can also rack-mount up to eight units with an optional J-Rak from Radial Engineering.
FEATURES:
Compact, Rugged Design
Splits a single mic or line-level signal into three outputs
High-quality Jensen transformers offer great-quality sound and provide 100% isolation to protect against hum from ground loops
Uses standard XLR connectors
-30dB padRadial Engineering JS-3 Specifications:
Input Impedance 578 ohms
Insertion Loss 1.2dB
Voltage Gain -1.2dB
Frequency Response 10Hz - 80kHz
Total Harmonic Distortion (THD) 0.05% or Less
Max Input Sound Level (SPL) +2dBu
Common Mode Rejection Ratio 130dB (60Hz)
96dB (3kHz)
Output Impedance 254 ohms

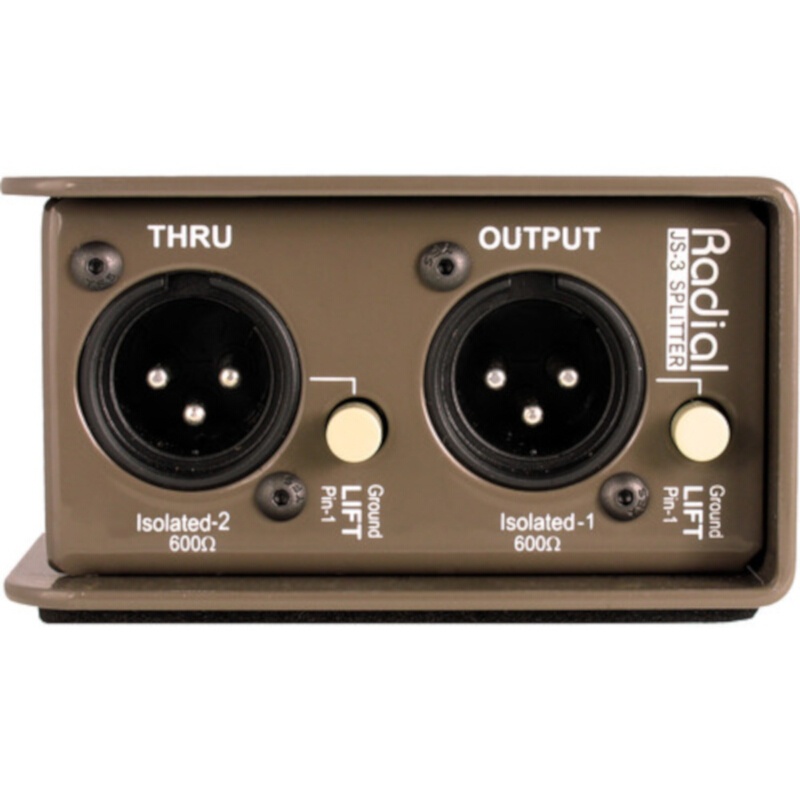

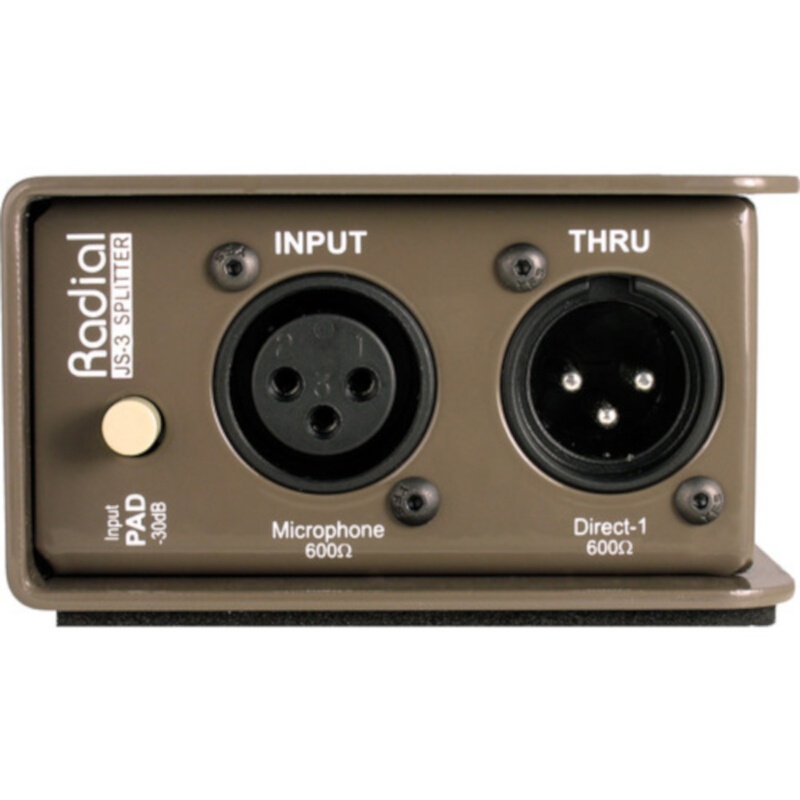

Connectors 1 x 3-Pin XLR Female Input
1 x 3-Pin XLR Male "Thru" Direct Output
2 x 3-Pin XLR Male Isolated Direct Outputs with Lift Switches
Controls 1 x -30dB Pad Switch
2 x Lift Switches
Dimensions (HxWxD) 2 x 3.25 x 5" (51 x 83 x 127 mm)
Weight 1.95 lbs (0.9 kg)
