Presenter | Buy Radial Engineering direct from Singapore's Authorized Distributor for warranty assurance.

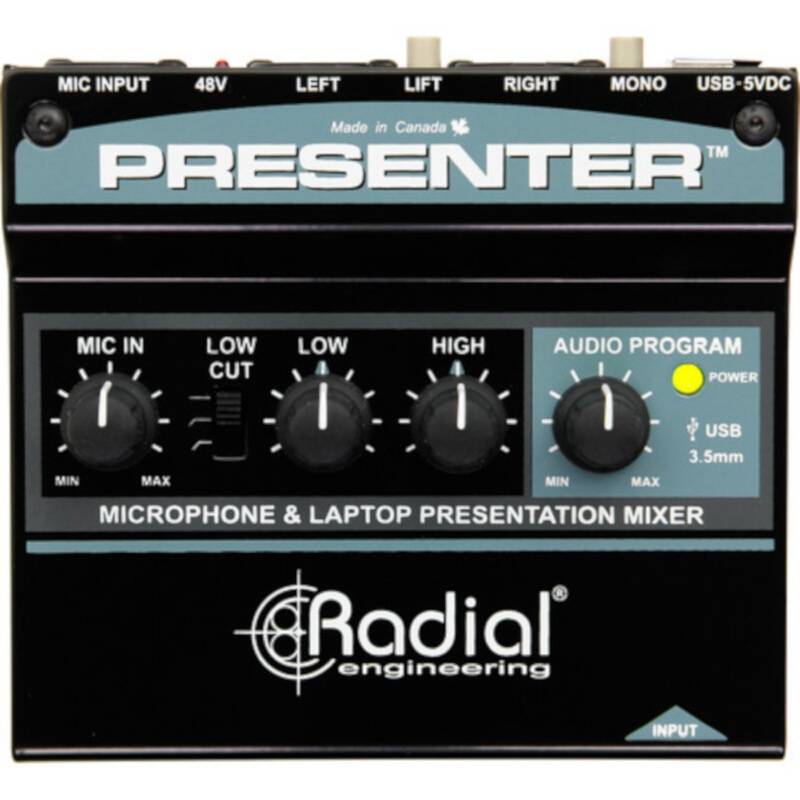

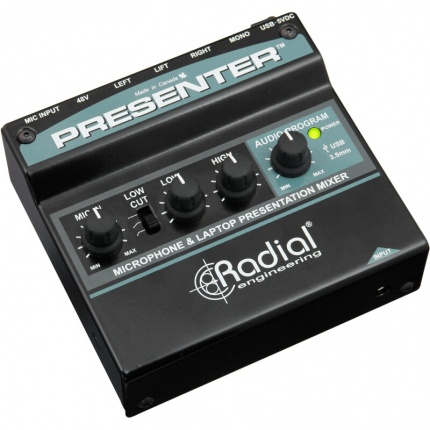

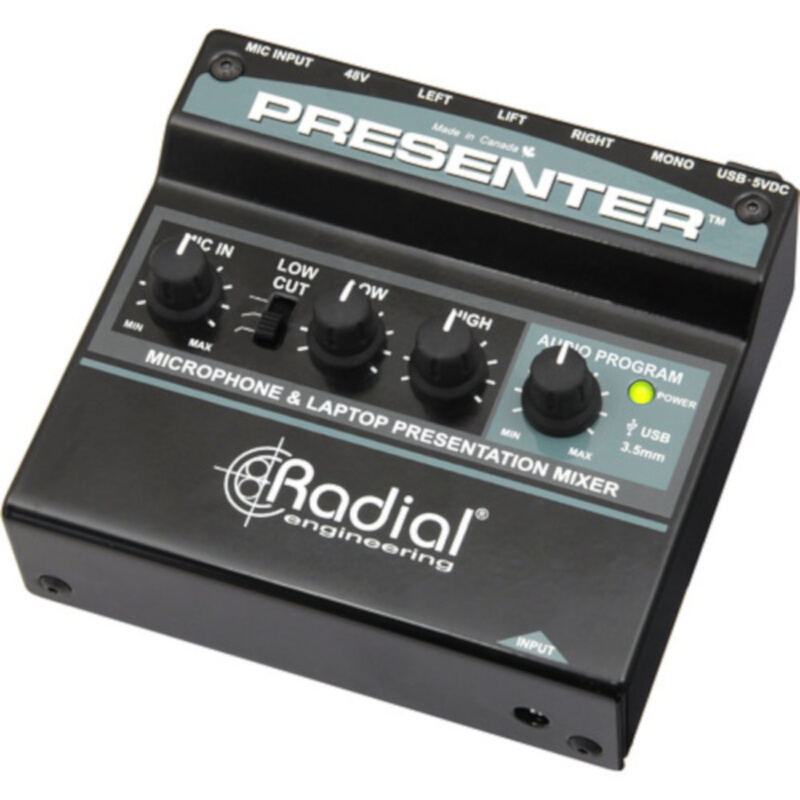

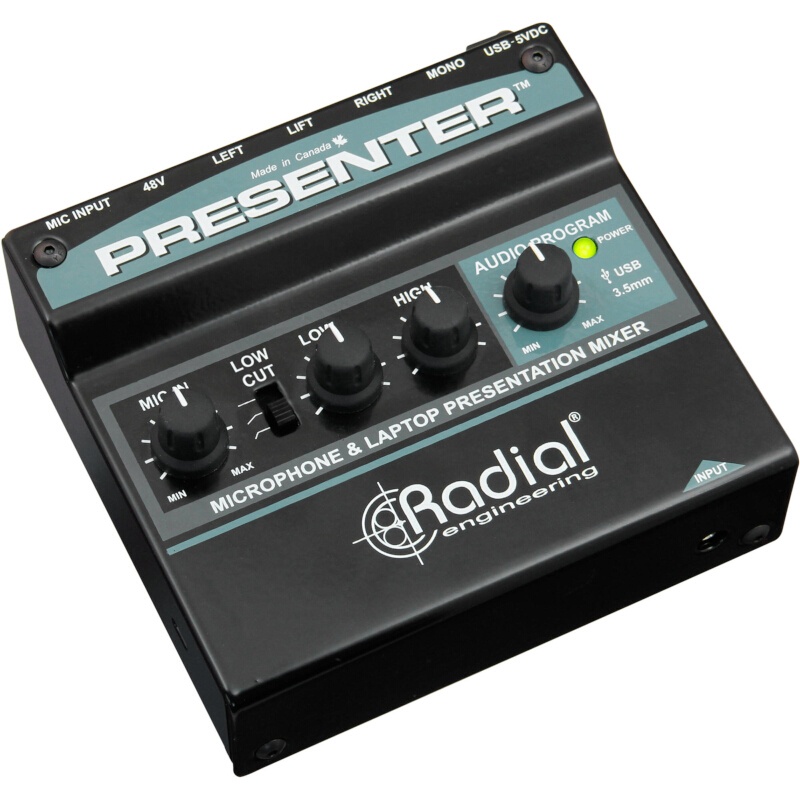

Think of the Radial Engineer Presenter as a DI box for your microphone, laptop, and media player, all in one 14-gauge steel chassis. With an XLR input, a 3.5mm TRS input, and digital conversion over USB, all of this is possible. Once you’re hooked up to the Presenter, signal can be equalized and balanced so that your voice always cuts over your program material.

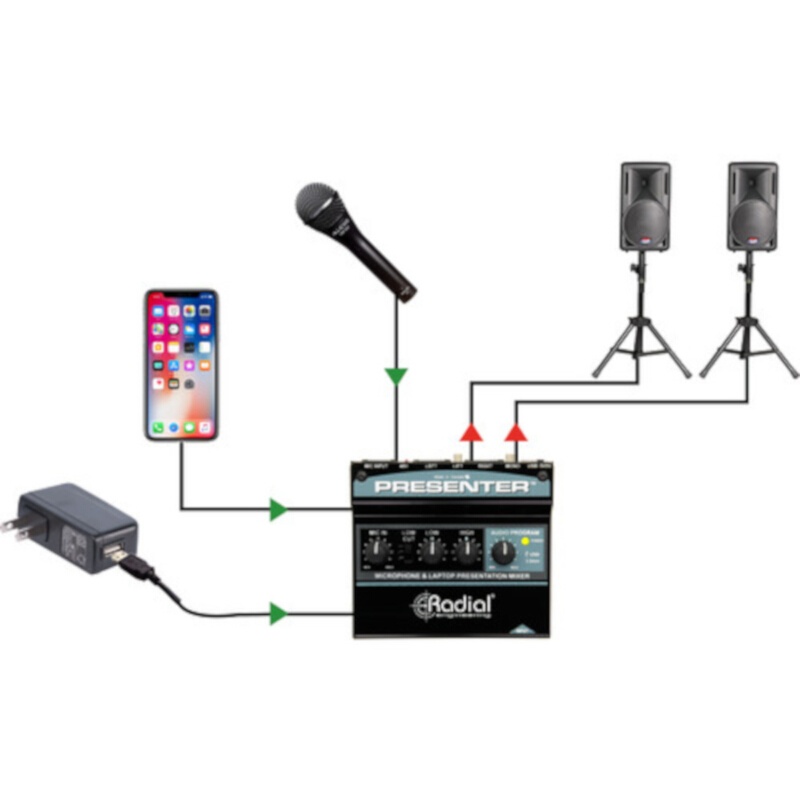

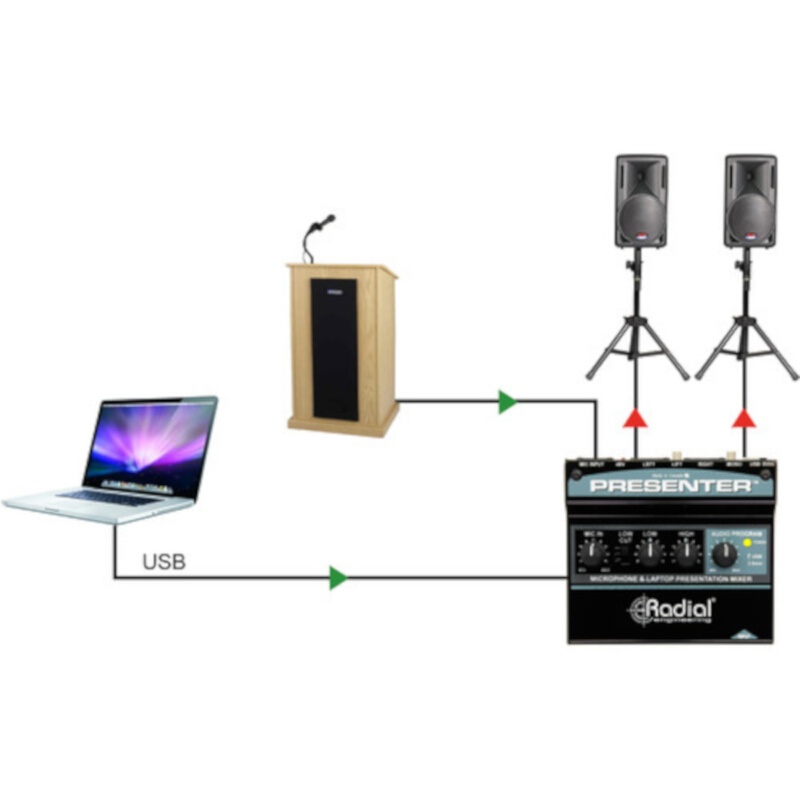

Dual XLR outputs take your audio to mixers and PA systems either in stereo or summed to mono, depending on how you set the device. The Presenter can be powered with a separately-available power supply, or by your laptop over USB. Please note that you can only run a laptop or a 3.5mm input at any one time.
FEATURES:
Balanced XLR mic input
USB type-B input for playing back audio from a laptop
3.5mm TRS input for audio playback from external devices such as smartphones, tablets, and media players
Ground-lift switch on XLR input
3-position low-cut filter
Balanced stereo XLR outputs
2-knob EQ to tailor low and high frequencies to your liking
Mono button sums the left and right outputs to mono
48V phantom power switch for powering condenser microphones
Audio program-level control for volume of the USB and 3.5mm input
Military-grade PCB for noise-free performance
Glass-filled nylon housing provides isolation and durability
Nickel contacts
Class-A circuitry for minimal negative feedback and neutral tone
14-gauge I-beam steel constructionRadial Engineering Presenter Specifications:
Audio Circuit Type Active preamplifier circuit with digital to analog input conversion
Channels 2 x
Frequency Response 20 Hz to 20 kHz (-0.4 dB / 0 dB)
Noise Floor -84 dBu
Dynamic Range +91 dBu
Maximum Input +7 dBu
Gain +52 dBu
Intermodulation Distortion 0.003% at 0 dBu
0.01% at -10 dBu
0.03% at -20 dBu
Total Harmonic Distortion 0.004% at 20 Hz
0.004% at 1 kHz
0.004% at 10 kHz
Phase Deviation -28° at 20 Hz
-1° at 1 kHz
+2° at 10 kHz
Input Impedance 10 kOhms
Output Impedance XLR Output: 2.74 kOhms
Insertion Loss 0 dB

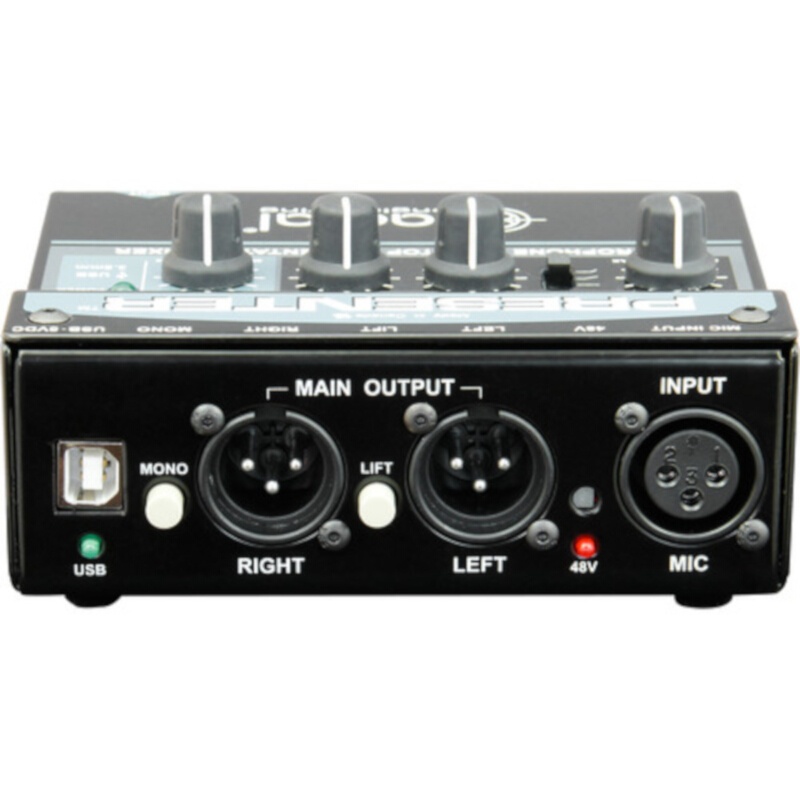

I/O 1 x XLR input
1 x 3.5 mm TRS input
1 x USB 2.0 type-B input
2 x XLR outputs
Ground Lift Main output
LED Indicators Power, 48 V, and USB
Power 5 V, USB
Power Supply Radial Engineering R15DC-US Power Supply (available separately)
Construction 14-gauge steel chassis
Finish Durable powder coat
Dimensions Not specified by manufacturer
Weight Not specified by manufacturer
