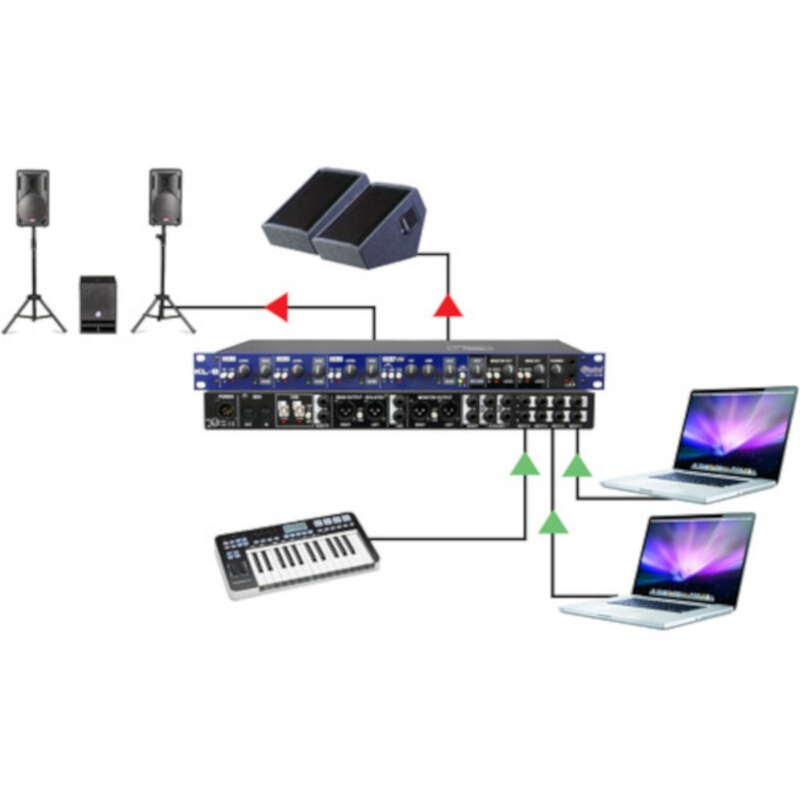

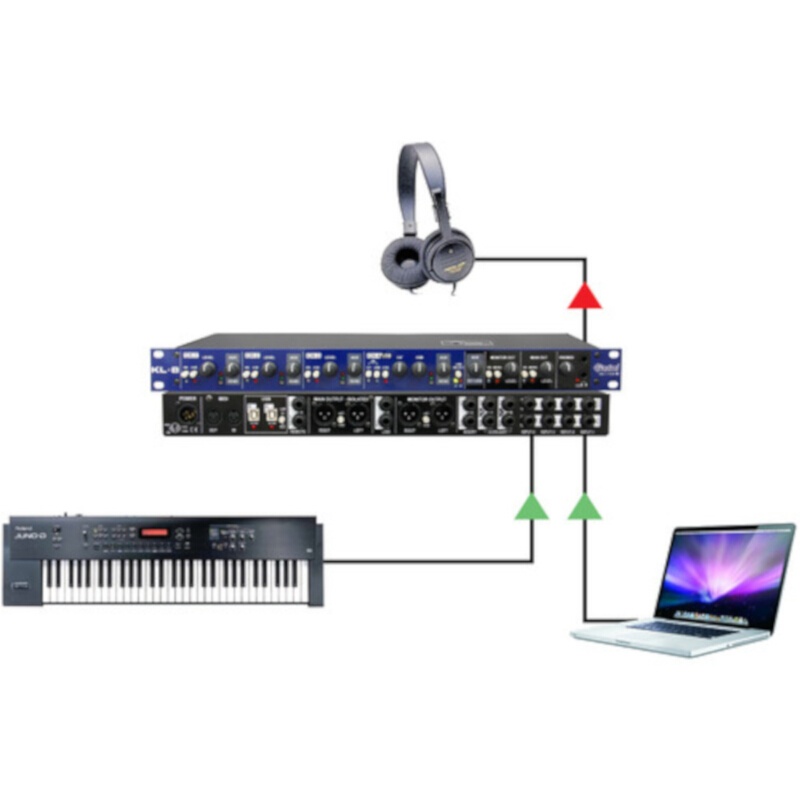

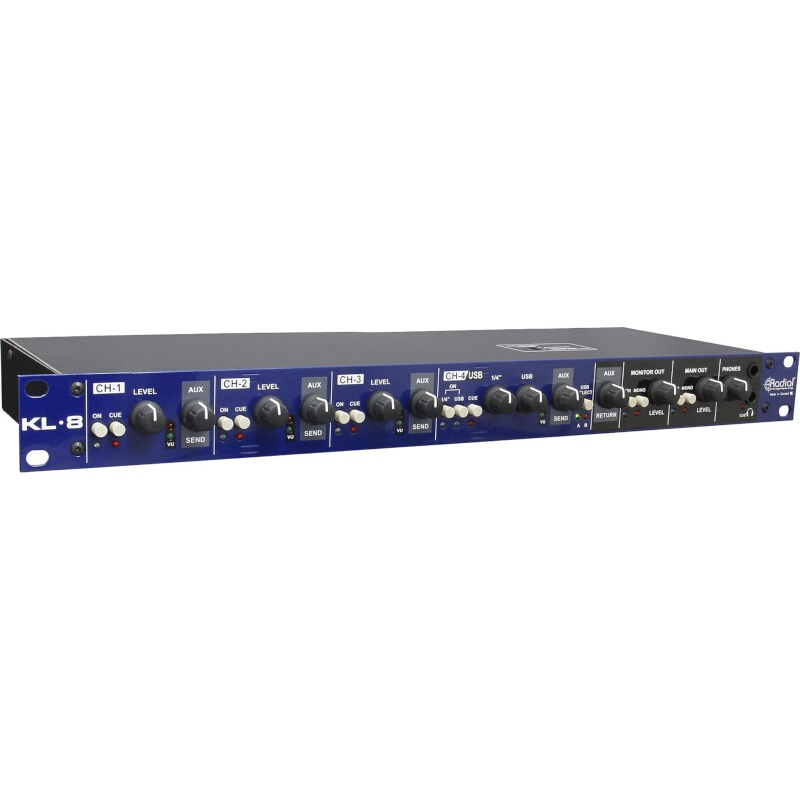

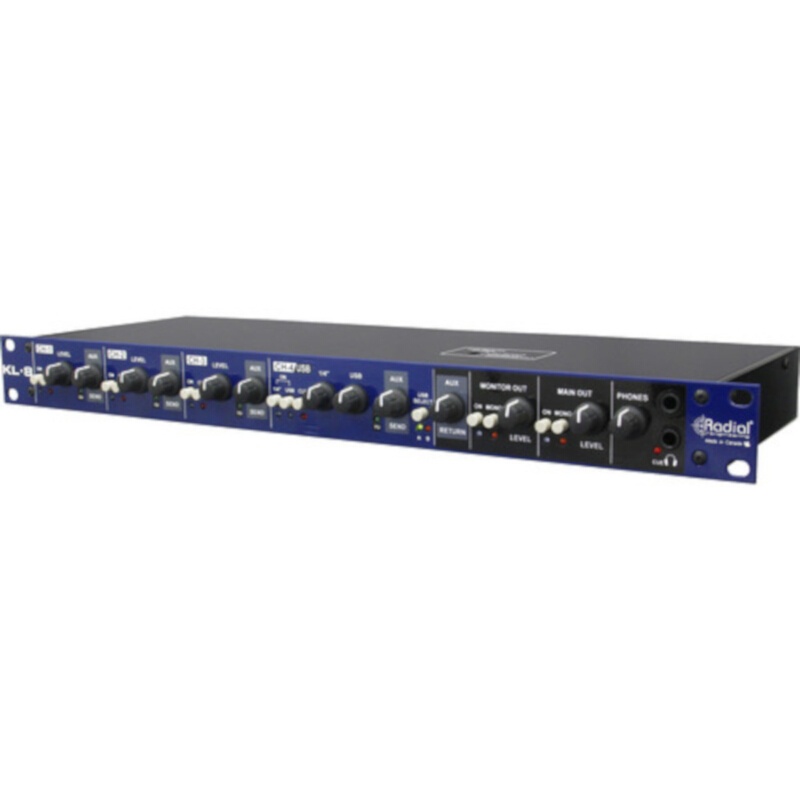

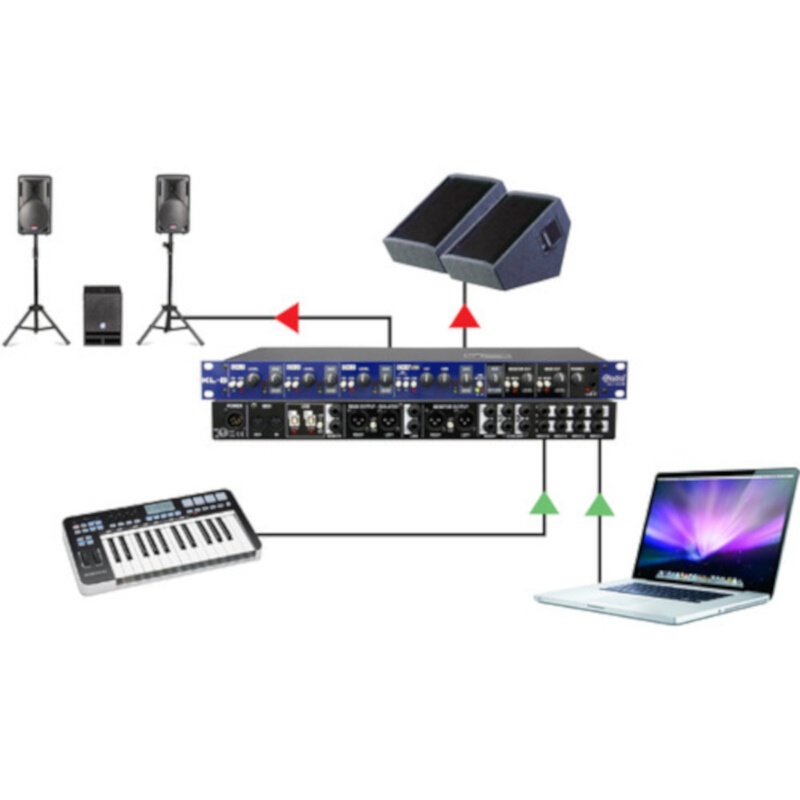

This Rackmount keyboard mixer with USB audio interface can connect to four keyboards in mono or stereo, each with their own volume control and LED indicators.The KL-8 Rackmount Keyboard Mixing Station from Radial can connect to four keyboards in mono or stereo, each with their own volume control and LED indicators. It can be used to bring them in and out of the signal path to keep noisy keyboards muted until they are needed for live stage and theater applications.

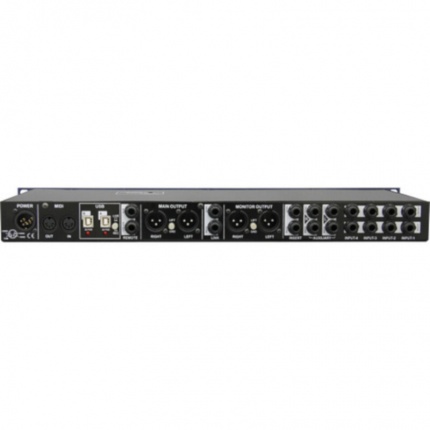

The KL-8 is a single rack unit designed to route analog 1/4" inputs and outputs, effects, 3-pin XLR main, 3-pin XLR monitor outputs, and 1/4" TRS headphone outputs to provide easy access in one location. It is also a powerful digital interface with MIDI and USB connections that make it easy to control a laptop soft-synth utilizing high-quality 24-bit/192 kHz digital audio converters.

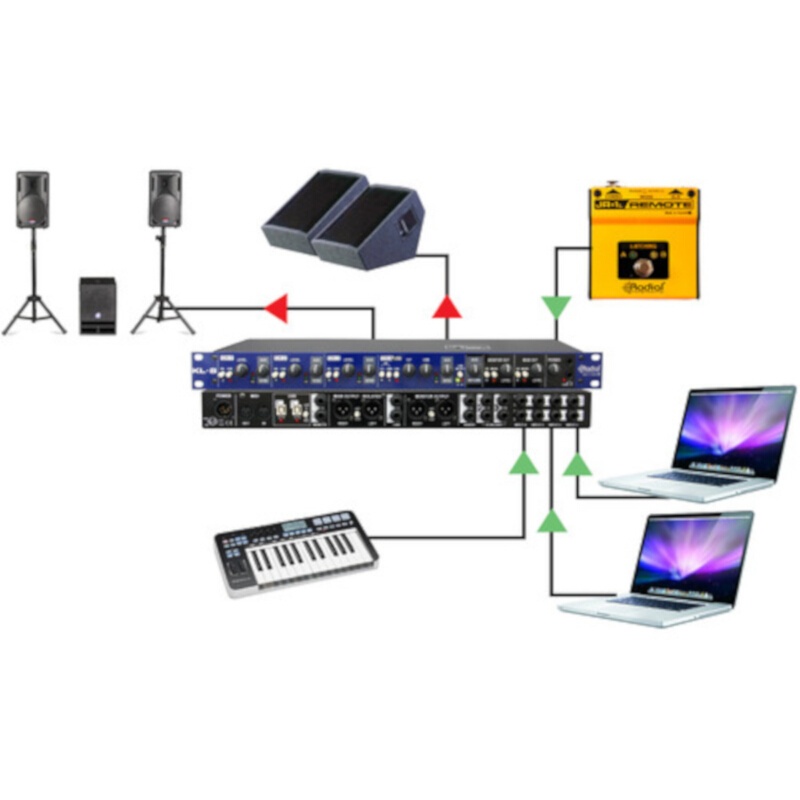

Other features include: stereo insert points for a single volume pedal to control all your keyboard outputs and redundant USB connections to have a backup laptop plugged in and ready to go. This is useful for keyboard players who control playback for backing tracks during performances. Additionally, a link feature can be used to connect multiple units together and expand the KL-8 inputs to suit larger keyboard rigs.
Radial Engineering KL-8 Specifications:
Analog Inputs 4 x 1/4" / 6.3 mm Inputs: Maximum: +18 dBu (+16 dBV)
Input Impedance: 14.3 to 20 kOhms (Input Level Max / Input Level Min)
Input Gain Range: -80 to +18 dB
Auxiliary Input 2 x 1/4" / 6.3 mm
Maximum Input: +11 dBu
Input Impedance: 33 kOhms
Input Gain Range: -80 to +25 dB
Auxiliary Output Maximum Output: +18 dBu
Output Impedance: 2.2 kOhms
Input Gain Range: -80 to +2 dB
Outputs Connectivity Main Outputs: 2 x 3-Pin XLR
Monitor Outputs: 2 x 3-Pin XLR
Maximum Output: +28 dBu
Output Impedance: 1.1 kOhms
Input Gain Range: -80 to +18 dB
Dynamic Range: 90 dB Referred to +28 dBu, 102 dB A-Weighted
THD+N: 0.01% (100 Hz to 20 kHz @ 0 dBu) (-80 dB)
Headphone Outputs 2 x 1/4" / 6.3 mm TRS Jacks
Maximum Output: 0.4 W into 15 Ohms (8.3 VRMS Max)
Output Impedance: 51 Ohms
Input Gain Range: -80 dB to +10 dB
USB Bit Depth / Sample Rate: 24-Bit / 44.1, 88.2, 176.4, or 192 kHz
Frequency Response All Outputs: 20 Hz to 20 kHz ±0.5 dB
Power 100 to 240 VAC Locking 4-Pin XLR
Dimensions (L x W x D) 19.0 x 7.0 x 1.6" / 48.3 x 17.8 x 4.1 cm
Weight 6.25 lb / 2.83 kg
