RX5-UF | Up-fire Recoils are designed for post-production suites where monitors are often placed directly on a desk top. These introduce a more acute 10º angle that better directs the tweeter to the listening position. The up-fire angle can also be handy for smaller near field monitor when placed alongside larger ones when sharing the same shelf.

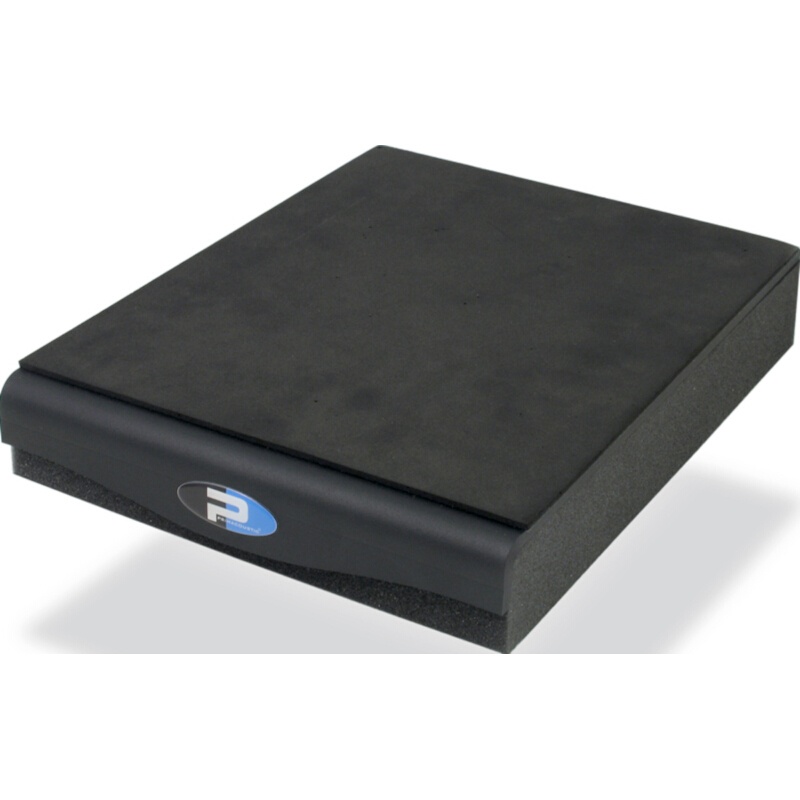

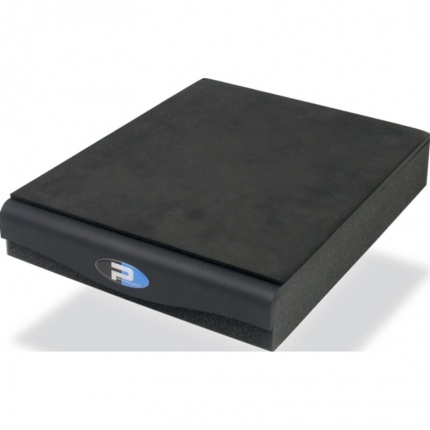

RX5-UF from Primacoustic is a speaker decoupling device that helps improve monitor speaker performance. Although there are several manufacturers providing a similar kind of solution, the RX5-UF is different in that it also takes into account what is known as speaker recoil.
All isolation pads help speaker performance by eliminating the transmission of speaker-cabinet vibration to the surface they are resting on. This is because of the additional sympathetic vibration of the support medium (stands, meter bridge, etc.) that is produced when using non-decoupled speakers, smears stereo imaging and can cause unwanted frequency boost or cut.
Where the RX5-UF differs is in preventing back to front speaker cabinet motion (recoil), the result of a speaker coil pushing energy forward. This is more prominent with larger speakers and when monitoring at high volumes and can actually be exacerbated by the use of plain foam pads, given the latter's inherent pliability. By containing this motion, the RX5-UF allows the speaker to deliver significantly greater detail at all frequencies, with tighter bottom end and improved depth of field.

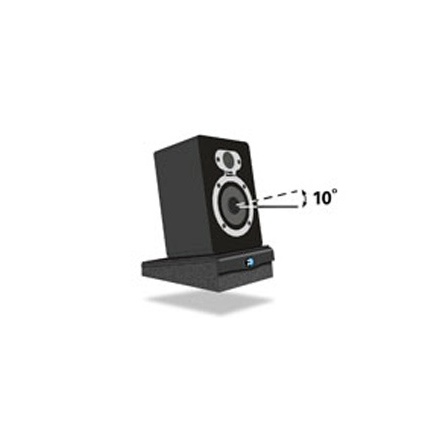

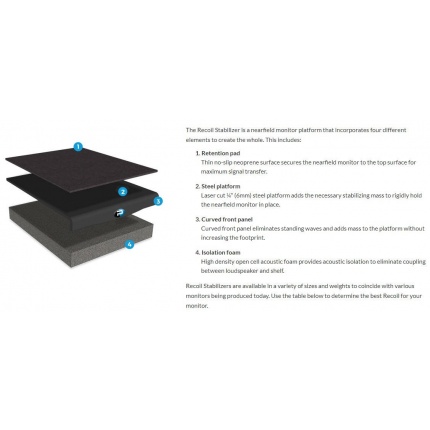

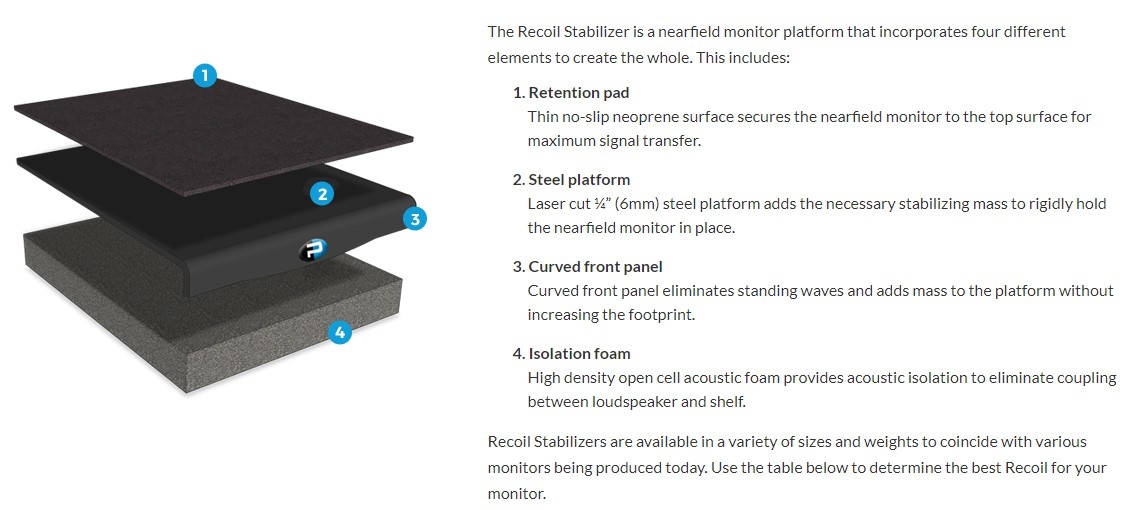

The Recoil Stabilizer is constructed from a high-density urethane base onto-which is added a heavy laser-cut steel plate, covered by a non-slip neoprene top. The steel plate introduces significant mass to the structure and serves to stabilize the speaker. The RX5-UF is constructed to allow the speaker to sit on the pad at a 10° angle, pointing up, and "firing" in an upward direction.
FEATURES:
- Speaker isolation system, providing both decoupling and reducing "recoil" effect
- Sculpted to allow for 10° "up fire" functioning
- Improves transient response
- Widens the sound field for better imaging
- Tightens up the bass response for greater accuracy
In the Box
- Primacoustic RX5-HF - Recoil Stabilizer (Single)
- 90-Day Warranty Against Manufacturing Defects
Primacoustic RX5-UF Specifications:
Dimensions (WxD)7.5 x 9.5" (190 x 241mm)
