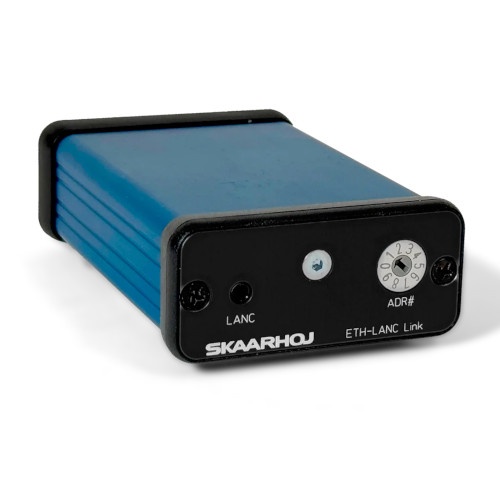

The SKAARHOJ ETH-LANC Link V2 is a compact Ethernet-to-LANC protocol converter designed for remote control of LANC-compatible cameras over IP networks. It enables operators to control essential camera functions such as zoom, iris adjustment, and record start/stop from SKAARHOJ controllers and shading systems, making it ideal for broadcast, live production, streaming, and remote camera installations. The unit supports Power over Ethernet (PoE) for simplified deployment and integrates seamlessly into SKAARHOJ’s Link IO ecosystem.
In the Box:
ETH-LANC Link V2 Interface
12V Power Supply
Micro-USB Cable
Getting Started Guide / Documentation
General
Product Type: Ethernet-to-LANC Camera Control Interface
Model Number: ETH-LANC-LINK-V2
Platform: SKAARHOJ Link IO
Country of Origin: DenmarkCamera Control
Control Protocol: LANC
Additional Compatibility: Canon RC-V100 Protocol
Supported Functions:
Record Start/Stop
Zoom Control
Iris Control
Basic Camera Functions
Compatible with SKAARHOJ Shading ControllersNetwork & Connectivity
Network Interface: 100 Mbps Ethernet
Communication Method: UDP
Power over Ethernet: IEEE 802.3af
Camera Connector: 2.5 mm LANC Port
Service Port: Micro-USB (Firmware Updates & Manual IP Setup)Power
Power Input: 12V DC
Power Connector: 5.5 mm × 2.1 mm DC Jack
PoE Support: IEEE 802.3af / 802.3at CompatibleEnvironmental
Operating Temperature: 0°C to 40°C
Operating Humidity: Up to 90%
Storage Temperature: -20°C to 45°C
Storage Humidity: Up to 90%
