Shure SVX14/PGA31 Wireless Headset System
DESCRIPTION

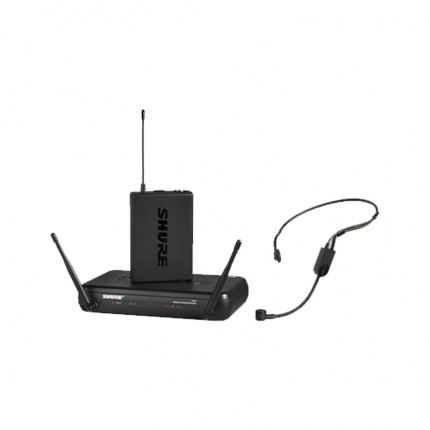

Includes SVX4 Diversity Receiver, and SVX1 Bodypack Transmitter with PGA31 Headset Microphone.
The PGA31 performance headset microphone for general, speaking and performance use is a permanently-biased electret condenser microphone. Engineered to provide maximum versatility and reliable performance in a wide array of conditions at an affordable price, the PGA31 is compatible with any Shure wireless bodypack systems with TA4F (TQG) connectors. Available as an included option for many systems, it also makes a viable replacement option for use in existing systems. The wearable design offers improved comfort and a secure fit for hands-free operation in any situation, while the unidirectional (cardioid) pickup pattern provides excellent off-axis rejection for higher gain-before-feedback when using a stage monitor.
FEATURES
SVX 1 Transmitter
Transmitter Type: Bodypack
Dimensions: 108 mm height X 64 mm width X 19 mm depth
RF Output Power: 10
Battery, endurance: 10 h
Weight: 90 gSVX 4 Receiver
Up to 8 selectable channels
Up to 4 compatible systems
Antenna Switching Diversity
Adjustable Squelch Level
Mic / Line Switch
2 Audio Output:
1/4" Connector
XLR Connector
Available with Handheld and Lavalier system packages
PGA31 Headset
Wearable wireframe headset fits securely for multi-instrumentalists and active performers
Permanently-charged electret condenser element for detailed, crisp vocals
Unidirectional (cardioid) polar pattern rejects unwanted noise for improved sound quality and higher gain-before-feedback
Flexible gooseneck design and discrete adjustment options optimize microphone positioning for further source isolation
Included windscreen tames plosives for clean and intelligible sound reproduction
TA4F (TQG) connector seamlessly integrates with existing Shure bodypack systems
Available with a wide variety of Shure wireless systems, renowned for ease-of-use and reliable performance
Included windscreen tames plosive, breath and wind noise for clean and intelligible sound
Tailored frequency response primed for great sound on vocals
Legendary Shure precision engineering for durability and performance
SVX14/PGA31 Specifications:
Set Type: Headset
Amount of Bodypacks: 1
Amount of TQG Mics: 1
SVX4 Specifications:Transmission: Analog
Type of Power Supply: External
Receiver Housings: Molded ABS
Bias via BNC: No
High Density Mode: No
Interference Detection: No
Remote Control: No
Number of compatible systems per frequency band: Up to 4
DANTE-Enabled Products: No
Detachable Antennas: No
Network ability: No
Software control : No
Logic: No
Cascade: No
Receiver type: Single
Line Mic Switch: No
Power Requirements: 12 to 18 V DC @ 130 mA
Phantom Power Protection: No
SVX1 Specifications:Weight: 90 g
Battery life alkaline: 10 h
Form Factor: Bodypack
Audio Mute: No
Detachable Antennas: No
Switchable RF power: No
Bodypack HxWxD without antenna: 108x64x19 g
Frequency Diversity: No
Functionality: Transmitter
High Density Mode: No
Input impedance: 22 kΩ
Transmission: Analogfrequency bands:
G15 (505–518 MHz)
H14 (541–553 MHz)
J9 (558–570 MHz)
PGA31 Specifications:Weight: 45 g
Frequency Response: 60 Hz – 20 kHz
Frequency Response: Tailored
Sensitivity: -50.00 dBV/Pa – 3.20 mV/Pa
Self-Noise: 28 dB(A)
Max. Sound Pressure Level: 145 dB
Transducer Type: Condenser
Polar Pattern: Cardioid
Switchable low cut: No
Connectors: TQG (T4AF, 4-Pin Mini)
Attenuator: No
Interchangeable Capsule: No
Main Functionality: Performance
Headphone Output: No
Requires Phantom Power: 5V DC (nominal), 10 V maximum (DC bias) VDC
Cartridge: Fixed
