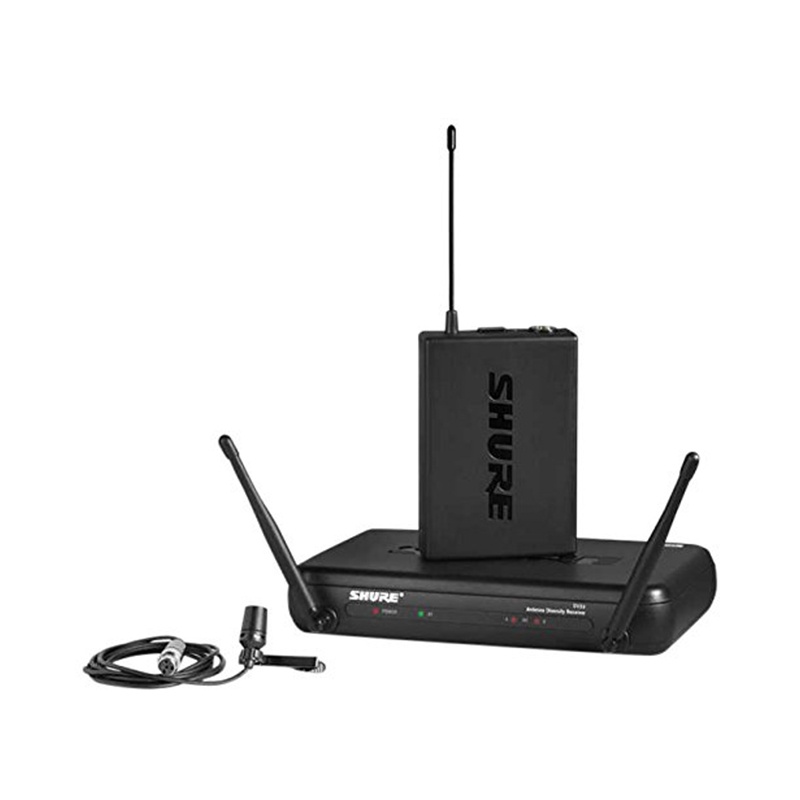

Shure SVX14/CVL Wireless Lavalier System
DESCRIPTION
Includes SVX4 Diversity Receiver, and SVX1 Bodypack Transmitter with CVL Centraverse Lavalier Condenser Microphone
The Centraverse Lavalier (CVL) offers convenience and performance in an easy-to-use clip-on cardioid condenser microphone that features simple, no-nonsense setup made for presenting professionals. Precision-engineered for years of use in any Shure wireless systems, its compact size is ideal for presenting situations where visibility is a major concern. The unidirectional (cardioid) pickup pattern rejects unwanted sound for superior source quality and vocal reproduction.
FEATURES
SVX 1 Transmitter
Transmitter Type: Bodypack
Dimensions: 108 mm height X 64 mm width X 19 mm depth
RF Output Power: 10
Battery, endurance: 10 h
Weight: 90 gSVX 4 Receiver
Up to 8 selectable channels
Up to 4 compatible systems
Antenna Switching Diversity
Adjustable Squelch Level
Mic / Line Switch
2 Audio Output:
1/4" Connector
XLR Connector
Available with Handheld and Lavalier system packages
CLV Lavalier
Miniature clip-on lavalier microphone for low visibility
Permanently charged electret condenser element for clear vocal reproduction
Unidirectional (cardioid) polar pattern rejects unwanted noise for improved sound quality
Included tie clip allows for hands-free use, perfect for presenters
Included windscreen reduces plosives, wind and breath sounds
Tailored frequency response optimized for speaking and presentations
TA4F (TQG) connector seamlessly integrates with Shure wireless bodypack systems
Legendary Shure precision engineering for durability and performance
SVX14/CVL Specifications:
Set Type: Presenter
Amount of Bodypacks: 1
Amount of TQG Mics: 1SVX4 Specifications:
Transmission: Analog
Type of Power Supply: External
Receiver Housings: Molded ABS
Bias via BNC: No
High Density Mode: No
Interference Detection: No
Remote Control: No
Number of compatible systems per frequency band: Up to 4
DANTE-Enabled Products: No
Detachable Antennas: No
Network ability: No
Software control : No
Logic: No
Cascade: No
Receiver type: Single
Line Mic Switch: No
Power Requirements: 12 to 18 V DC @ 130 mA
Phantom Power Protection: NoSVX1 Specifications:
Weight: 90 g
Battery life alkaline: 10 h
Form Factor: Bodypack
Audio Mute: No
Detachable Antennas: No
Switchable RF power: No
Bodypack HxWxD without antenna: 108x64x19 g
Frequency Diversity: No
Functionality: Transmitter
High Density Mode: No
Input impedance: 22 kΩ
Transmission: Analog
CVL Specifications:Weight: 25 g
Frequency Response: 60 Hz – 12 kHz
Frequency Response: Tailored
Sensitivity: -43.50 dBV/Pa – 6.70 mV/Pa
Self-Noise: 22 dB(A)
Max. Sound Pressure Level: 139 dB
Transducer Type: Condenser
Polar Pattern: Cardioid
Switchable low cut: No
Connectors: TQG (T4AF, 4-Pin Mini)
Attenuator: No
Interchangeable Capsule: No
Main Functionality: Installed
Headphone Output: No
Requires Phantom Power: 5 V DC (nominal), 10 V maximum (DC bias) VDCFrequency Range:
G15 (505–518 MHz)
H14 (541–553 MHz)
J9 (558–570 MHz)
