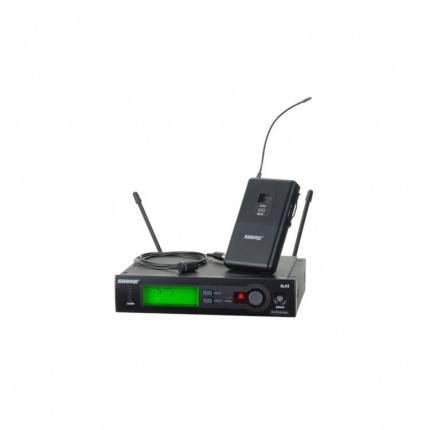

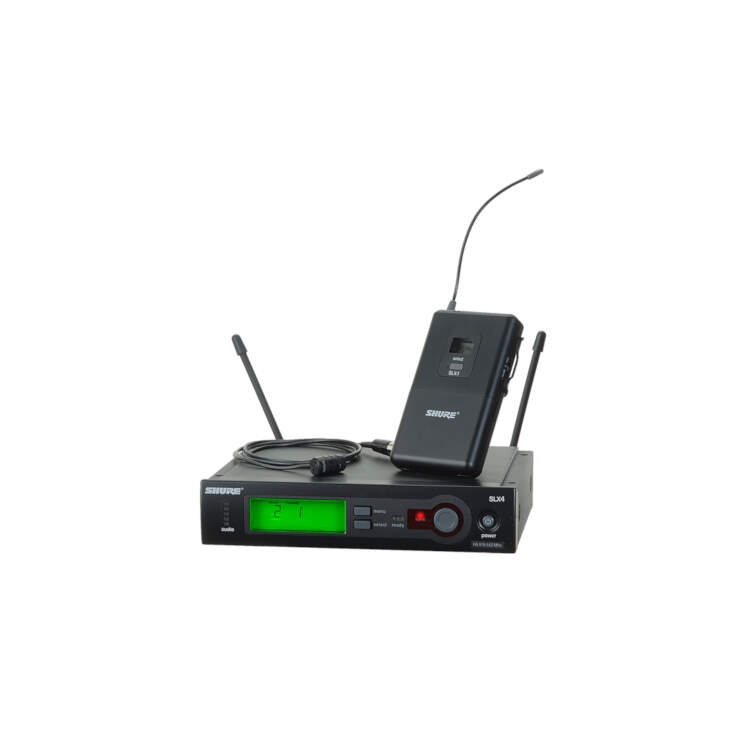

Shure SLX14/84 Lavalier Wireless System
DESCRIPTION
The rugged SLX Wireless Systems from Shure bring unparalleled ease of set-up and exceptional audio quality into reach. With included accessories, SLX is also installation-ready, out-of-the-box and with a wide selection of legendary Shure microphones to choose from, SLX offers a tailored solution for virtually any application.

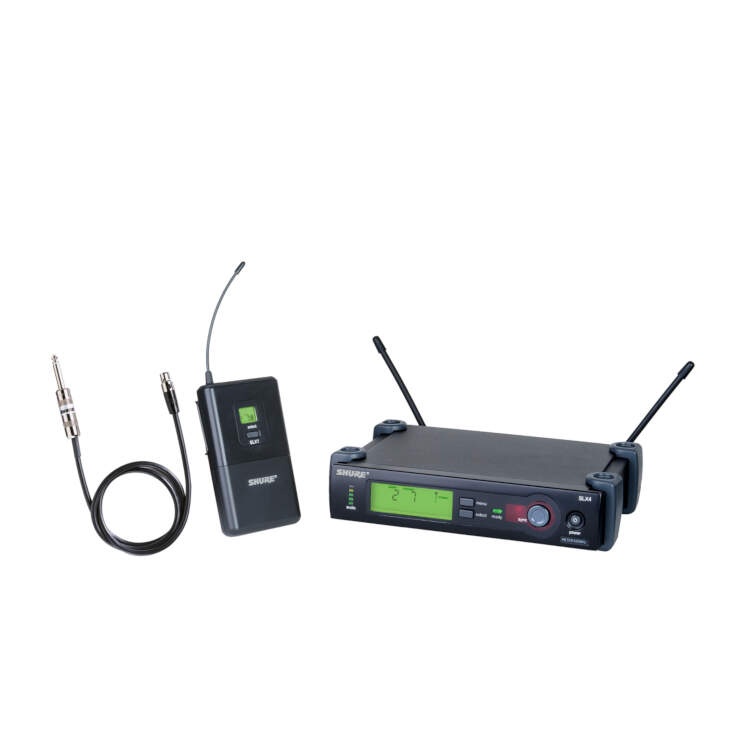

The SLX1 bodypack transmitter is designed to hold up to the most adverse conditions. It can be used with headworn, lavalier, instrument microphones, or with guitars or basses.
The SLX4 wireless receiver offers unprecedented simplicity with features including Automatic Frequency Selection and Automatic Transmitter Setup. With included rack hardware and detachable antennas, it is ready for immediate installation right out of the box. Other features include a backlit LCD screen which provides group, channel and antenna information. A five segment audio meter lets you monitor the incoming audio signal from the transmitter.

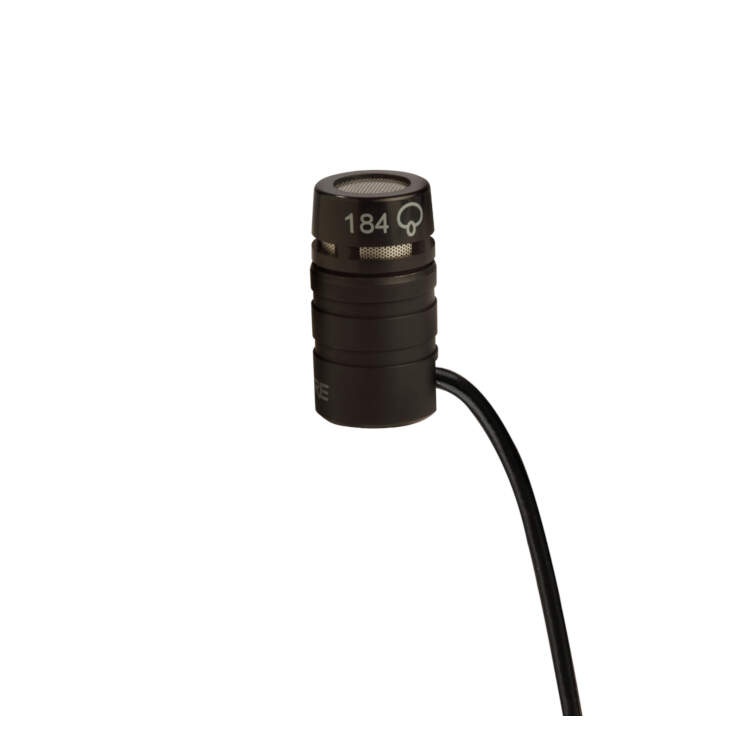

The WL184 premium supercardioid lavalier microphone brings a new level of sophistication to personal voice reproduction. Like all Microflex family microphones, this lavalier uses an interchangeable condenser cartridge, meaning there will always be a lavalier to suit your application.
Recommended for sound reinforcement applications requiring high rejection of ambient noise and narrow pickup angle, the WL184 is an supercardioid lavalier microphone with a 115 degree pickup angle. It has a 1.2 meter (4 ft.) cable terminated with a miniature 4-pin mini connector. Included tie clip can be rotated in 90 degree intervals for placement flexibility. Use of windscreen highly recommended.
Feature CommShield® Technology, which guards against interference from cellular RF devices and digital bodypack transmitters.
FEATURES
SLX14
Easy Setup
Automatic Frequency Selection
Automatic Transmitter Setup
Removable antennas and rack hardware includedExceptional Audio quality
Shure’s Patented Audio Reference Companding improves sound quality
Wide s selection of Shure microphone heads, headsets and lavaliers
Predictive Diversity technology for improved transmission qualityComplete installation solutions
Up to 12 compatible frequencies per band
Furnished rack hardware included for single or double mounted installation in a standard 19“ rack.
Detachable 1/4 wave antennas
Rugged metal chassis
Multi-function, backlit LCD on transmitter and receiverSLX1 Specifications:
Transmitter Type: Bodypack
Dimensions: 108 mm H x 64 mm W x 19 mm D
Battery, endurance: 2AA, >8 h
Weight: 81 g
Automatic Transmitter Setup
Backlit LCD with timeout feature
Frequency and power lockout
3-segment battery fuel gauge
2 AA batteries (included) provide 8 hours of continuous use
Audio Input Level:
-10 dBV maximum at mic gain position
+10 dBV maximum at 0 dB gain position
+20 dBV maximum at -10 dB gain position
Gain Adjustment Range: 30dB
Input Impedance: 1 MΩ
RF Transmitter Output: 30 mW maximum (dependent on applicable country regulations)
Housing: Molded ABS caseSLX4 Specifications:
Dimensions: 42 mm H x 197 mm W x 134 mm D
Weight: 816 g
Housing: Galvanized steel
Audio Output Level : XLR connector (into 600 Ω load): –13 dBV, 1/4 inch connector (into 3000 Ω load): –2 dBV
Output Impedance: XLR connector: 200 Ω, 1/4 inch connector: 1kΩ
Sensitivity: -105 dBm for 12 dB SINAD, typical
Image Rejection: >70 dB, typical
Operating Range Under Typical Conditions: 100m (300 ft.)
Audio Frequency Response (+/– 2 dB): Minimum: 45 Hz, Maximum: 15 kHzFrequency Range:H5 (518-542 MHz)
L4 (638-662 MHz)
K3E (606-630 MHz)WL184 Specifications:
Transducer Electret Bias
Polar Pattern Super-Cardioid
Frequency Response 50Hz to 17kHz
Dynamic Range (Typical) 102dB
Signal-to-Noise Ratio 27dB SPL (A-weighted)
Maximum Input Sound Level 129.5dB
Power Requirements Regulated Nominal +5 Vdc (2 Vdc to 10 Vdc)
Output Impedance 18 kHz
Output Connectors TA4-Female
Pad No
Low Frequency Roll-Off No
Dimensions Cable length - 1.2 meter
