iQ15B | Buy Turbosound direct from Singapore's Authorized Distributor for warranty assurance.
The 3,000-Watt iQ15B is a front loaded 15" powered subwoofer ideally suited for a wide range of portable and fixed installation, music and speech sound reinforcement applications. The high excursion 15" low frequency driver with double suspension low mass 4" voice coil provides fast and accurate transient response for virtually distortion-free operation – even in the most demanding performances.Equipped with a very efficient and lightweight KLARK TEKNIK Class-D power amplifier, the iQ15B provides an impressive 3,000 Watts of output power. A high degree of control over the loudspeaker system’s performance is managed by a sophisticated, but easy to use KLARK TEKNIK Digital Signal Processor (DSP), which provides dynamic EQ and transparent limiting for the utmost punch and definition at high output levels – and long-term reliability. iQ15B’s advanced DSP speaker modelling presets include detailed and accurate models of some of the audio industry’s most-respected speaker systems.

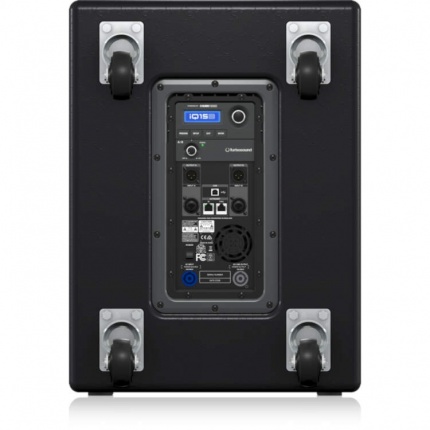

On the rear panel amplifier module, you will find a fully featured user interface consisting of an LCD display, the Channel A/B gain control, and a single rotary encoder for intuitive access to level, EQ, Speaker modelling, and Feedback Control (FBI). In addition to the two combination balanced XLR/jack inputs and balanced XLR outputs for powered satellite loudspeakers, the iQ15B features a mic/line switch and level control with signal present LED.
The iQ15B also features our proprietary ULTRANET technology, which allows the use of CAT5 cables for transmitting pristine multi-channel audio signals and other information between ULTRANET-enabled products, such as digital mixers, powered loudspeakers, and personal monitor systems. This digital distribution networking not only eliminates the potential for RFI and crosstalk so common to analogue methods, but also significantly reduces the setup or installation time required. An onboard USB port provides access for remote control of the iQ15B via PC computer, as well as DSP and speaker modelling firmware updates.
The birch plywood enclosure is finished in a hard wearing semi matt black paint and fitted with a rugged powder coated perforated steel mesh grille, 35 mm pole mount to support a satellite speaker, and plated steel castors with rubber tyres. Mains power input and link output is provided via Neutrik powerCON connectors.
iQ15B Specifications:
System:
Frequency Response 50 to 130 Hz ±3 dB
40 to 130 Hz -10 dB
Nominal Dispersion Half Space
Maximum SPL 130 dB peak
Crossover Type Active
Driver 1 x 15.0" (38.5 cm) LF driver
Limiter Peak and RMS
Amplifier:
Maximum Output Power 3000 W
Type Class-D
Protection Short circuit, open circuit, thermal
Connectors:
Input A / B: 2 x combo XLR-1/4"
Sensitivity Line +4 dBu
Input Impedance Unbalanced: 20 kOhms
Balanced: 40 kOhms
Maximum Input Level +21 dBu
Output A / B: 2 x XLR linked to input
Ultranet Input/Link 2 x RJ45
Mains Supply Neutrik powerCON input 20 A and link 15 A
Controls:
DSP Rotary push-encoder
Buttons for PROCESS, SETUP, EXIT, ENTER
Mixer Section 1 x gain controls (channels A and B)
2 x line
Functions:
EQ Presets Positioning, sound mode
Display LCD 128 x 32, blue backlit
Delay 0 to 300 ms
Equalizer High- and low-shelving EQ
2 x parametric EQ
Limiter Zero-attack input limiter
Presets 20 total presets, 19 user-definable
Crossover Low Pass L-R 24 dB / octave
Protection Lock-out function for all settings
Digital:
System Signal: 16 channels
Latency: 0.9 ms
Cabling Shielded CAT5
Maximum Cable Length: 246.0' (75.0 meters) recommended
Power Supply:
Power Consumption 200 W @ 1/8 maximum power
Voltage 120 V, 60 Hz (T: 15 A, H: 250 V)
Enclosure:
Construction Birch plywood (screwed and glued)
Grille Powder-coated perforated steel
Dimensions (W x H x D) 23.7 x 17.5 x 19.5" (60.2 x 44.4 x 49.5 cm)
Weight 67.0 lb (30.4 kg)
For export (= shipments outside of Singapore) we do not charge GST. In this case, please refer to the prices excl GST.
