iQ18B | Buy Turbosound direct from Singapore's Authorized Distributor for warranty assurance.
The 3,000-Watt iQ18B is a front loaded 18" powered subwoofer ideally suited for a wide range of portable and fi xed installation, music and speech sound reinforcement applications. The high excursion 18" low frequency driver with double suspension low mass 4" voice coil provides fast and accurate transient response for virtually distortion-free operation – even in the most demanding performances.Equipped with a very effi cient and lightweight KLARK TEKNIK Class-D power amplifi er, the iQ18B provides an impressive 3,000 Watts of output power. A high degree of control over the loudspeaker system’s performance is managed by a sophisticated, but easy to use KLARK TEKNIK Digital Signal Processor (DSP), which provides dynamic EQ and transparent limiting for the utmost punch and defi nition at high output levels – and long-term reliability. iQ18B’s advanced DSP speaker modelling presets include detailed and accurate models of some of the audio industry’s most-respected speaker systems.

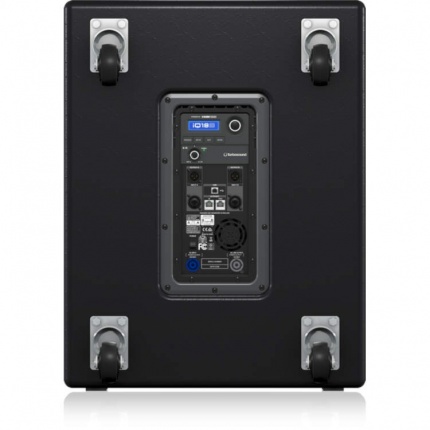

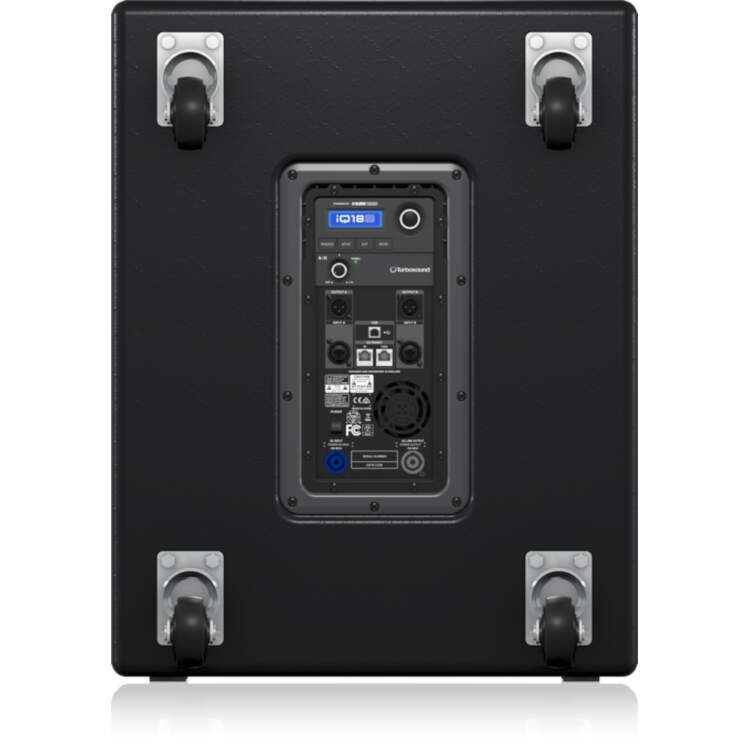

On the rear panel amplifi er module, you will fi nd a fully featured user interface consisting of an LCD display, the Channel A/B gain control, and a single rotary encoder for intuitive access to level, EQ, Speaker modelling, and Feedback Control (FBI). In addition to the two combination balanced XLR/ jack inputs and balanced XLR outputs for powered satellite loudspeakers, the iQ18B features a mic/line switch and level control with signal present LED.
The iQ18B also features our proprietary ULTRANET technology, which allows the use of CAT5 cables for transmitting pristine multi-channel audio signals and other information between ULTRANET-enabled products, such as digital mixers, powered loudspeakers, and personal monitor systems. This digital distribution networking not only eliminates the potential for RFI and crosstalk so common to analogue methods, but also signifi cantly reduces the setup or installation time required. An onboard USB port provides access for remote control of the iQ18B via PC computer, as well as DSP and speaker modelling fi rmware updates.

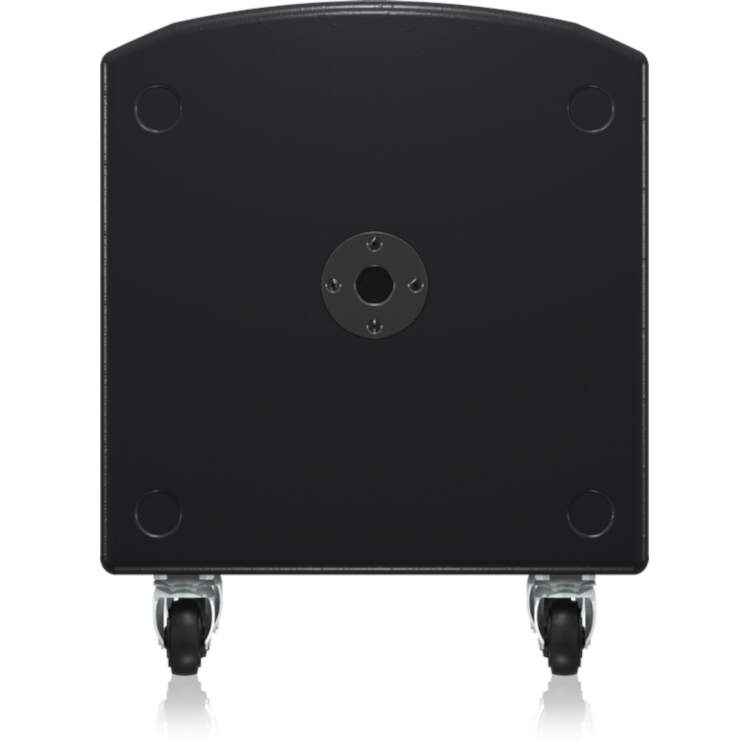

The birch plywood enclosure is fi nished in a hard wearing semi matt black paint and fi tted with a rugged powder coated perforated steel mesh grille, 35 mm pole mount to support a satellite speaker, and plated steel castors with rubber tyres. Mains power input and link output is provided via Neutrik powerCON connectors.
iQ18B Specifications:
System:
Frequency Response 50 to 130 Hz ±3 dB
40 to 130 Hz -10 dB
Nominal Dispersion Half Space
Maximum SPL 130 dB peak
Crossover Type Active
Driver 1 x 18.0" (45.7 cm) LF driver
Limiter Peak and RMS
Amplifier:
Maximum Output Power 3000 W
Type Class-D
Protection Short circuit, open circuit, thermal
Connectors
Input A / B: 2 x combo XLR-1/4"
Sensitivity Line +4 dBu
Input Impedance Unbalanced: 20 kOhms
Balanced: 40 kOhms
Maximum Input Level +21 dBu
Output A / B: 2 x XLR linked to input
Ultranet Input/Link 2 x RJ45
Mains Supply Neutrik powerCON input 20 A and link 15 A
Controls:
DSP Rotary push-encoder
Buttons for PROCESS, SETUP, EXIT, ENTER
Mixer Section 1 x gain controls (channels A and B)
2 x line
Functions:
EQ Presets Positioning, sound mode
Display LCD 128 x 32, blue backlit
Delay 0 to 300 ms
Equalizer High- and low-shelving EQ
2 x parametric EQ
Limiter Zero-attack input limiter
Presets 20 total presets, 19 user-definable
Crossover Low Pass L-R 24 dB / octave
Protection Lock-out function for all settings
Digital:
System Signal: 16 channels
Latency: 0.9 ms
Cabling Shielded CAT5
Maximum Cable Length: 246.0' (75.0 meters) recommended
Power Supply
Power Consumption 200 W @ 1/8 maximum power
Voltage 120 V, 60 Hz (T: 15 A, H: 250 V)
Enclosure:
Construction Birch plywood (screwed and glued)
Grille Powder-coated perforated steel
Dimensions (W x H x D) 27.2 x 21.0 x 22.0" (69.0 x 53.3 x 55.9 cm)
Weight 87.5 lb (39.8 kg)
