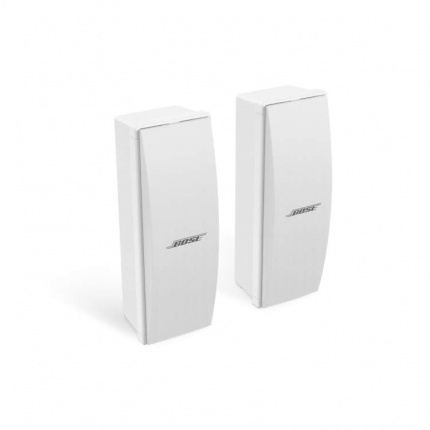

The Panaray 402 installed sound-reinforcement loudspeaker features a full-range-driver array, eliminating the need for tweeters and crossovers, to provide unsurpassed reliability and vocal clarity. The Articulated Array design, with wide 120° x 60° coverage, can reduce the number of required loudspeakers, while the 73-Hz low- frequency range can reduce the need for subwoofers, providing a cost-effective solution for many indoor or outdoor installed sound-reinforcement applications.
FEATURES
- Full-Range-Driver Array eliminates tweeters and crossovers for unsurpassed reliability in harsh environments and vocal clarity
- 4 x Bose® 4.5-inch full-range drivers for legendary reliability
- 120° x 60° Articulated Array® design covers a very wide area, which can reduce the number of loudspeakers required
- 73 Hz - 15 kHz Frequency Range eliminates need for subwoofers for moderate full-range music levels
- 119 dB Peak SPL for sound-reinforcement and foreground music
- Rugged, lightweight enclosure with threaded inserts for easy installations
Weather-Rated Design for indoor or outdoor installations - Requires Active Equalization
Technical Summary
Frequency Range (-10 dB)
73 Hz - 15 kHzNominal Coverage Pattern (H x V)
120° H x 60° VLong-Term Power Handling
Bose extended-lifecycle test⁴: 120 W
AES transducer test⁵: 150 W
Power Handling, Peak
Bose extended-lifecycle test⁴: 480 W
AES transducer test⁵: 600 WSensitivity (SPL / 1 W @ 1 m)
91 dB SPLCalculated Maximum SPL @ 1 m
Bose extended-lifecycle test⁴: 112 dB
AES transducer test⁵: 113 dBCalculated Maximum SPL @ 1 m, peak
Bose extended-lifecycle test⁴: 118 dB
AES transducer test⁵: 119 dBNominal Impedance
8 Ω
