MT830R
Omnidirectional Condenser Lavalier MicrophoneDesigned to be worn as a lavalier or hidden in loose clothing or in the hair, the MT830R provides high intelligibility for lecturers, stage/TV performers, and singers. The mic’s wide-range capability ensures clean, accurate reproduction. It operates on phantom power only.
ELEMENT: Fixed-charge back plate, permanently polarized condenser

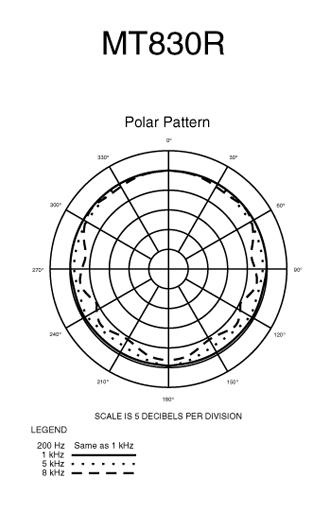

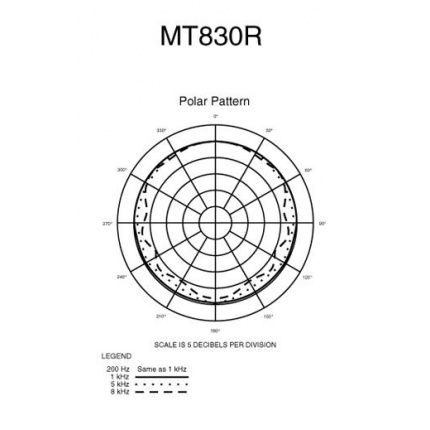

POLAR PATTERN: Omnidirectional

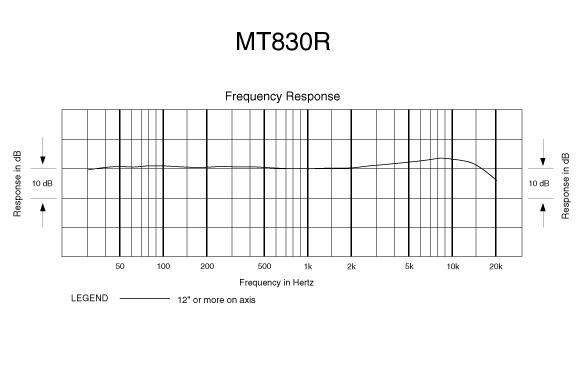

FREQUENCY RESPONSE: 30-20,000 Hz
LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY: –37 dB (14.1 mV) re 1V at 1 Pa
IMPEDANCE: 200 ohms
MAXIMUM INPUT SOUND LEVEL: 135 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE: (typical) 108 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO: 67 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS: 11-52V DC, 2 mA typical
SWITCH: Flat, roll-off
WEIGHT: (MICROPHONE) 1.3 g (0.05 oz)
WEIGHT: (POWER MODULE) 81 g (2.9 oz)
DIMENSIONS: (MICROPHONE) 15.8 mm (0.62") long, 8.3 mm (0.33") wide, 5.0 mm (0.19") thick
DIMENSIONS: (POWER MODULE) 92.9 mm (3.66") long, 18.9 mm (0.74") diameter
OUTPUT CONNECTOR: Integral 3-pin XLRM-type
CABLE: 7.6 m (25') long (permanently attached to microphone), 2.5 mm (0.10") diameter, 2-conductor, shielded cable with TA3F-type output connector

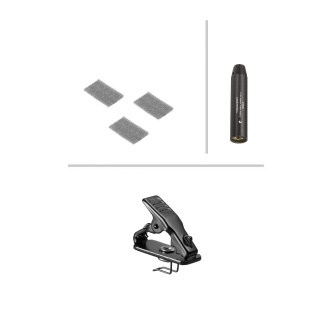

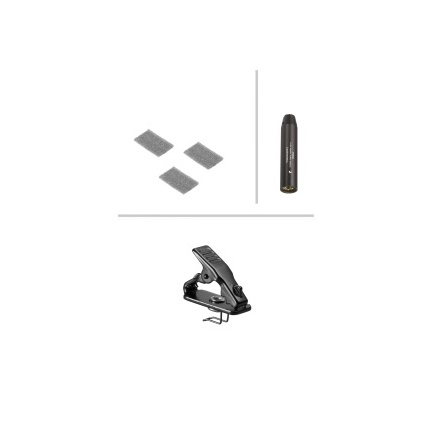

ACCESSORIES FURNISHED: AT8538 power module; clothing clip; windscreens
AUDIO-TECHNICA CASE STYLE: M7
