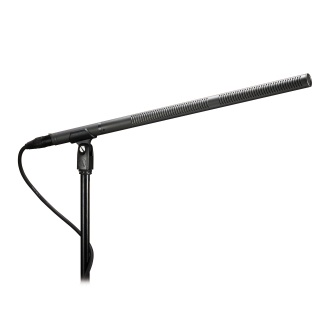

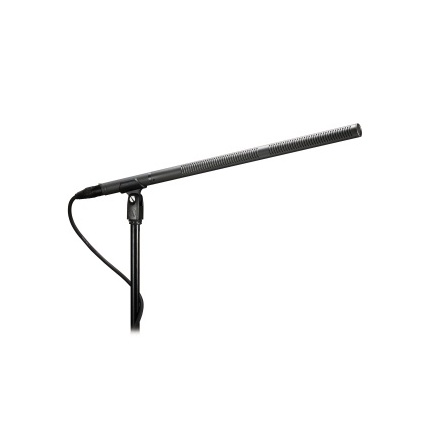

AT8015
Line + Gradient Condenser MicrophoneDesigned for video production and broadcast (ENG/EFP) audio acquisition, the AT8015 provides the narrow acceptance angle desirable for long-distance sound pickup, along with excellent sound rejection from the sides and rear of mic. The roll-off position reduces the pickup of low-frequency ambient noise (such as traffic, air-handling systems, etc.), room reverberation and mechanically coupled vibrations.
ELEMENT: Fixed-charge back plate, permanently polarized condenser

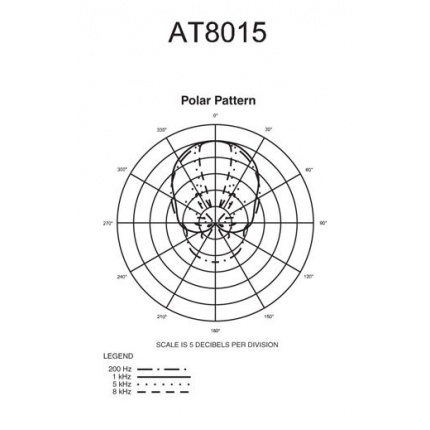

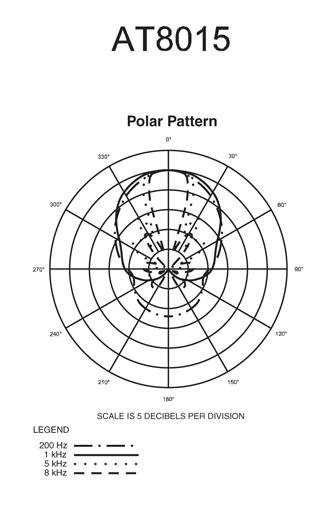

POLAR PATTERN: Line + gradient

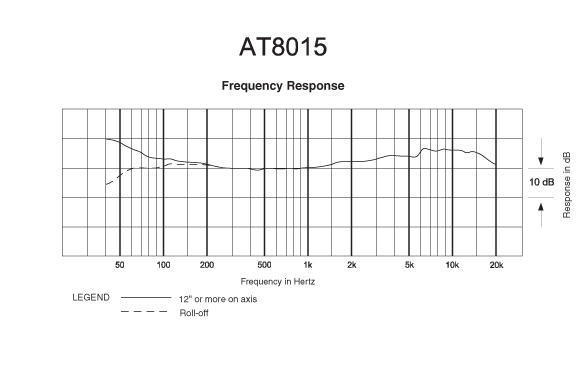

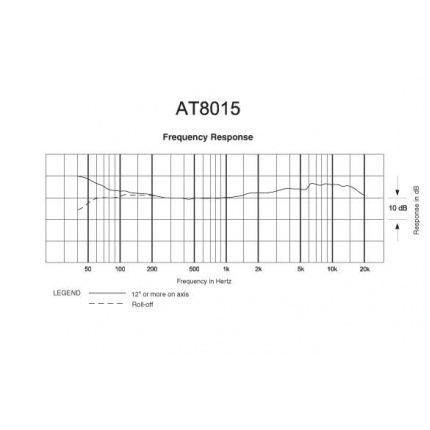

FREQUENCY RESPONSE: 40-20,000 Hz
LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY: Phantom: –38 dB (12.5 mV) re 1V at 1 Pa | Battery: –39 dB (11.2 mV) re 1V at 1 Pa
IMPEDANCE: Phantom: 250 ohms | Battery: 300 ohms
MAXIMUM INPUT SOUND LEVEL: Phantom: 132 dB SPL, 1 kHz at 1% T.H.D. | Battery: 120 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE: (typical) Phantom: 110 dB, 1 kHz at Max SPL | Battery: 98 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO: 72 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS: 11-52V DC, 2 mA typical
BATTERY TYPE: 1.5V AA/UM3
BATTERY CURRENT / LIFE: 0.4 mA / 1200 hours typical (alkaline)
SWITCH: Flat, roll-off
WEIGHT: 195 g (6.9 oz)
DIMENSIONS: 460.0 mm (18.11") long, 21.0 mm (0.83") diameter
OUTPUT CONNECTOR: Integral 3-pin XLRM-type

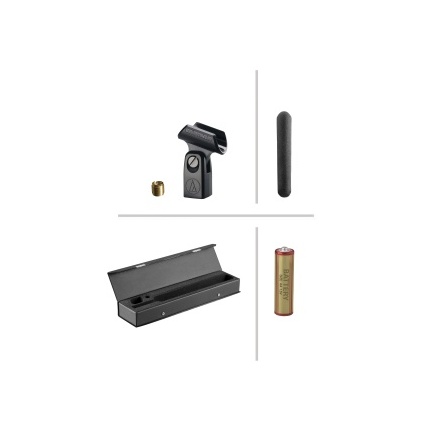

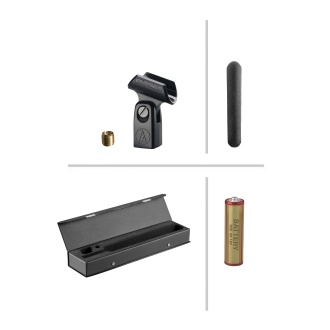

ACCESSORIES FURNISHED: AT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8135 windscreen; battery; protective carrying case
AUDIO-TECHNICA CASE STYLE: SG3
