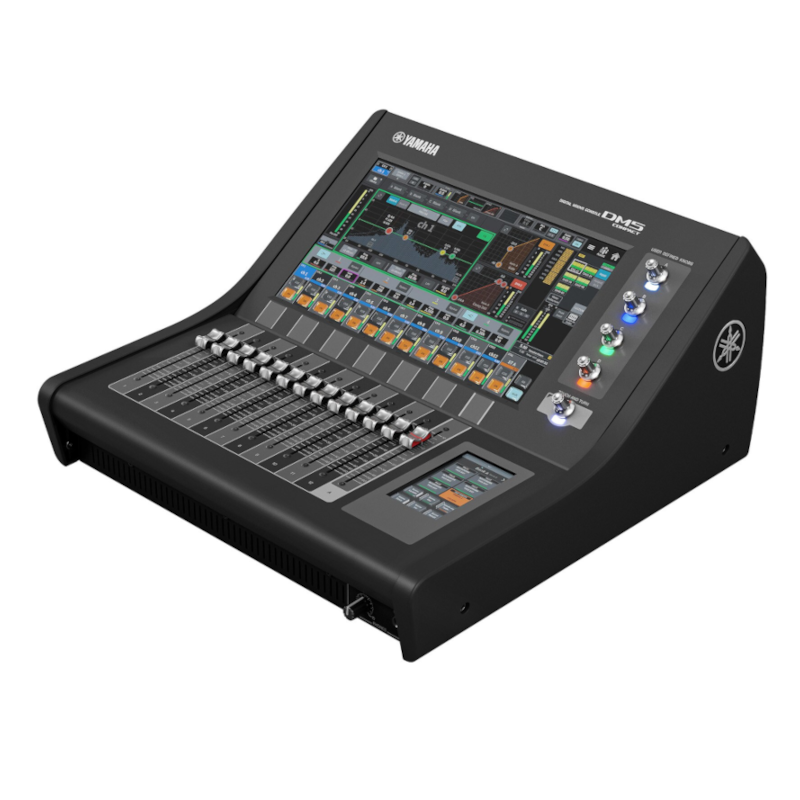

Yamaha DM5C Compact 48 Input Channel Digital Mixer

Get your Yamaha DM5 Compact online from AVLFX Singapore! Best prices, free item bundled exclusively and an additional 1-year AVLFX warranty bonus on top of Yamaha Music Asia's standard 1-year warranty when you purchase your unit from us.

The DM5 Compact is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM5 Compact is configured with 13 faders and a 1 x 13.3” + 1 x 4.3” multi-touch screen with glass keys.

Forward Thinking
Capture the sound from the stage as-is and overlay the tones you need to bring the artist and audience together. The DM5 series delivers the mix you want every time by bringing speed, certainty, and creativity to the process of building your sound, offering a plethora of functions to support your work in a range of compact formats with polished, intuitive user interfaces. A carefully selected set of controls with freely customizable functions and parameters that elevate your workflow to the next level.

Backed by over three decades of experience in this field, Yamaha provides undeniable reliability and uncompromising audio quality. By integrating seamlessly with your current processes, the DM5 series sets a new standard for professionals who are ready to take their workflows to the next stage.

SOUND - Everything you need to take your sound to the next stage -

The DM5 series honors Yamaha’s legacy of transparent sound , capturing sound direct from the stage that you can use to build and layer a mix that’s all your own. With powerful channel strip processing, effects, and plugins running on the PY-DSP, the DM5 series gives you everything you need to give free rein to your creativity and build your mix with confidence.

I/O Rack Support
The DM5 series supports the full range of R series I/O racks, letting you choose the best fit for your needs. All are built on the same concept: capturing sound direct from the stage to provide a solid foundation for sound shaping.

WORKFLOW - Built to evolve with the way you work -
Everyone has a different workflow, and having your own is key to consistently achieving your sound. The DM5 series lets you tailor the operating styles and parameters for each operator, giving you everything you need to make your current workflow smoother and more intuitive.

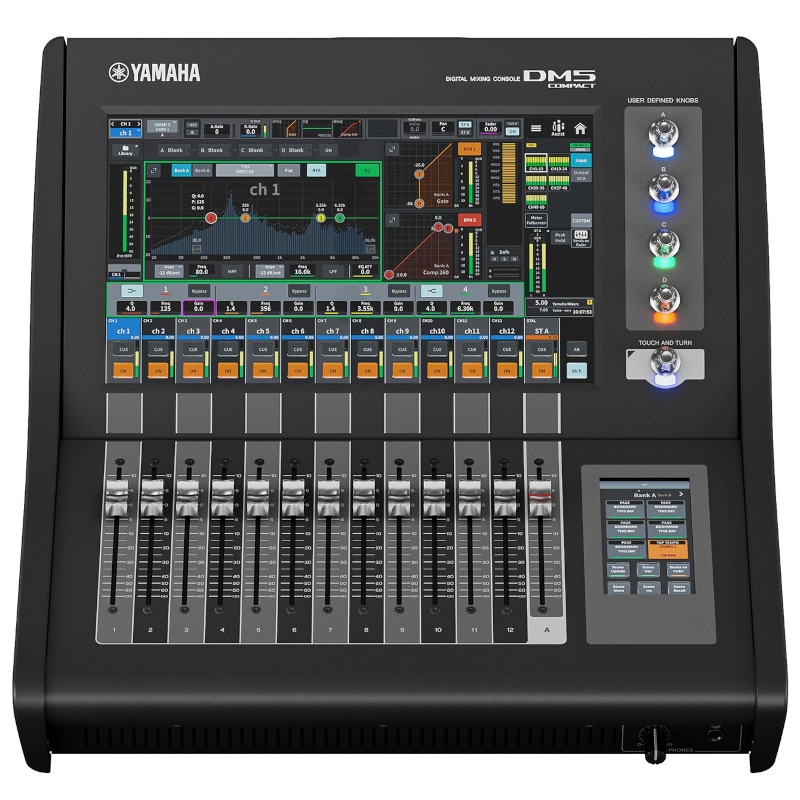

Compact, shallow design—easy to see, easy to reach

• DM5 consoles are more than just compact. Designed with the operator in mind, the layout eliminates any unnecessary elements while preserving the space needed for efficient operation. A console depth similar to that of a laptop computer keeps the large 13-inch display within easy reach for intuitive operation. Light and compact, DM5 consoles are easy to transport and set up anywhere, making them ideal for a wide range of applications.

Selected Channel View and Overview—two ways to view your work

• Yamaha mixers provide better operating environments for every stage of use. Choose either the Selected Channel View and Overview screens to suit the needs of individual operators and create a working environment that suits their needs.
• When setting up and configuring your system, the Selected Channel View allows at-a-glance monitoring of signal flows for individual channels while you work, while Overview allows monitoring of settings during live performances or when working across multiple channels.

Work in your own language

• Channel visibility is a critical factor when it comes to operation speed. DM series consoles support multilingual channel name displays, enabling artist and instrument names to be shown in the operator’s own language for more intuitive operation. (Use the Editor or the StageMix app to input channel names in other languages.)

Expand your system with Broadcast and Theatre packages

• Adding Broadcast Package or Theatre Package to access functions essential to broadcast and theatrical applications.

The Broadcast Package adds seven essential broadcast functions, including Mix Minus, and Audio Follow Video, while the Theatre Package brings immersive control functions along with 4 Bank EQ/DYN, Actor Library, and other functions that are useful for musical and theater applications. A Loudness Meter will be added in the future updates.

Licenses are managed via the PV Portal app, which allows a single license to be activated and deactivated for use across multiple consoles. (Not available in some regions)

PY Cards—expanded connectivity and control

• The PY slot offers up to 64 channels of additional I/O. Insert any one of a variety of cards to allow connection with a variety of audio formats and expansion of control functions. The PY64-D features a Dante-compatible sampling rate converter (SRC). The PY64-MD supports 64 channels of MADI I/O. The PY8-AE features an AES/EBU D-sub 25-pin connector for 8 channels of I/O. The PY-MIDI-GPI adds MIDI/GPI control via DIN 5-pin and D-sub 15-pin connectors. The WSG-PY64 from Waves Audio Ltd. connects to the Waves Soundgrid system, enabling the use of Waves plug-ins.

Recording options to suit any workflow and environment

• Easy-to-configure USB recording and playback functions allow two-track recording without the need for additional equipment, ideal for recording performances and playing background music. The DM5 also includes Nuendo Live software for reliable multitrack capture when recording live and supports multitrack audio recording with up to 18 channels of I/O via the USB connection on the rear panel or up to 64 channels using Dante. It also features a Virtual Sound Check function that allows you to adjust sound systems in a live-performance setting—even without the artist present.

Prepare offline, control from anywhere.
The DM5 series supports the DM Editor application for Windows and Mac, enabling offline setup and editing for advance preparation as well as online backup management. Both the DM5 series and DM7 series work with this application, with mutually compatible console data files for smooth data exchange. StageMix and MonitorMix provide convenient remote control from anywhere in the venue, while ProVisionaire Control PLUS offers a versatile custom control platform that helps bring your ideal system operation to life.


In the Box
Yamaha DM5 Compact
1-year Yamaha Music Asia warranty + additional exclusive 1-year AVLFX warranty bonus!

Not included
Rack Ears
