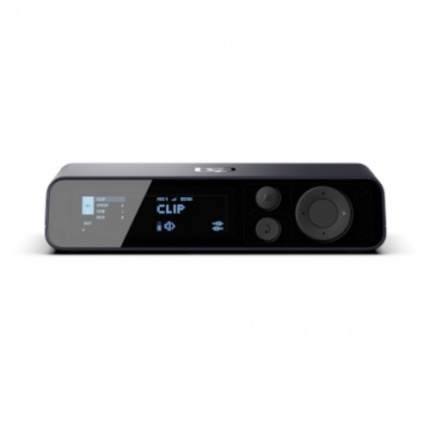

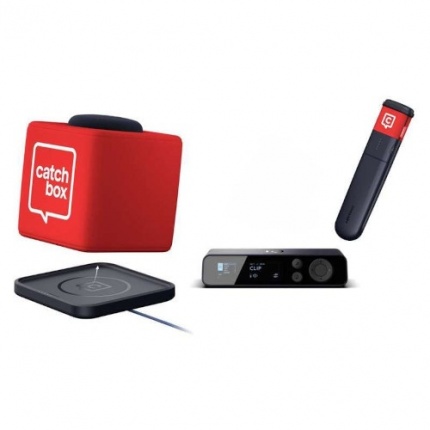

The Catchbox Plus System with 4 Channel Hub DSP Receiver, 1 Cube and 1 Stick Wireless Microphones is a complete wireless microphone solution for classrooms, lecture theatres, conference rooms and corporate events. The non-networking 4 Channel Hub DSP Receiver combines a wireless receiver, digital mixer and DSP processor into a single unit, supporting up to four wireless microphones simultaneously. This package includes one Cube throwable microphone for audience participation and one Stick handheld microphone for presenters, hosts and Q&A sessions. The system can be expanded with additional Catchbox Cube, Clip or Stick microphones as your installation grows.
In the Box
1 × 4 Channel Hub DSP Receiver
1 × Catchbox Cube Wireless Microphone (Standard Red)

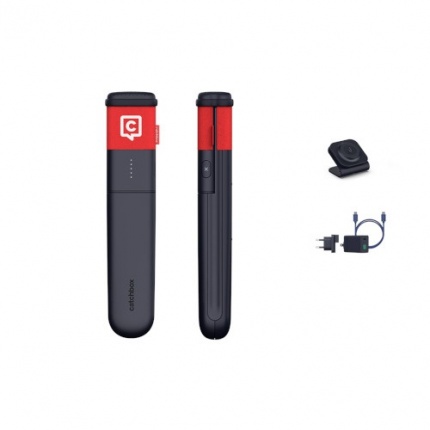

1 × Catchbox Stick Wireless Handheld Microphone

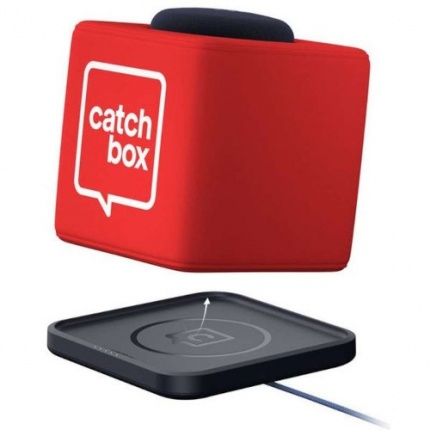

1 × Cube Charging Base
1 × Stick Charging Dock
Power Supply
USB-C Cable
Quick Start GuideWireless Technology
DECT Digital Wireless (Licence-Free)
Hub Capacity
Up to 4 wireless microphones
Audio Processing
Built-in DSP
Integrated Digital Mixer
12-channel Automixer
Echo Cancellation

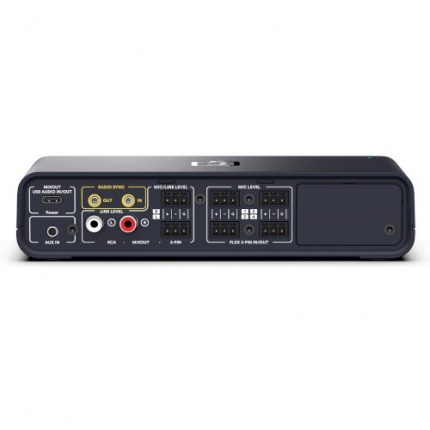

Feedback SuppressionConnectivity
USB-C Digital Audio
4 × Balanced XLR FLEX Outputs
Balanced XLR Left / Right Mix Outputs
RCA Stereo Line OutputsThis model does not include Dante®, Network Audio, Ethernet or PoE.
Microphones Included
1 × Catchbox Cube Wireless Microphone
1 × Catchbox Stick Wireless Handheld Microphone
Focused Omni™ microphone technologyBattery
Cube
Rechargeable serviceable Lithium-ion battery
Up to 22 hours operating time
Approx. 6 hours charging timeStick
Rechargeable serviceable Lithium-ion battery
Up to 8 hours operating time
Approx. 2 hours charging timeCharging
1 × Cube Charging Base
1 × Stick Charging DockOperating Range
Up to 100 m (330 ft) line of sight
Control
Catchbox Control Software (USB)
ApplicationsCorporate Presentations
Conference Rooms
Universities
Lecture Theatres
Training Centres
Houses of Worship
Hybrid Learning
Audience Q&A Sessions
Live Events
