RF Venue Diversity Fin Antenna & DISTRO5 5-Channel UHF Distribution System Bundle

Improve the wireless microphone reception and reduce dropouts in your classroom, event space, or conference room with the black Diversity Fin Antenna and DISTRO5 HDR 5-Channel UHF Distribution System Bundle from RF Venue. This turnkey package conveniently bundles the black, stand-mount Diversity Fin antenna with with an active, half-rack, 5-channel splitter capable of splitting the RF signals from the antenna's A and B diversity connections, amplifying them, and sending them to multiple receivers.

The package also includes a pair of 25' coaxial low-loss antenna cables as well as a 10-pack of 1.5' low-loss coaxial cables to distribute the RF signal. The included DC Octopus cable distributes 12 VDC power to the receivers, eliminating wall warts and the need for dedicated rack power distribution.

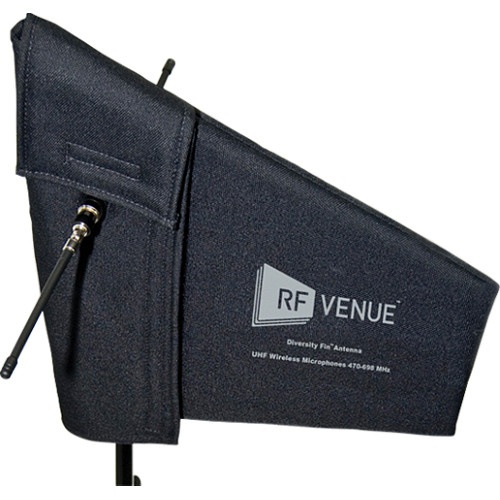

RF Venue Diversity Fin Antenna for Wireless Microphone Systems

The black RF Venue Diversity Fin is a multipurpose antenna that reduces dropouts using a proprietary, cross-polarized hybrid design. It is compatible with diversity wireless microphone systems of any brand. The antenna features a mounting block with 1/4"-20, 3/8"-16, and 5/8"-27 threads to secure it on the stand of your choice.

The Diversity Fin combines one LPDA and one dipole antenna in an orthogonal (right-angle) configuration. One element captures vertically polarized waves and the other horizontally polarized waves—doing the same job as two shark-fin paddles. This design greatly improves RF and audio performance in high-profile live sound events, film and TV productions, or routine installations in schools and houses of worship.

To use, just connect both the A and B outputs (coaxial cables available separately) to any antenna distribution system or wireless receiver, and point the antenna toward the stage.

A Nylon cover protects the antenna against the elements for outdoor use.

RF Venue DISTRO5 HDR 5-Channel UHF Antenna Distribution System
The DISTRO5 HDR 5-Channel UHF Antenna Distribution System from RF Venue is a high-dynamic-range active antenna splitter designed to split the RF signal from two remotely mounted antennas and distribute it to up to 5 wireless receivers via coaxial cables (antennas, receivers, and cables available separately). In addition, the unit features a DC power input, allowing you to power it from a DC battery input for location work, and a DC power output, allowing you to power up to 8 receivers or compatible 12 VDC devices using a DC Octopus cable (available separately).

The all-metal, half-rack splitter includes long and short rack ears along with mounting hardware. For larger setups, you can cascade an additional DISTRO5 HDR unit (available separately) for a single 1 RU rack space of RF distribution for up to 9 receivers.

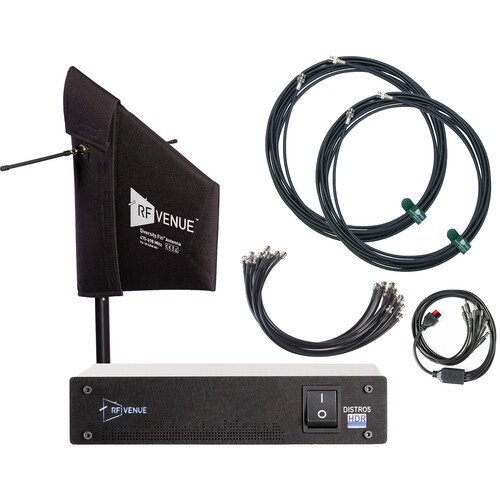

Items Included
RF Venue Diversity Fin Antenna with Stand Mount for Wireless Microphone Systems (Black)
Nylon Cover
RF Venue DISTRO5 HDR 5-Channel UHF Antenna Distribution System (470 to 698 MHz)
Half-Rack Connecting Plate and Hardware
Set of Rack Ears (Long and Short)
IEC Power Cord
RF Venue DC Octopus 8-Connector Power Distribution Cable
2 x RF Venue RG8X Low-Loss Coaxial Antenna Cable
RF Venue RG8X Low-Loss Coaxial Antenna Cable
