Looking for an all-in-one package that includes the FreeSpace 3 Acoustimass Bass Module and Bose FreeSpace 3 Satellite Speakers? We have now combined these with the Blaze Powerzon 252 for a convenient, hassle-free solution.
PowerZone is a series of non-networked Class-D installation amplifiers engineered for professionals who demand affordable, reliable, high-performance audio power.Key features include flexible configuration options that allow each output channel to be independently set to drive either Lo-Z or Hi-Z loads, enabling you to tailor your system to drive both types of loudspeakers from a single unit.
Additionally, the PowerZone™ series’ power-sharing technology (exclusive to the 252 and 504 models) intelligently distributes the total available power across channels, ensuring optimal performance and reliability.
Great for cafes, restaurants, offices, homes or anywhere background music is desired. We are able to supply the hookup diagram when you purchase the bundle from us. All you need is to have the cables run and hook up the speakers according to the simple diagram and you will be in business.
This minimal-fuss installation kit is designed to play back music without meddling with many complicated controls.

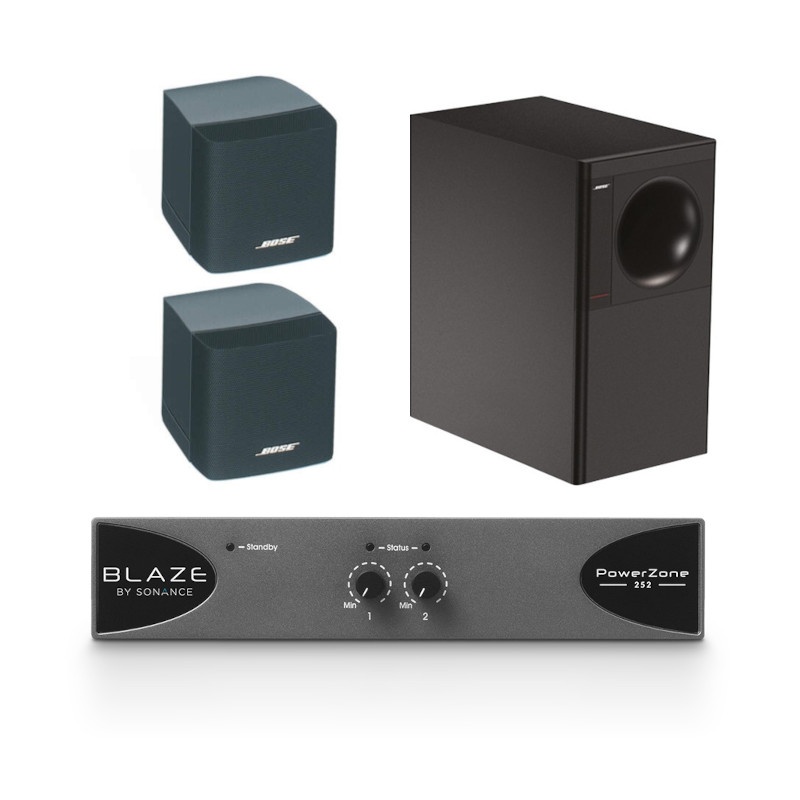

The package consists of :
2 x Bose Professional FreeSpace 3 Surface-Mount Satellite Speaker (Black/White)
1 x Bose Professional FreeSpace 3 Acoustimass Bass Module (Black/White)
1 x Blaze Powerzone 252
1 x Professional speaker cable AWG18, grey jacket, tinned x 30m roll
Do let us know which colour speakers you require in the order notes upon checkout.Blaze Powerzone 252
Total System Power: 250W
Output Power @4/5 olms : 2 x 125W
Output Power @ 70/100V :2 x 125 W
Powershare (up to) Across all channels** : 1 x 250 W
Total System Power: 250W
Power Consumption: 75W
Output Circuitry UMAC™ Class D - full bandwidth PWM modulator with ultra -low distortion
Output Voltage 45Vrms (S.E) - 70/100V (Hi-Z)
Signal To Noise-Ratio > 100 dB (A-weighted, 20 Hz - 20 kHz, 8 Ω load)
THD+N (typical) 0.05 % (20 Hz - 20 kHz, 8 Ω load, 3 dB below rated power)
Frequency Response 20 Hz - 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power)
Protection Circuits Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection
Power Supply
UREC™ universal mains switch mode power supply with Power Factor Correction (PFC)
and integral standby converter
Operating Voltage/Frequency. Universal Mains, 100-240V, 50-60Hz
Standby Consumption 0.5 W (Energy Star & ErP 1275/2008/EC compliant)
Accessories
2x Rack ears (supplied with PowerZone™ 1004)
1x 1/2 rack plate extension
2x 1/2 rack mounting
2x Rear supports
Power Ratings 1% THD @ 120VAC and 230VAC
Surface Mount Cubs
Active/Passive: Passive
Number of Included Speakers: 2
Speaker Configuration: Full-Range
Power Handling: 12 W RMS
48 W Peak
Impedance: 6 Ohms (Nominal)
Full-Range Driver: 1x 2.5" / 6.3 cm
Frequency Range : 170 Hz to 20 kHz -10 dB
Surface Acoustimass Base
Product Type : Subwoofer
Active/Passive: Passive
200 Watt - 40 - 315 Hz - 5 Ohm - wall-mountable - wired
