Offering remarkable low end for its size and clear, intelligible highs, the Bose Professional DesignMax DM8SE is a 2-way coaxial surface-mount loudspeaker that utilizes a dispersion alignment system to provide phase-accurate audio and a consistent listening experience. The speaker includes a powder coated U-bracket for easy installation. Surface-mount pan-and-tilt and ceiling-mount brackets are available separately.
The DM8SE is part of the DesignMax series speakers, which consistently share a tonal quality, allowing you to mix and match between 12 sets of speakers without any noticeable sonic differences. With an elegant form factor and minimum-bezel grille, the DM8SE offers a modern aesthetics and practical features such as removable logos.
Key Features
Deliver rich lows and clear, intelligible highs with coaxial two-way drivers—no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
Install easily with industry-standard accessories—all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Deliver high SPL for clear foreground music
Install DM8SE outside—IP55 rating with standard aluminum grille for outdoor use
Combine DesignMax models to complete any design, big or small—12 loudspeakers to mix and match, from 2", low-profile models to 8", high-SPL compression-driver loudspeakers and outdoor-rated optionsItems Included

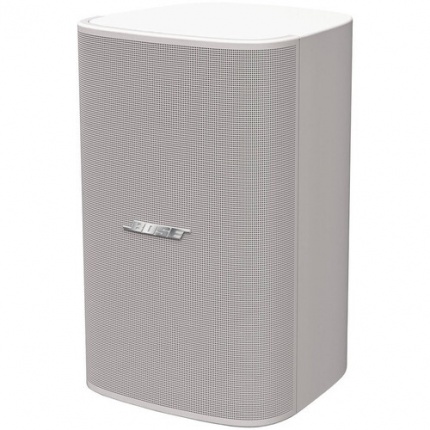

Bose Professional DesignMax DM8SE Passive Surface-Mount 2-Way Coaxial Loudspeaker (White)
U-BracketActive/Passive
Passive
Number of Included Speakers
2
Speaker Configuration
2-Way
Power Handling
600 W Peak
300 W Program
150 W RMS
Constant Voltage / Transformer Taps
70 V:
80 / 40 / 20 / 10 / 5 / 2.5 W or 8 Ohms Bypass
100 V:
80 / 40 / 20 / 10 / 5 W or 8 Ohms Bypass
Show Less
Impedance
8 Ohms
HF Driver
1x 1" / 25.4 mm Compression Driver
LF Driver
1x 8" / 203.2 mm Woofer
Frequency Range
52 Hz to 20 kHz -10 dB
Color
White
