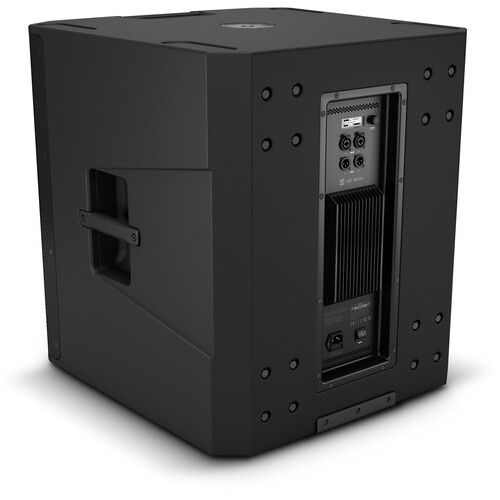

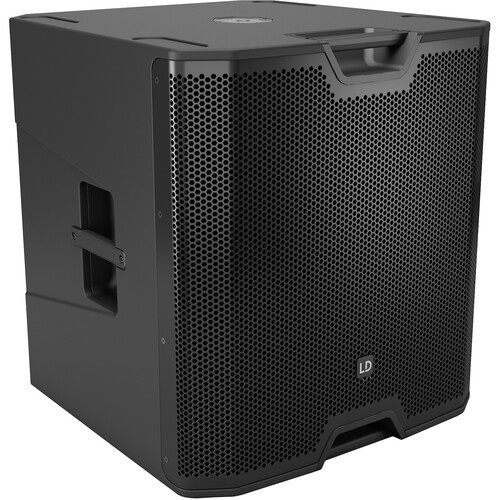

LD Systems ICOA SUB 15 A Powered 15" Bass-Reflex Subwoofer

Add powerful low-frequency sound reproduction to your PA setup with the LD Systems ICOA SUB 15 A, a powered 15" bass-reflex subwoofer with DynX DSP processing, well suited for DJs, singer-songwriters, and rock or party bands, as well as lectures and multimedia presentations.

The subwoofer features a 1600W Class-D amplifier which drives the 15" woofer and reproduces frequencies as low as 36 Hz with a maximum SPL of 131 dB, plenty of volume to cover up to 200 patrons. The DynX DSP offers three crossover frequencies (80, 100, and 120) and a cardioid mode, which is great for controlling stage volume when using multiple subwoofers. You can also fine-tune the subwoofers performance with the polarity-reverse switch and the acoustic delay, which offers up to 10m delay times. The rugged housings made of 18mm laminated wood can be stacked, while the M20 thread on top lets you mount the main speakers using a speaker pole. A power cord is included.

At a Glance

• 15" subwoofer for powerful low-end up to 36 Hz
• 131 dB maximum SPL and 1600W peak power through highly efficient digital Class-D power amplifier
• Optimized bass-reflex ports
• DynX DSP with four application presets (three crossover frequencies, cardioid mode)
• Switchable signal polarity and adjustable delay line for up to 10 meters

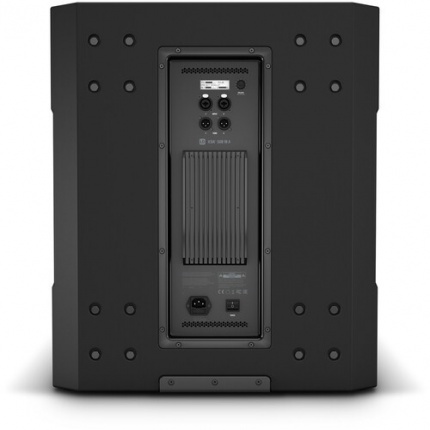

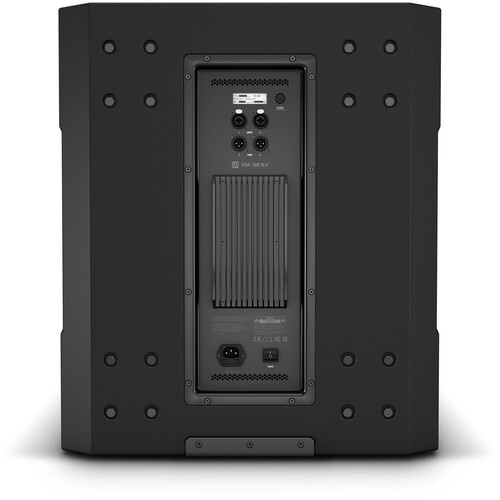

• Two combo XLR-1/4" TRS inputs and two XLR outputs\
• 18mm rugged plywood housing and heavy-duty grill
• Four aluminum handles with ergonomic rubber surfaces
• Securely stackable with four stacking grooves
• M20 thread for distance pole

Items Included
LD Systems ICOA SUB 15 A Powered 18" Bass-Reflex Subwoofer
Power Cord
