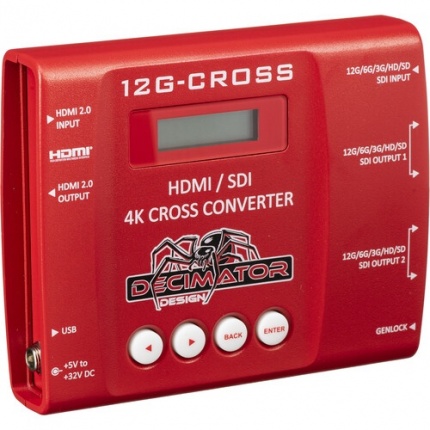

Combining capabilities usually reserved for a computer-controlled converter, the DECIMATOR 12G-CROSS 4K HDMI/SDI Cross Converter with Scaling and Frame Rate Conversion is an independent device that features both HDMI and a 12G/3G/HD/SD-SDI input, and can cross-convert either signal to the other. It features a built-in scaler and frame rate converter, allowing you to convert the input signal to your required output standard in 3249 possible conversion combinations, and it supports 294 VESA formats via the HDMI input.
The 12G-CROSS features one HDMI 2.0 output and two pairs of 12G/3G/HD/SD-SDI outputs, controllable via 57 selectable conversion modes to fit your needs. This converter does not require a computer or DIP switches to control as it incorporates a small LCD screen for menu functions, and four buttons for control. It comes with a USB cable, a power supply, and features a threaded locking power socket to prevent accidental power loss during use.
57 Conversion Formats
- (3840 or 4096) x 2160p: 50/59.94/60 via HDMI or 12G-SDI
- (3840 or 4096) x 2160p: 30/29.97/25/24/23.98 via HDMI or 6G-SDI
- (1920 or 2048) x 1080p: 50/59.94/60 via HDMI or 3G-SDI (Level A or B)
- 1920 x 1080i: 60/59.94/50 via HDMI or HD-SDI
- (1920 or 2048) x 1080p: 30/29.97/25/24/23.98 via HDMI or HD-SDI
- (1920 or 2048) x 1080PsF: 30/29.97/25/24/23.98 via HD-SDI
- 1280 x 720p: 60/59.94/50/30/29.97/25 via HDMI or HD-SDI
- 1280 x 720p: 24/23.98 via HD-SDI
- 720 x 480p59.94 or 720 x 576p50 via HDMI
- 720 x 480i59.94 (NTSC) or 720 x 576 (PAL) via HDMI or SD-SDI
The HDMI or SDI input can be scaled and/or frame-rate converted to the required standard.
Supports 294 VESA formats via the HDMI input

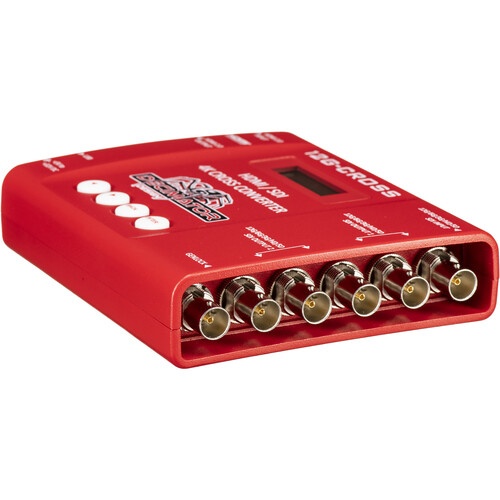

Four SD/HD/3G/12G-SDI outputs allow the converter to be used as a 1 to 4 distribution amplifier. SDI output pair 1 can either be a copy of the SDI input (default) or the same as pair 2.
The 12G-CROSS incorporates an LCD and button-controlled system. This gives you access to features that usually require a computer. Adjusting DIP switches or having access to a computer to change a simple setting are not needed.
The audio pairs in the SDI and HDMI outputs can be rearranged as required.

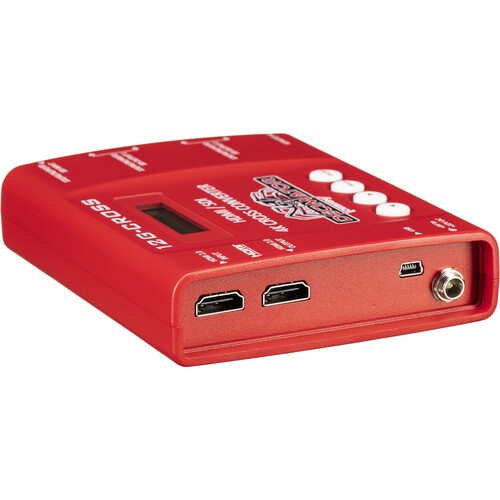

The unit incorporates a USB port for control and firmware updates.Inputs/Outputs
Video Inputs
1x HDMI (2.0) Female
1x BNC (12G-SDI) Female
Video Outputs
1x HDMI (2.0) Female
2x BNC (12G-SDI) Female
2x BNC (12G-SDI) Female (Loop Output)
Other I/O
1x Unspecified Interface Input
1x BNC Genlock
Format Support
Input Video Format
HDMI
DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 25/29.97/30/50/59.94/60 fps
576p at 50 fps
480p at 59.94 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
SDI
DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 23.98/24/25/29.97/30/50/59.94/60 fps
576i / 625 lines 50 fps
480i / 525 lines 59.94 fps
Output Video Format
HDMI
DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 25/29.97/30/50/59.94/60 fps
576p at 50 fps
480p at 59.94 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
SDI
DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 23.98/24/25/29.97/30/50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio
HDMI/SDI: 2-Channel
Standards
Video Standard Compliance
SMPTE 259M/274M/292M/296M/ST-2036
HDCP Support
No
