Neumann KM 184 NI Stereo Set

S$ 2,265.14
(S$ 2,265.14 excl GST)
Special order! Expected availability: 5+ weeks Not refundable/exchangeable
What?! Seen it cheaper somewhere?
Please tell us so we can try to match it!

State-of-the-art small diaphragm condenser microphone set

Key Features:
  • Uniform cardioid pattern without off-axis coloration
  • Linear frequency response with a slight treble lift
  • Very low self-noise (13 dB-A)
  • Low impedance output for long cable runs without transmission losses
  • Transformerless circuitry
  • Compact size, visually unobtrusive
Show moreShow less
  • The Neumann Series 180 consists of three members with different pickup patterns: KM 183 (omni), KM 184 (cardioid), and KM 185 (hypercardioid), thus covering the majority of stage and studio applications. Because the Series 180 microphones are non-modular, they are more cost-effective than the modular Series KM A and KM D (which offer a wide range of interchangeable capsule heads for analog and digital output stages).

    Cardioid
    Despite its attractive pricing, the KM 184 offers state-of-the-art Neumann engineering. Its cardioid pattern is frequency-independent; rejection of rearward sound (180°) is excellent, even at low frequencies. In practical usage, there is no sound coloration over a wide pickup angle, which is crucial in multi-microphone setups and for precise stereo/surround imaging. The KM 184’s frequency response is very smooth and linear with a slight treble lift around 9 kHz for added brilliance. Its innovative transformerless head amplifier offers a wide dynamic range of 125 dB and is carefully designed to maintain the capsule’s sonic integrity. The KM 184 has a very low self-noise of only 13 dB-A and can handle high sound pressure levels of up to 138 dB free from distortion. Due to its low impedance output stage, the KM 184 can drive long cable runs of up to 300 meters (1000 feet) without transmission losses.

    Applications
    The KM 184 is a universal microphone for studio and stage applications. Its transparent sound makes the KM 184 a superb microphone for acoustic instruments, such as piano, percussion, drums, acoustic guitar, upright bass, violin, cello, woodwinds, and brass. The KM 184 can be used for soloists as well as ensembles. Thanks to its superior off-axis behavior, the KM 184 is an excellent microphone for stereo and surround recording with perfect imaging. Although the KM 184 is not specially optimized for the human voice, it is often used for classical vocals and whenever sonic authenticity is paramount. Due to its small size, the KM 184 is visually unobtrusive and well suited to TV and radio applications.

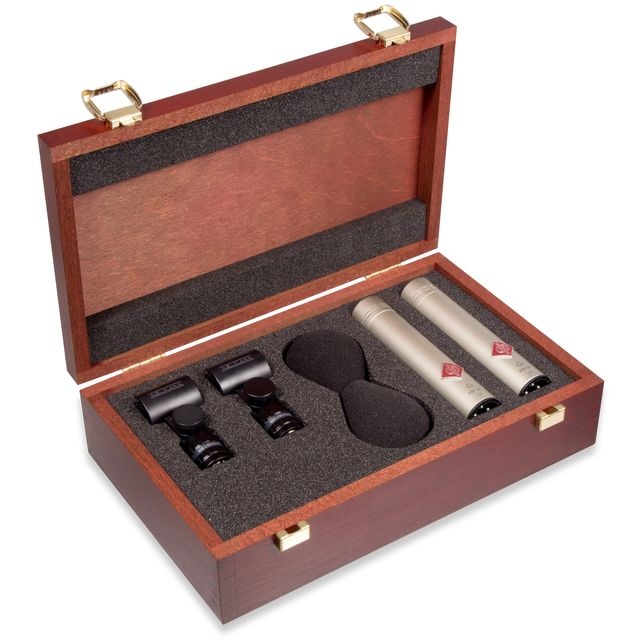

    In The Box:

     Neumann SKM 184 MT Stereo Matched Microphone Pair (Nickle)
    2 x Neumann KM 184 MT Microphone (Nickle)
    2 x Neumann WNS100 Windscreen 45mm (Black)
    2 x Neumann SG21/17MT Swivel Mount with Clamp for 21mm Mics
    Wooden Jeweler's Case

  • Acoustical operating principle Pressure gradient transducer
    Directional Pattern Cardioid
    Frequency Range 20 Hz ... 20 kHz
    Sensitivity at 1 kHz into 1 kohm 15 mV/Pa ± 1 dB
    Rated Impedance 50 ohms
    Rated load impedance 1 kohms
    Equivalent noise level, CCIR¹⁾ 22 dB
    Equivalent noise level, A-weighted¹⁾ 13 dB-A
    Maximum SPL for THD 0.5%²⁾ 138 dB
    Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾ 72 dB
    Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾ 81 dB
    Maximum output voltage 10 dBu
    Supply voltage (P48, IEC 61938) 48 V ± 4 V
    Current consumption (P48, IEC 61938) 3.2 mA
    Matching connector XLR 3 F

    Dimensions


    Package Weight
    0.832kg
    Box Dimensions (LxWxH)
    25.14 x 16.25 x 6.85cm
