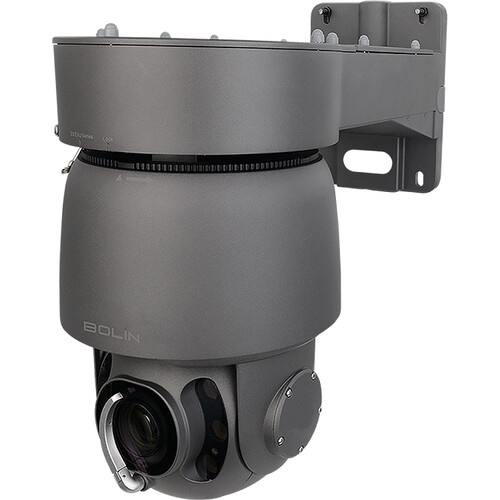

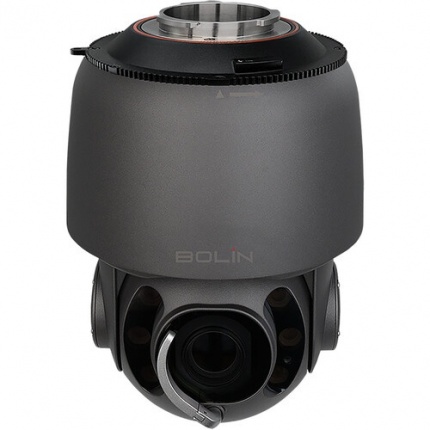

The SD530H Outdoor 3G-SDI PTZ Camera from Bolin Technology is optimized for outdoor surveillance or traffic monitoring applications while producing clear broadcast-quality, simultaneous dual-output 1080p60 3G-SDI and IP video in inclement weather conditions. With 30x optical zoom and 12x digital zoom, along with numerous image parameters, the camera can be controlled through a local or IP environment using LAN, RS-422, or RS-485 connections.
Low-latency mode, advanced autofocus, a wide dynamic range, a built-in visibility enhancer, and a built-in stabilizer also ensure high-quality broadcast in H.264, H.265, or MJPEG formats. Outdoor enhancements include a reinforced rain wiper, corrosion-resistant coating, a secure pendant mount, and a locking safety chain. Power to the device can be provided with either an AC or DC 24V power adapter or via a PoE++ connection.
In the Box
Bolin Technology SD530H Outdoor 3G-SDI PTZ Camera
Power Adapter
Power Connector
Safety Chain
Limited 2-Year Manufacturer WarrantyImage Sensor : 1/2.8"-Type CMOS
Sensor Resolution : Effective: 2.13 Megapixel (1920 x 1080)
Shutter Speed :1/10000 to 1/1 Second
Optical Zoom Ratio : 30x
Max Digital Zoom : 12x
External Recording Modes

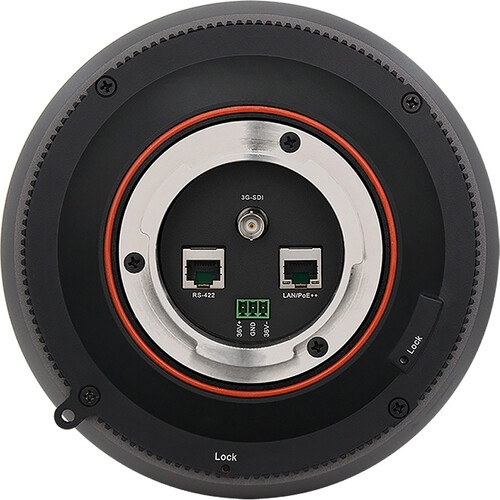

SDI/BNC / RJ45
1920 x 1080p
Broadcast Output : NTSC/PAL
IP Streaming :
H.264, H.265
1280 x 720 to 1920 x 1080
Supported Control Protocols :
IP
ONVIF Profile S
Pelco-D
Pelco-P
VISCA
PoE Support
PoE++ 802.3bt
Mounting
1x Proprietary for Ceiling
