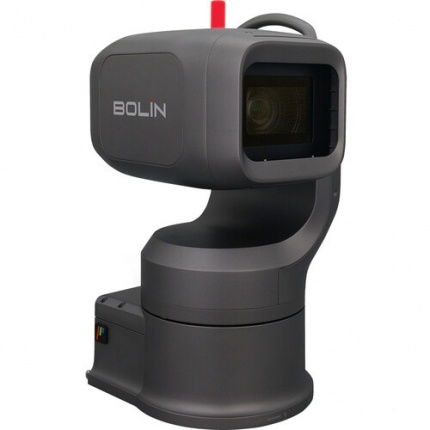

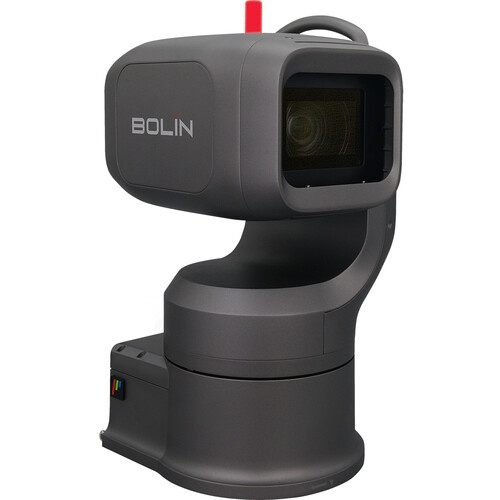

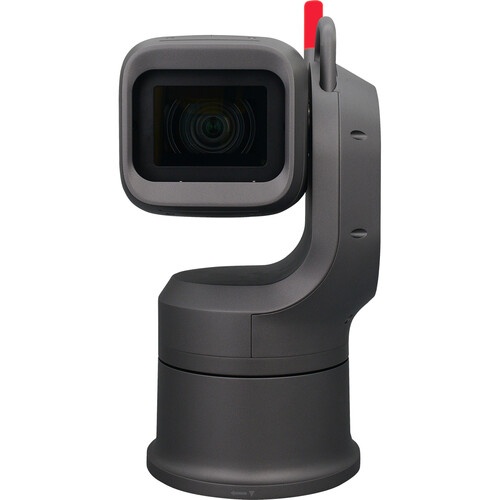

Bring UHD 4K quality video to your production with the dark gray EXU248F EX-ULTRA 4K30 High-Bandwidth Outdoor PTZ Camera from Bolin. This versatile PTZ camera outputs up to UHD 4K30 via 6G-SDI, HDMI, and IP streaming using a large 1" Sony Exmor R CMOS sensor with 14.2MP. It captures video using a Zeiss Vario-Sonnar T lens that features 48x zoom in 1080p, 18x zoom in 4K, and a wide 64.6° angle-of-view. This outdoor camera features an IP67-rated, nitrogen-filled housing, a wiper, a heater, and a defroster, and the lens features a salt-resistant coating for use in all weather conditions.
A tally light can be added and removed for use in multi-camera environments. The camera can output two simultaneous IP streams via RTP, RTMP, RTSP, or SRT using H.264, H.265, MJPEG formats, and streaming supports up to UHD 4K30. The camera can be controlled via the included IR remote or via IP using ONVIF or VISCA-over-IP, and via serial using VISCA, Pelco-P or Pelco-D, or via FreeD with an optional firmware upgrade. Audio can be embedded or de-embedded from the stream using the Hirose audio port. An optional fiber-based SDI module can be added using the SFP slot. The camera can be powered using PoE++ or via an optional power adapter.
In the Box
Bolin Technology EXU248F EX-ULTRA 4K30 High-Bandwidth Outdoor PTZ Camera (Dark Gray)
IR Remote Control
Tally Light Attachment
Safety Wire
Screw
Cable Cover
12 x Seal Ring
4 x Panel Bolt
Limited 1-Year Manufacturer WarrantyImage Sensor : 1"-Type CMOS
Sensor Resolution
Actual: 8.29 Megapixel (3840 x 2160)
Effective: 14.2 Megapixel (3840 x 2160)
Shutter Speed :
1/10000 to 1/1 Second
Optical Zoom Ratio : 48x
Max Digital Zoom : 2x ( in 1080p)
External Recording Modes :
4:2:2/4:2:0 10/12-Bit via SDI/BNC / HDMI
3840 x 2160 at 23.98/24.00/25/29.97 fps
1920 x 1080p at 24.00/25/29.97/50/59.94/60.00 fps
1920 x 1080i at 50/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
RJ45
3840 x 2160 at 25/30.00 fps
1920 x 1080p at 25/30.00/50/60.00 fps
1280 x 720 at 50/60.00 fps
Broadcast Output
NTSC/PAL
IP Streaming
H.264, H.265, MJPEG, NDI, RTMP, RTP, RTSP, TCP, UDP
3840 x 2160 at 25p, 30p
1920 x 1080 at 25p, 30p, 50p, 60p
1280 x 720 at 50p, 60p
Supported Control Protocols
IP
Pelco-D
Pelco-P
VISCA
PoE Support
PoE++ 802.3bt
Mounting
1x 1/4"-20 Female
1x 3/8"-16 Female
