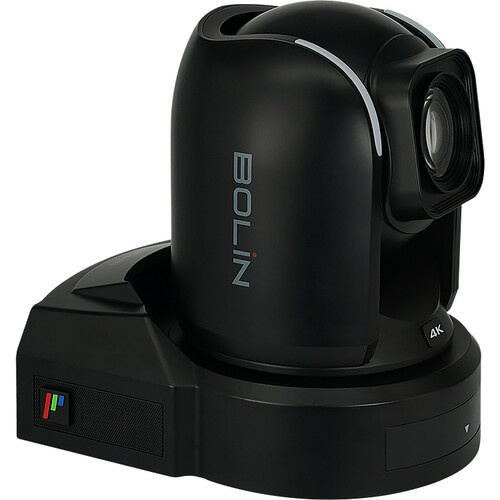

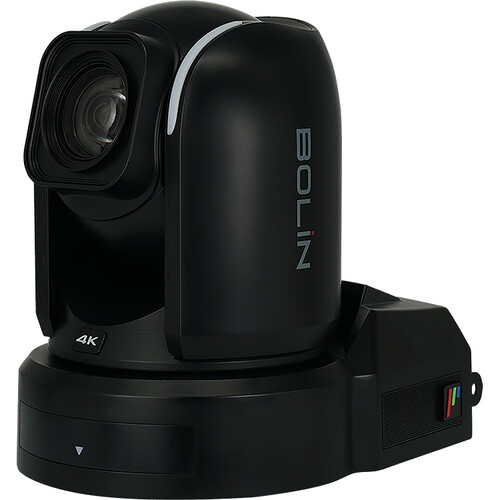

Bring UHD 4K quality video to your production with the dark gray R9-420F Indoor 4K60 PTZ Camera from Bolin. This versatile PTZ camera outputs up to UHD 4K60 via 12G-SDI, HDMI, and IP streaming. It features a large 1/2.8" CMOS sensor with 8.29MP image capture, a 20x optical zoom, an additional 16x digital zoom, a built-in tally light, and a wide 78.6° angle-of-view.
The camera can output two simultaneous IP streams via RTP, RTMP, RTSP, or SRT using H.264, H.265, MJPEG formats, and streaming supports up to UHD 4K60. The camera can be controlled via the included IR remote or via IP using ONVIF or VISCA-over-IP, and via serial using VISCA, Pelco-P or Pelco-D, or via FreeD with an optional firmware upgrade. Audio can be embedded or de-embedded from the stream using the LEMO-type audio port. An optional fiber-based SDI module can be added using the SFP+ slot. The camera can be powered using PoE++ or via an optional power adapter.
In the Box
Bolin Technology R9-230H Indoor Full HD PTZ Camera (Black)
Power Adapter
Power Cable
IR Remote Control
RJ45 to RS-422 Extension Cable
Mounting Screw Set
Dust Cover
Safety Cable
Lens Cap
Limited 2-Year Manufacturer WarrantyImage Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 8.29 Megapixel (3840 x 2160)
Shutter Speed :1/10000 to 1/1 Second
Optical Zoom Ratio : 20x
Max Digital Zoom : 16x
External Recording Modes :
4:2:2/4:2:0 10/12-Bit via SDI/BNC / HDMI
3840 x 2160 at 23.98/24.00/25/29.97/50/60.00 fps
1920 x 1080p at 24.00/25/29.97/50/59.94/60.00 fps
1920 x 1080i at 50/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
RJ45
3840 x 2160 at 25/30.00/50/60.00 fps
1920 x 1080p at 25/30.00/50/60.00 fps
1280 x 720 at 50/60.00 fps
Broadcast Output : NTSC/PAL
IP Streaming :
H.264, H.265, MJPEG, RTMP, RTP, RTSP, TCP, UDP
3840 x 2160 at 25p, 30p, 60p
1920 x 1080 at 25p, 30p, 50p, 60p
1280 x 720 at 50p, 60p
Supported Control Protocols
IP
Pelco-D
Pelco-P
VISCA
PoE Support
PoE++ 802.3bt
Mounting
1x 1/4"-20 Female
