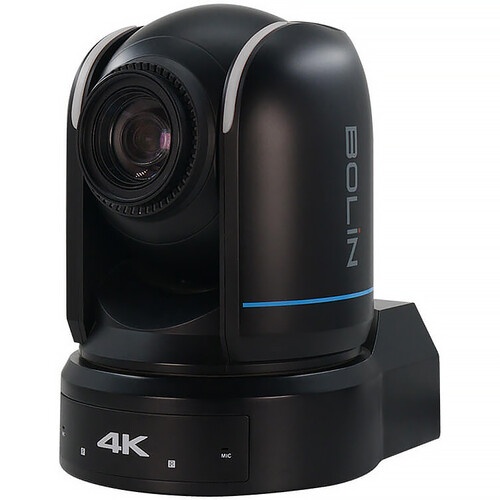

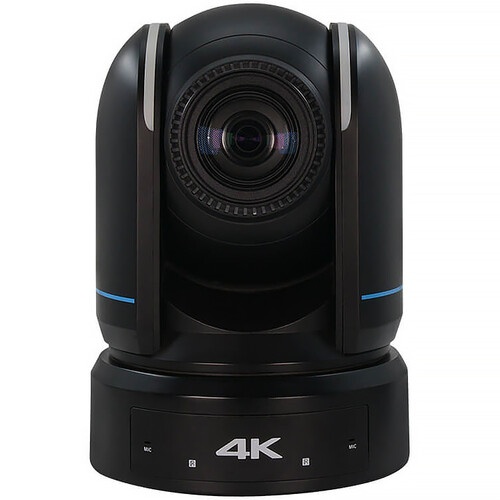

Capture professional 4K or HD video for your video conferencing, education, house of worship, or other video application with this black 4K30 IP/HDMI/3G-SDI High-Bandwidth PTZ Camera with 18x Optical Zoom from Bolin Technology. This remotely controllable PTZ camera features a dome-style housing, and it allows you to capture up to 4K30 resolution video and output via HDMI, 3G-SDI, USB-C, or IP dual streaming via its Gigabit RJ45 Ethernet interface. Additional features include a 18x optical zoom, an additional 16x digital zoom, a ±170° panning range, a ±120° tilting range, auto or manual focus, a wide dynamic range, and serial/IP control. It also features a 3.5mm mic/line audio input and output, and it features a durable magnesium alloy housing.

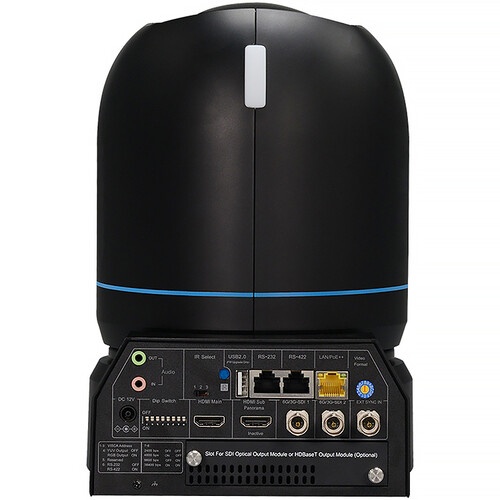

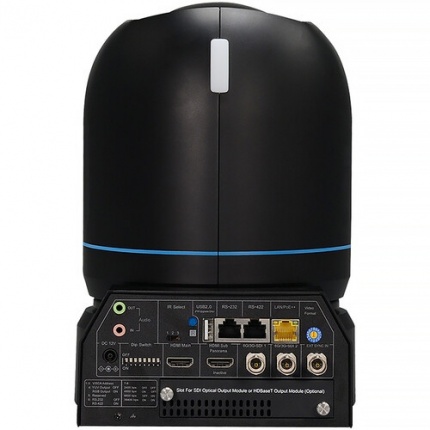

The large, low-noise 1" 14.2MP Sony CMOS sensor ensures a high signal-to-noise ratio, while advanced 2D/3D noise-reduction technology further reduces image noise, so an even sharper image is delivered in low light. The RJ45 Ethernet port allows you to control and configure the camera via IP, and it also allows simultaneous dual streaming via IP for a live Internet stream. You can also output the video via USB with UVC support, making it easy to interface with a computer to send video and audio to a streaming or recording application. There is also an audio line input on the back to input stereo audio into your streams and video output.
The pan/tilt/zoom mechanism uses quiet, smooth movements, controllable using the included IR remote controller, ONVIF and VISCA-over-IP control, or the RS-232 input/outputs that support VISCA, Pelco-D, and Pelco-P protocols for use with a separately available controller. You can store up to 255 preset positions using an optional serial controller, or store six presets when using the included IR remote. You can power the camera using a networked PoE (Power-over-Ethernet) switch or the included power adapter. The camera also includes an RS-232 control cable.
In the Box
Bolin Technology 4K30 IP/HDMI/3G-SDI High-Bandwidth PTZ Camera with 18x Optical Zoom (Black)
IR Remote Control
Power Adapter
Power Cable
Limited 2-Year Manufacturer WarrantyImage Sensor
1"-Type CMOS
Sensor Resolution
Effective: 14.2 Megapixel (3840 x 2160)
Shutter Type
Mechanical Focal Plane Shutter and Electronic Rolling Shutter
Shutter Speed
1/8 to 1/10000 Second
Optical Zoom Ratio
18x
Max Digital Zoom
24x ( in 1080p)
External Recording Modes
10-Bit via HDMI
3840 x 2160 at 23.98/24.00/29.97 fps
1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
4:2:2 10-Bit via SDI/BNC
1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Broadcast Output
NTSC/PAL
IP Streaming
FTP, H.264, H.265, HTTP, RTMP, RTMPS, RTP, RTSP, SRT, TCP, UDP
3840 x 2160 at 25p, 30p
1920 x 1080 at 25p, 30p, 50p, 60p
1280 x 720 at 25p, 30p, 50p, 60p
Supported Control Protocols
IP
Pelco-D
Pelco-P
VISCA
PoE Support
PoE++ 802.3bt
Mounting
1x 1/4"-20 Female
