stdClass Object
(
[product_id] => 7107
[product_parent_id] => 0

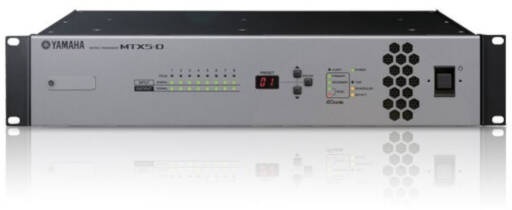

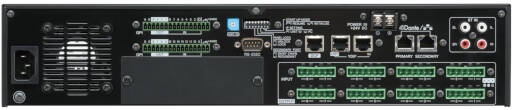

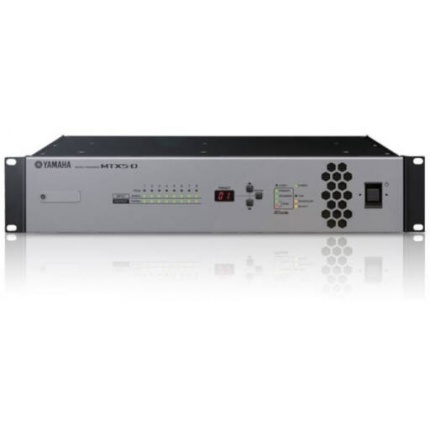

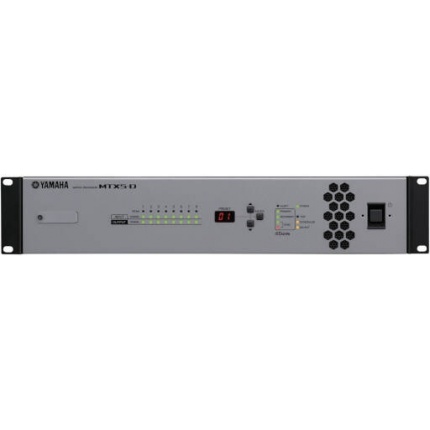

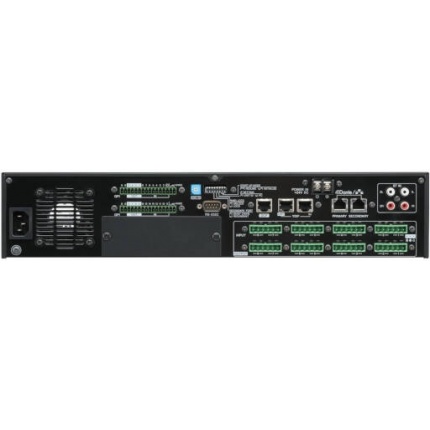

[product_name] => Yamaha MTX5-D Matrix Processor
[product_short] => Matrix Processor for all your routing needs
[product_description] => Flexible routing options
Both MTX models feature eight channels of mic/line input and eight channels of analog output, plus 16 channels of YDIF digital I/O and an SD card slot for playback of MP3/WAV files. The MTX5-D adds even more, with 16 channels of Dante digital I/O and a Mini-YGDAI card slot which allows you to install even more analog or digital I/O (card sold separately). Two RCA stereo line inputs, a 9-pin RS232 remote port, and included Euroblock plugs sweeten the deal. Oh, and you can daisy-chain up to four MTX devices together! This incredible flexibility is sure to meet the commercial audio needs of any small to mid-sized business such as restaurants, retail stores, banquet halls, and more.
Useful DSP Functions
MTX units both have handy DSP functions for both input and output. On the input side, you’ll find 3-band parametric EQ, compressor/gate, auto gain control, priority duckers, and feedback suppressors. For output processing, you’ll have 4-band parametric EQ, speaker processing, and delay. This functionality allows you to tweak your business’s audio without the need for additional effects processors. There’s even a library of Yamaha-manufactured speakers built-in to the MTX-MRX software, allowing easy selection of settings that optimize the performance of your business’s speakers.
Easy to configure, control, and expand
The included MTX-MRX software makes it effortless to setup your MTX unit. Its operating screens simulate the workflow of designing your system, so you won’t get lost at any stage of navigation. Your MTX is also easy to control by connecting a DCP series wall-mounted control panel, going remote with a dedicated iPhone app, or using the supplied connectors for control via an AMX/Crestron touch panel device. And, if one MTX unit just isn’t enough, you can easily daisy chain up to four MTX units together
Yamaha MTX5-D Matrix Processor Features:
34 x 16 zone matrix processor designed to be the heart of your business’s audio system.
Very flexible DSP processing options fit a wide variety of commercial applications such as restaurants, retail stores, banquet halls, and more
8-channel mic/line input and 8-channel analog output
16-channel YDIF digital I/O
16-channel Dante digital I/O
1 Mini-YGDAI Card slot for adding more analog or digital I/O
SD Card Slot for playback of MP3/WAV files
2 RCA stereo line inputs
DSP functions include auto gain control, ambient noise compensation, 3-band parametric EQ, compressor/limiter and gate, reverb/delay effects, 8 priority duckers, and 8 feedback suppressors
Outputs feature 4-band parametric room EQ, speaker processor, and delay
Ethernet port
9-pin RS232 remote port
Easy to configure via the “MTX-MRX Editor” software
Built-in library of Yamaha speaker parameters for maximizing your speakers’ sound
Dedicated iPhone app allows remote volume and preset control
Includes connectors for AMX/Creston touch panel device control
Daisy chain up to 4 MTX units, 8 DCP series control panels, or up to 20 devices such as the Yamaha XMV, EXi8, or Exo8
Dimensions (W x H x D): 18.9 inches x 3.5 inches x 13.8 inches, 2RU
Weight: 13.9 lbs.
Power supply voltage: 110V–240V, 50/60Hz (US and Canada)
Power consumption: 65W max.
Heat dissipation (per hour): 55.9 kcal max.
[product_quantity] => -1
[product_code] => YAMMTX5D
[product_published] => 1
[product_hit] => 1926
[product_created] => 1717658910
[product_sale_start] => 0
[product_sale_end] => 0
[product_delay_id] => 0
[product_tax_id] => 11
[product_type] => main
[product_vendor_id] => 0
[product_manufacturer_id] => 282
[product_url] =>
[product_weight] => 7.000
[product_keywords] =>
[product_weight_unit] => kg
[product_modified] => 1717659175
[product_modified_by] => 11653
[product_meta_description] => Flexible routing options
Both MTX models feature eight channels of mic/line input and eight channels of analog output, plus 16 channels of YDIF digital I/O and an SD card slot for playback of MP3/WAV files. The MTX5-D adds even more.
[product_dimension_unit] => cm
[product_width] => 50.000
[product_length] => 40.000
[product_height] => 15.000
[product_max_per_order] => 0
[product_access] => all
[product_group_after_purchase] =>
[product_min_per_order] => 0
[product_contact] => 0
[product_display_quantity_field] => 0
[product_last_seen_date] => 1750100227
[product_sales] => 0
[product_waitlist] => 0
[product_layout] =>
[product_average_score] => 0
[product_total_vote] => 0
[product_page_title] =>
[product_alias] => yamaha-mtx5-d-matrix-processor
[product_price_percentage] => 0.0000000
[product_msrp] => 0.0000000
[product_canonical] => /category/product/7107-yamaha-mtx5-d-matrix-processor/category_pathway-89
[product_warehouse_id] => 1
[product_quantity_layout] =>
[product_sort_price] => 3760.55046
[product_description_raw] =>
[product_description_type] => html
[product_option_method] =>
[product_condition] =>
[product_key_feats] => 8ch mic/line input and 8ch analog output
16ch YDIF digital I/O
16ch Dante digital I/O
1x MY Card slot
SD Card Slot for playback
[product_lead_time] =>
[product_specs_all] => Specifications
Dimensions (W x H x D): 480(W) x 88(H) x 351(D)mm, 2U
Weight: 6.3kg
Power supply voltage: Japan: 100V 50/60Hz, US/Canada: 110V–240V 50/60Hz, Others: 100V–240V 50/60Hz
Power consumption: 65W max.
Heat dissipation (per hour): 55.9kcal max.
Operating temperature range: 0 °C–40 °C
Storage temperature range: -20 °C–60 °C
NC value: 23 (1m from the front panel)
Number of memories Preset memories: 50
Maximum number of simultaneously usable devices: Four MTX devices (However in a system in which one to four MTX devices are connected, a total of up to 20 devices including devices such as the EXi8, EXo8, XMV can be connected.)
Power cord length: 2.5m
Included items: Power cord, Euroblock plugs (3-pin, tabbed) x 16, Euroblock plugs (16-pin) x 2, cable ties x 16, owner’s manual
Separately sold options: DCP1V4S-US/EU, DCP4S-US/EU, DCP4V4S-US/EU digital control panels
Sampling frequency: 48kHz/44.1kHz
Signal delay: Less than 3.0ms (AD-DA @48kHz)
Frequency response: 20Hz to 20kHz, -1.5dB min, 0dB typ., +0.5dB max.
Total harmonic distortion: Less than 0.05% (+4dBu, Gain:-6dB); less than 0.1% (+4dBu, Gain:+66dB)
Dynamic range: 107dB (Gain:-6dB)
Equivalent input noise: (EIN) -126dBu (Gain: +66dB)
Crosstalk / Channel separation: -100dB (@1kHz)
Maximum cable length: [YDIF] connector: 30 meters (Cable length between devices)
[DCP] connector: 200 meters (total cable length from the MTX5-D to the last DCP)
Indicators:
INPUT PEAK: RED -3dBFS
INPUT SIGNAL: GREEN -40dBFS
OUTPUT SIGNAL: GREEN -40dBFS
Phantom power: 48V (per channel; individually settable)
[product_customs_cat] => audio_video
[product_refund] => 0
[product_warranty] =>
[product_name_lta] =>
[product_short_lta] =>
[product_alt_search] =>
[product_backinstock] =>
[product_specialorder] => 1
[product_soldout] => 0
[product_leadtime] => 5+ weeks
[product_stock] => 0
[product_dl1_title] =>
[product_dl1_file] =>
[product_dl2_title] =>
[product_dl2_file] =>
[product_dl3_title] =>
[product_dl3_file] =>
[product_dl4_title] =>
[product_dl4_file] =>
[product_dl5_title] =>
[product_dl5_file] =>
[product_dl6_title] =>
[product_dl6_file] =>
[product_dl7_title] =>
[product_dl7_file] =>
[product_dl8_title] =>
[product_dl8_file] =>
[product_dl9_title] =>
[product_dl9_file] =>
[product_dl10_title] =>
[product_dl10_file] =>
[product_mpn] =>
[product_gtin] =>
[product_discontinued] => 0
[product_intnotes] =>
[product_category_id] => 49691
[category_id] => 89
[ordering] => 91
[alias] => yamaha-mtx5-d-matrix-processor
[options] => Array
(
)
[bundles] => Array
(
)
[images] => Array
(
[0] => stdClass Object
(
[file_id] => 21123
[file_name] => 154eba5f8ffd441385598995cd2dce7f_12073_e1e46cdb1f1014cac4c55f8eb1bc62f8
[file_description] =>
[file_path] => 154eba5f8ffd441385598995cd2dce7f_12073_e1e46cdb1f1014cac4c55f8eb1bc62f8.jpg
[file_type] => product
[file_ref_id] => 7107
[file_free_download] => 0
[file_ordering] => 0
[file_limit] => 0
)
[1] => stdClass Object
(
[file_id] => 21124
[file_name] => photoviewer_processor_mtx5d_front_91c8932dbff90e0e2618980507890e82
[file_description] =>
[file_path] => photoviewer_processor_mtx5d_front_91c8932dbff90e0e2618980507890e82.jpg
[file_type] => product
[file_ref_id] => 7107
[file_free_download] => 0
[file_ordering] => 1
[file_limit] => 0
)
[2] => stdClass Object
(
[file_id] => 21125
[file_name] => photoviewer_processor_mtx5d_rear_b1526e60fc044a5ad84a0466dd0c2f41
[file_description] =>
[file_path] => photoviewer_processor_mtx5d_rear_b1526e60fc044a5ad84a0466dd0c2f41.jpg
[file_type] => product
[file_ref_id] => 7107
[file_free_download] => 0
[file_ordering] => 2
[file_limit] => 0
)
)
[prices] => Array
(
[0] => stdClass Object
(
[price_id] => 6401
[price_currency_id] => 140
[price_product_id] => 7107
[price_value] => 3760.55046
[price_min_quantity] => 0
[price_access] => all
[price_users] =>
[price_site_id] =>
[price_start_date] => 0
[price_end_date] => 0
[price_value_with_tax] => 3760.55046
[taxes_added] => 1
[taxes] => Array
(
)
)
)
[badges] =>
[userID] => 0
[userZone] => 223
[userCountry] => United States of America
[brandObj] => stdClass Object
(
[category_id] => 282
[category_parent_id] => 10
[category_type] => manufacturer
[category_name] => Yamaha
[category_description] =>
[category_published] => 1
[category_ordering] => 89
[category_left] => 503
[category_right] => 504
[category_depth] => 2
[category_namekey] => manufacturer_1633063519_1910261030
[category_created] => 1633063519
[category_modified] => 1681047307
[category_access] => all
[category_menu] => 0
[category_keywords] =>
[category_meta_description] => Buy Yamaha Commercial Audio online from the Official Singapore Dealer. Best prices, local stock availability and warranty support by Yamaha Singapore
[category_layout] =>
[category_page_title] => Buy Yamaha Professional Audio online from Singapore
[category_alias] => yamaha
[category_site_id] =>
[category_canonical] => /brand/282-yamaha
[category_quantity_layout] =>
[brand_ships_to] => ship_Yealink_611706349
[category_refund] => 1
[category_banner] => banner-yamaha.jpg
[category_alt_search] =>
)
[can_sell] =>
)
Flexible routing options
Both MTX models feature eight channels of mic/line input and eight channels of analog output, plus 16 channels of YDIF digital I/O and an SD card slot for playback of MP3/WAV files. The MTX5-D adds even more, with 16 channels of Dante digital I/O and a Mini-YGDAI card slot which allows you to install even more analog or digital I/O (card sold separately). Two RCA stereo line inputs, a 9-pin RS232 remote port, and included Euroblock plugs sweeten the deal. Oh, and you can daisy-chain up to four MTX devices together! This incredible flexibility is sure to meet the commercial audio needs of any small to mid-sized business such as restaurants, retail stores, banquet halls, and more.
Useful DSP Functions
MTX units both have handy DSP functions for both input and output. On the input side, you’ll find 3-band parametric EQ, compressor/gate, auto gain control, priority duckers, and feedback suppressors. For output processing, you’ll have 4-band parametric EQ, speaker processing, and delay. This functionality allows you to tweak your business’s audio without the need for additional effects processors. There’s even a library of Yamaha-manufactured speakers built-in to the MTX-MRX software, allowing easy selection of settings that optimize the performance of your business’s speakers.
Easy to configure, control, and expand
The included MTX-MRX software makes it effortless to setup your MTX unit. Its operating screens simulate the workflow of designing your system, so you won’t get lost at any stage of navigation. Your MTX is also easy to control by connecting a DCP series wall-mounted control panel, going remote with a dedicated iPhone app, or using the supplied connectors for control via an AMX/Crestron touch panel device. And, if one MTX unit just isn’t enough, you can easily daisy chain up to four MTX units together
Yamaha MTX5-D Matrix Processor Features:
34 x 16 zone matrix processor designed to be the heart of your business’s audio system.
Very flexible DSP processing options fit a wide variety of commercial applications such as restaurants, retail stores, banquet halls, and more
8-channel mic/line input and 8-channel analog output
16-channel YDIF digital I/O
16-channel Dante digital I/O
1 Mini-YGDAI Card slot for adding more analog or digital I/O
SD Card Slot for playback of MP3/WAV files
2 RCA stereo line inputs
DSP functions include auto gain control, ambient noise compensation, 3-band parametric EQ, compressor/limiter and gate, reverb/delay effects, 8 priority duckers, and 8 feedback suppressors
Outputs feature 4-band parametric room EQ, speaker processor, and delay
Ethernet port
9-pin RS232 remote port
Easy to configure via the “MTX-MRX Editor” software
Built-in library of Yamaha speaker parameters for maximizing your speakers’ sound
Dedicated iPhone app allows remote volume and preset control
Includes connectors for AMX/Creston touch panel device control
Daisy chain up to 4 MTX units, 8 DCP series control panels, or up to 20 devices such as the Yamaha XMV, EXi8, or Exo8
Dimensions (W x H x D): 18.9 inches x 3.5 inches x 13.8 inches, 2RU
Weight: 13.9 lbs.
Power supply voltage: 110V–240V, 50/60Hz (US and Canada)
Power consumption: 65W max.
Heat dissipation (per hour): 55.9 kcal max.Specifications
Dimensions (W x H x D): 480(W) x 88(H) x 351(D)mm, 2U
Weight: 6.3kg
Power supply voltage: Japan: 100V 50/60Hz, US/Canada: 110V–240V 50/60Hz, Others: 100V–240V 50/60Hz
Power consumption: 65W max.
Heat dissipation (per hour): 55.9kcal max.
Operating temperature range: 0 °C–40 °C
Storage temperature range: -20 °C–60 °C
NC value: 23 (1m from the front panel)
Number of memories Preset memories: 50
Maximum number of simultaneously usable devices: Four MTX devices (However in a system in which one to four MTX devices are connected, a total of up to 20 devices including devices such as the EXi8, EXo8, XMV can be connected.)
Power cord length: 2.5m
Included items: Power cord, Euroblock plugs (3-pin, tabbed) x 16, Euroblock plugs (16-pin) x 2, cable ties x 16, owner’s manual
Separately sold options: DCP1V4S-US/EU, DCP4S-US/EU, DCP4V4S-US/EU digital control panels
Sampling frequency: 48kHz/44.1kHz
Signal delay: Less than 3.0ms (AD-DA @48kHz)
Frequency response: 20Hz to 20kHz, -1.5dB min, 0dB typ., +0.5dB max.
Total harmonic distortion: Less than 0.05% (+4dBu, Gain:-6dB); less than 0.1% (+4dBu, Gain:+66dB)
Dynamic range: 107dB (Gain:-6dB)
Equivalent input noise: (EIN) -126dBu (Gain: +66dB)
Crosstalk / Channel separation: -100dB (@1kHz)
Maximum cable length: [YDIF] connector: 30 meters (Cable length between devices)
[DCP] connector: 200 meters (total cable length from the MTX5-D to the last DCP)Indicators:
INPUT PEAK: RED -3dBFS
INPUT SIGNAL: GREEN -40dBFS
OUTPUT SIGNAL: GREEN -40dBFSPhantom power: 48V (per channel; individually settable)
