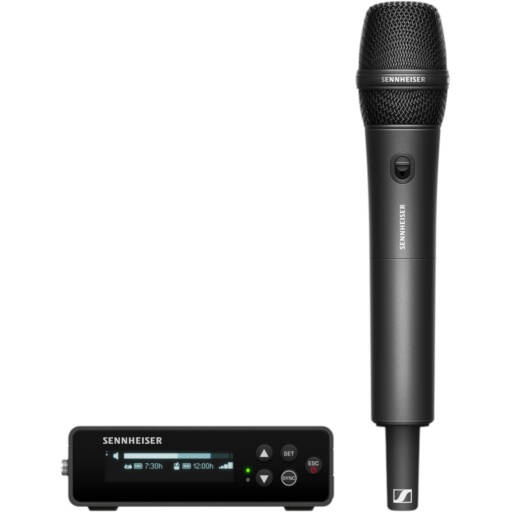

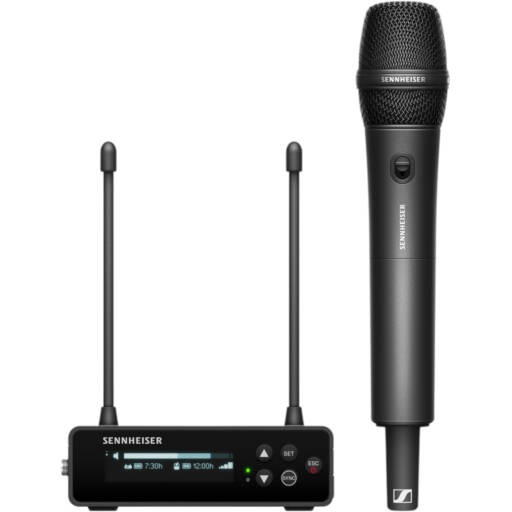

Sennheiser EW-DP 835 SET Camera-Mount Digital Wireless Handheld Microphone System

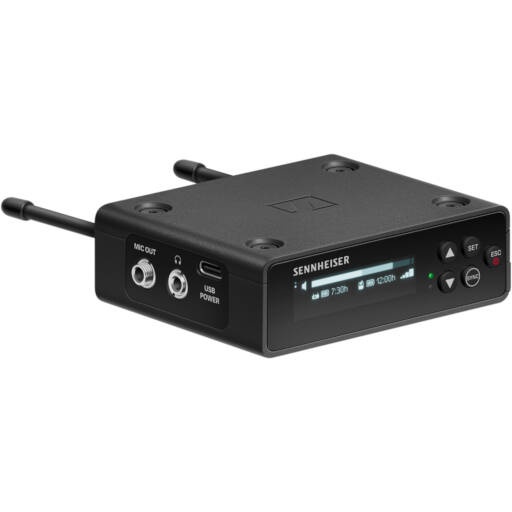

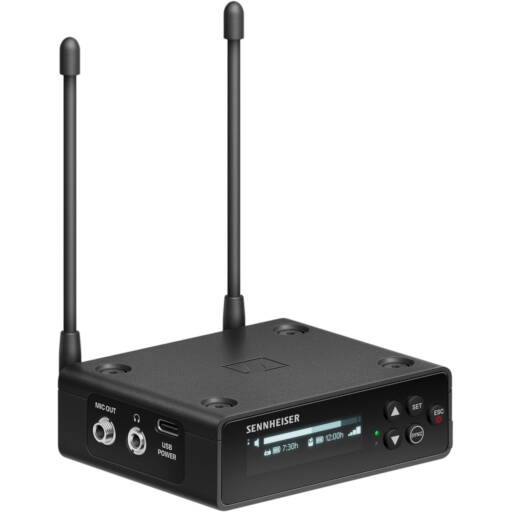

Camera-Mount Receiver with OLED Screen and Multiple Powering Options

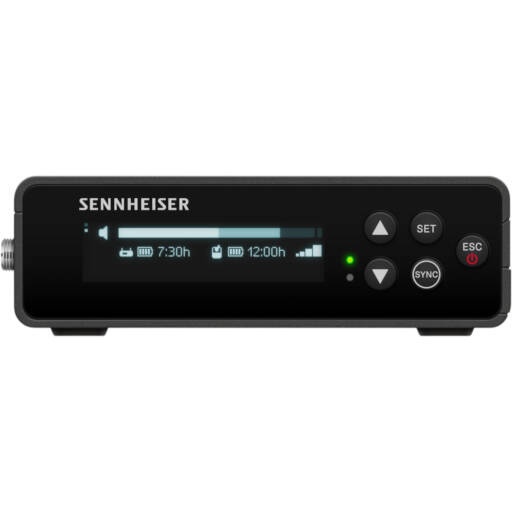

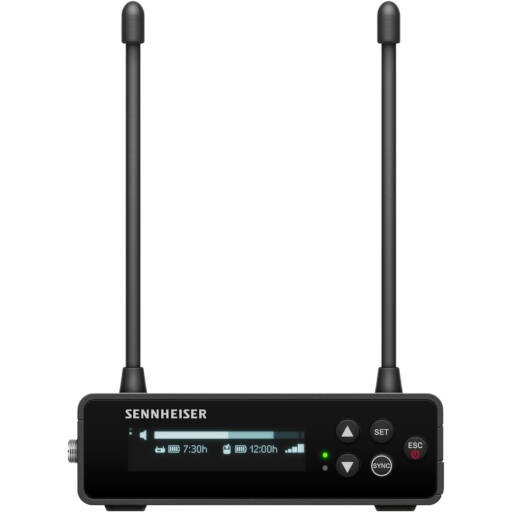

At the heart of the system is the compact EW-DP EK portable, single-channel receiver, made with simplicity in mind for DIY cameramen, videographers, creators, and journalists working in the field without a crew. A front-facing OLED display allows for easy menu navigation and at-a-glance system status at any angle, in any light.

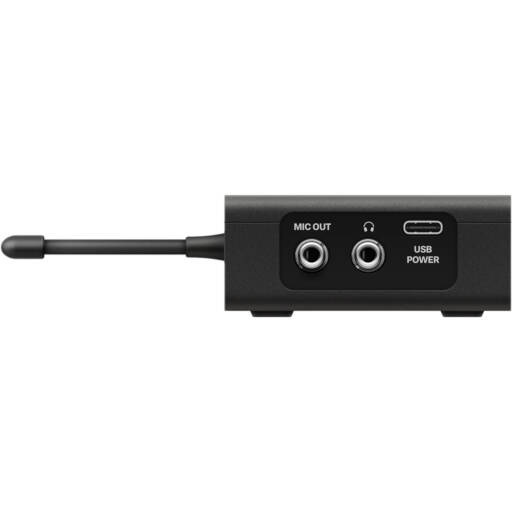

To ensure peace of mind during long hours on set, the receiver can be powered via two AA batteries or the BA 70 lithium-ion rechargeable battery pack (all included). Power can also be supplied through the USB port, allowing it to run for numerous hours on a USB power pack or indefinitely with access to AC.

Versatile Mounting Options for Receiver

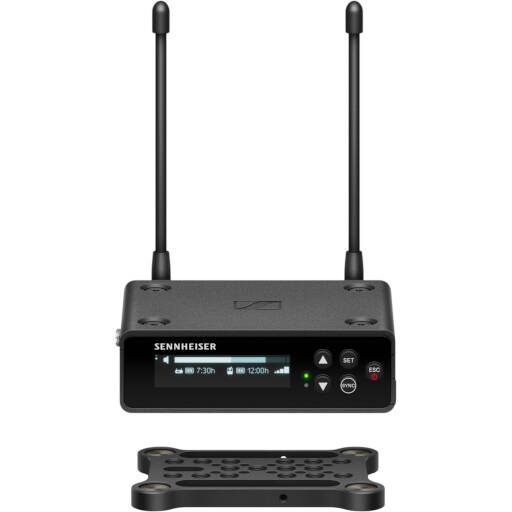

In addition to the cold shoe mount with a 1/4"-20 thread on the bottom, the receiver comes with a magnetic cheese plate that provides flexible mounting options for camera cages and accessory arms.

The magnetic mounting system lets you securely stack a second transmitter right on top when you’re shooting two, on-camera personalities. Sennheiser offers a combiner cable that will allow you to record both receivers to a camera’s single 3.5mm input.

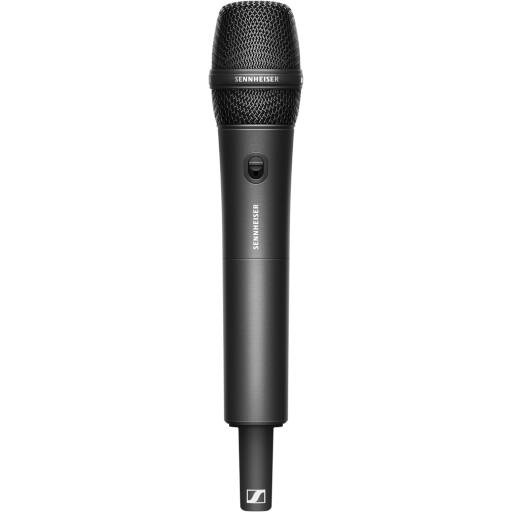

Handheld Transmitter with Mute Switch and MMD 835 Cardioid Capsule

The MMD 835 dynamic capsule features a cardioid polar pattern that helps minimize background noise, ideal for on-camera interviews and capturing isolated dialog in noisy environments.

The rugged, all-metal transmitter is equipped with a mute button that can be locked out and overridden from the receiver or a phone/tablet during a take.

The transmitter quickly pairs with the receiver via Bluetooth at a distance up to 120' at the press of a button.

The bodypack provides up to 8 hours of operation on two AA batteries or 12 hours with the BA 70 lithium-ion rechargeable battery pack.

The transmitter's interchangeable capsule design allows you to use a variety of optional dynamic and condenser mic capsules, with pickup patterns ranging from wide omnidirectional to narrow supercardioid—capsules include the MMD 845, MME 865, MMD 935, MMD 945, MMD 42, MM 435, ME 9004, MD 5235, ME 5004, and Neumann KK204 to name a few.

In the box:

Sennheiser EW-DP EK Camera-Mount Digital Wireless Receiver (R1-6: 520 to 576 MHz)

Sennheiser EW-D SKM-S Digital Wireless Handheld Transmitter with Mute Switch, No Mic Capsule (R1-6: 520 to 576 MHz)

Sennheiser MMD 835 Cardioid Dynamic Capsule for Handheld Transmitters (Black)

Sennheiser CL 35 TRS Locking 3.5mm TRS to 3.5mm TRS Coiled Cable

Sennheiser CL 35-XLR Right-Angle Locking 3.5mm TRS to XLR Male Coiled Output Cable

USB-C Charging Cable

Sennheiser BA 70 Rechargeable Battery Pack for EW-D Bodypack and Handheld Transmitters

2 x AA Battery

Mounting Kit (Cheeseplate, Cold Shoe, Beltclip, Screws)
