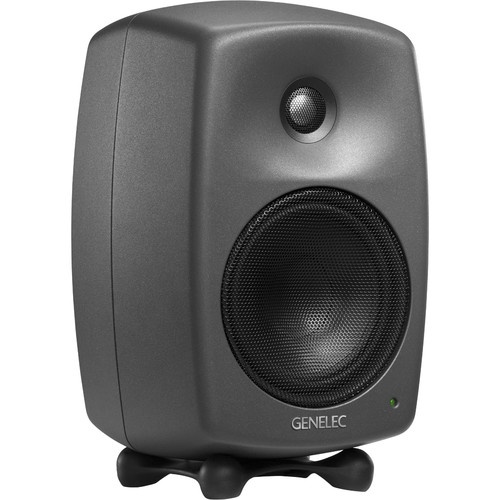

Genelec 8330A SAM Series 5" 2-Way 100W Active Studio Monitor (Single, Producer)

S$ 1,200.00
(S$ 1,200.00 excl GST)
Special order! Expected availability: 5+ weeks Not refundable/exchangeable
What?! Seen it cheaper somewhere?
Please tell us so we can try to match it!
Key Features:
  • Powerful 100W Class-D Amplification
  • 5" Woofer, 3/4" Metal-Dome Tweeter
  • Proprietary Waveguide for Sweetspot
  • Bass Reflex Port For Low-End Extensio
  • Supports Software Control & Calibration
  • Low-Diffraction Aluminum Enclosure
  • XLR Analog and Digital Inputs
  • Power-Saving Mode & Overload Protection
  • Multiple Mounting Options
  • Includes Isolation Stand
Show moreShow less
  • If you need an accurate, professional nearfield monitor that's easy to calibrate for any professional mixing setup, the Genelec 8330A is a fantastic option. Offered here in a dark gray Producer finish to better match your surroundings, this monitor is geared toward professional mixing engineers who work in small control rooms, project studios, and mobile setups. The 8330A offers software calibration to automatically tune the monitor to your environment, eliminating any need for hardware boundary controls, software monitor correction, or extraneous room treatment.

    This is a monitor that offers a wide sweet-spot for which the room does not matter, so you can rest assured that what you're hearing is accurate in both the mixer's chair and the assistant's seat. With digital as well any analog inputs, the monitor can accommodate your specific needs, whether you need to route sound from an audio interface, or require the ultramodern setup that a digial AES system enables.

    Powerfully Compact
    The 8330A offers 100W of Class-D amplification, driving a 5" woofer and 3/4" tweeter, and producing a frequency response of 45 Hz to 23 kHz. The bass reflex port helps the monitor to achieve this low frequency range.

    Wide Sweet Spot
    The sweet-spot is made wide by the combination of a proprietary waveguide which enhances imaging along with the die-cast aluminum enclosure itself. The shape of the monitor is constructed to minimize diffraction and reflections.

    Reliable Circuit Protections
    To safeguard your investment, Genelec has built signal overload protection into the monitor to ensure its dependability, and to protect the speaker from harm. A selectable power-saving mode enables automatic power up/down via a signal-sensing circuit.

    Multiple Mounting Options
    The 8330A offers multiple mounting options including an Iso-Pod isolation stand and threaded holes that are compatible with mic stands or various wall/ceiling brackets.

    In the Box
    Genelec 8330A SAM Series 5" 2-Way 100W Active Studio Monitor (Single, Producer)
    Iso-Pod Isolation Stand
    Power Cable
    16.4' / 5m GLM (Genelec Loudspeaker Manager) Network Cable

  • Monitor Type & Configuration : Active 2-Way
    Total Power Output : 100 W
    Tweeter : 1 x 0.75" / 19 mm Metal Dome
    Woofer : x 5.1" / 13 cm Cone
    Frequency Range : 45 Hz to 23 kHz (-6 dB)

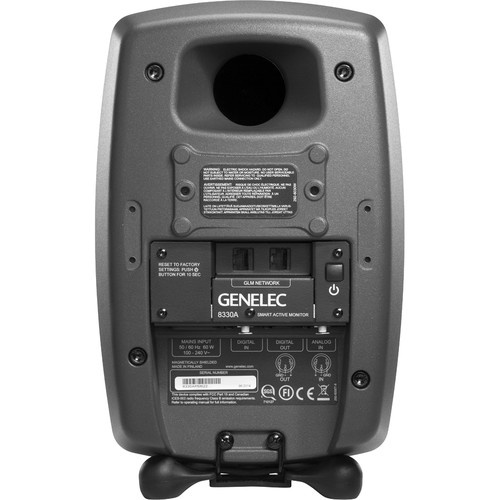

    Audio I/O :  1 x XLR 3-Pin Balanced Input (10 Kilohms)
    Digital Audio I/O :
    1 x XLR 3-Pin AES3 Input
    1 x XLR 3-Pin AES3 Out/Thru
    Network I/O :
    2 x RJ45 Ethernet
    Number of Included Monitors : Single Monitor
    Enclosure : Bass-Reflex/Ported, Shielded
    Total Power Output : 100 W

    Drivers
    Tweeter : 1 x 0.75" / 19 mm Metal Dome
    Woofer : 1 x 5.1" / 13 cm Cone
    Amplifiers :
    HF: 1 x 50 W Class-D
    LF: 1 x 50 W Class-D

    Performance
    Frequency Range : 45 Hz to 23 kHz (-6 dB)
    Frequency Response :  58 Hz to 20 kHz ± 1.5 dB
    Maximum Sound Pressure Level (SPL) : 110 dB
    Total Harmonic Distortion (THD) : 0.05%
    Maximum Input Level : +24 dBu
    Analog Input Sensitivity/Gain : -6 dBu (Continuously Variable)
    Self-Generated Noise : Less Than 5 dBA (at 3' / 1 m)

    Signal Processing
    Crossover Frequency : 2.9 kHz
    Maximum Sampling Rate : 192 kHz / 24-Bit

    Connectivity
    Audio I/O:
    1 x XLR 3-Pin Balanced Input (10 Kilohms)
    Digital Audio I/O :
    1 x XLR 3-Pin AES3 Input
    1 x XLR 3-Pin AES3 Out/Thru
    Network I/O : 2 x RJ45 Ethernet
    USB : No
    Wireless: No

    Power
    AC Input Power :100 to 240 VAC, 50/60 Hz
    Power Consumption :
    0.5 W (Standby)
    3 W (Idle)
    50 W (Maximum)
    Enclosure Material : Aluminum
    Dimensions (W x H x D) : 7.4 x 11.8 x 7" / 18.9 x 29.9 x 17.8 cm
    Weight : 12.1 lb / 5.5 kg
