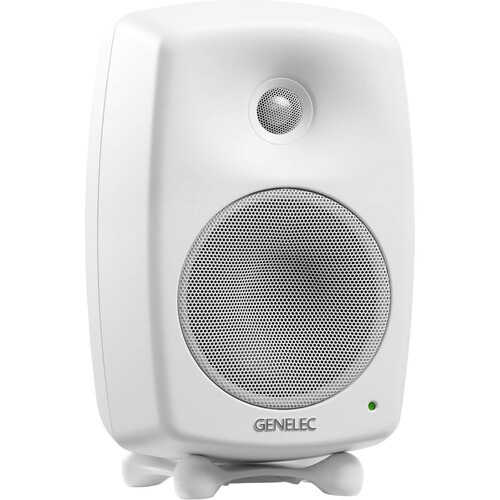

Genelec has been producing professional studio monitors since 1978, and has always been at the fore-front of technology and ground-breaking innovations. The latest 8030C builds upon the success of earlier 8030 models, delivering 4 dB higher output with less energy consumption. This active 2-way studio monitor provides accurate reproductions of source material in a compact design, well suited for a wide variety of near-field applications including broadcast, music studios, surround systems, and home studio setups. The cabinet features Minimum Diffraction Enclosure (MDE) technology, which is constructed from all-aluminum in a rounded shape, which minimizes distortions caused by edge diffraction. The integrated Directivity Controlled Waveguide (DCW) helps create an even response when listening on- and off-axis.

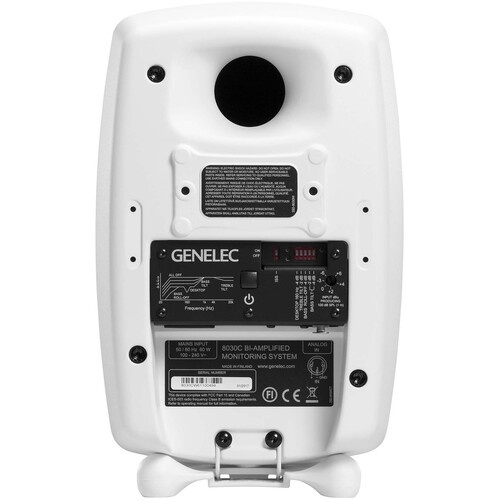

The 8030C uses a 50W high-frequency amplifier for its 3/4" tweeter, and a 50W low-frequency amplifier for its 5" woofer, which combine to create a frequency response of 47 Hz to 25 kHz with a maximum SPL of 104 dB. The Intelligent Signal Sensing (ISS) technology automatically activates the speaker when an audio signal is detected, and puts it into Standby Mode when no signal is present, reducing the energy consumption to less than 0.5 watts. The rear of the speaker features an expanded bass port, which helps increase the low-frequency response and reduces distortion. The rear control panel offers an XLR input and features controls to help match the speaker’s acoustic environment with selections for Desktop, Treble Tilt, Bass Tilt, and Bass Roll-Off.
Desktop attenuates the bass frequencies around 160 Hz by 4 dB, which is designed to compensate for placing the speaker on a meter bridge, table, or similar reflective surface. Treble Tilt attenuates the treble response above 4 kHz by 2 dB, which can smooth excessively bright-sounding environments, while the Bass Tilt offers three levels of attenuation below 1 kHz, which are helpful when placing the speaker near room boundaries. Bass Roll-Off activates a -4 dB filter to the lowest bass frequencies (55 Hz).

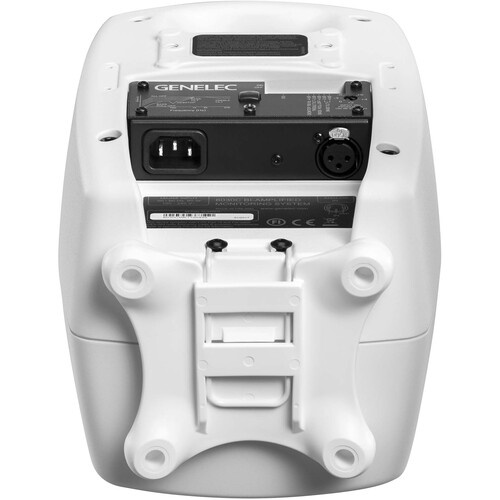

The 8030C offers several mounting options by using the 3/8" UNC threaded hole, which is compatible with standard microphone stands, or by using the two M5x10mm threaded holes for Omni-mount size 20.5 brackets. The 8030C ships with an Isolation Positioner/Decoupler (Iso-Pod), which is a vibration-insulating table stand that allows tilting of the loudspeaker for correct alignment of the acoustic axis.
In the Box
Genelec 8030C 5" 2-Way 100W Active Studio Monitor (Single, Producer Finish)
Iso-Pod Isolation Stand
Power CableMonitor Type & Configuration : Active 2-Way
Total Power Output : 100 W
Tweeter : 1 x 0.75" / 19 mm Metal Dome
Woofer : 1 x 5.13" / 13.03 cm Cone
Frequency Range : 47 Hz to 25 kHz (-6 dB)
Audio I/O : 1 x XLR 3-Pin Balanced Input (10 Kilohms)
Number of Included Monitors : Single Monitor
Enclosure : Bass-Reflex/Ported, Shielded
Total Power Output : 100 W
Drivers
Tweeter :1 x 0.75" / 19 mm Metal Dome
Woofer :1 x 5.13" / 13.03 cm Cone
Amplifiers :
HF: 1 x 50 W Class-D
LF: 1 x 50 W Class-D
Performance
Frequency Range :
47 Hz to 25 kHz (-6 dB)
Frequency Response :
54 Hz to 20 kHz ± 2 dB
Maximum Sound Pressure Level (SPL)
110 dB
Total Harmonic Distortion (THD)
≤0.05%
Analog Input Sensitivity/Gain
-6 dBu (Continuously Variable)
Self-Generated Noise
Less Than 5 dBA (at 3.28' / 1 m)
Signal Processing
EQ
1 x LF Tilt: -6 to 0 dB at 100 Hz (2 dB Increments)
1 x LF Shelf: -4 to 0 dB at 55 Hz
1 x HF Tilt: -4 to +2 dB at 15 kHz
Crossover Frequency : 3 kHz
Connectivity : Audio I/O
1 x XLR 3-Pin Balanced Input (10 Kilohms)
Network I/O : No
USB : No
Wireless : No
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
Power Consumption
0.5 W (Standby)
3 W (Idle)
60 W (Maximum)
Color : White
Enclosure Material : Aluminum
Dimensions (W x H x D) :
7.4 x 11.8 x 7" / 18.8 x 30 x 17.8 cm
Weight :
11.0 lb / 5.0 kg
