Small general purpose audio power amplifier for projector, ceiling mount, or rack monitoring. Great for boardroom and classroom applications. Ideal for small space installations where a larger amplifier won′t fit. Works with 4 or 8 ohm loads. Has bridge switch for higher power mono and a limiter. Included 24 VDC inline IEC power supply.

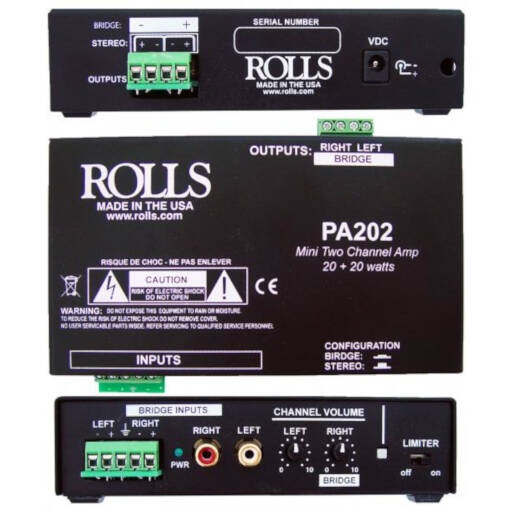

The PA202 is a very compact 20 + 20 watt high efficiency amp with barrier strip terminals for the balanced input and speaker outputs. The unit is perfect for small speakers in small environments. Great for in ceiling and projector applications where small size is needed along with class D low radiated heat locations.
Features
Small size with mounting tabs
Balanced and Unbalanced Inputs
Pheonix type input and output
Low cost, helps win your bid
Optical Limiter for maximum clean power output
Bridge switch for 40W mono operation
Included 24 VDC inline IEC power supply
In the Box
x1 Rolls PA202 20W Class-D Mini Stereo Amplifier
x1 Power SupplyInput Connectors: Screw Term & Dual RCA
Outputs Connectors: Screw Terminals
Max Gain: 34 dB/Channel
Voltage Gain: 32 dB
Bandwidth: 20 - 25KHz
Input Sensitivity: 28 mV
Included 24 VDC inline IEC power supply
Line Input Impedance: 47K Ohms
Power Output: 20 watts X 2 @ 4 Ohms, 40 watts bridge @ 8 Ohms
Maximum Supply Voltage: 30 VDC
THD: .05% typical
EIN: 3 mV
Efficiency: 85%
Cooling: Conection Cooling (No Fans)
Standby and Idle Current Draw: .005/.01 Amps
Signal to Noise: >100 dB
Size: 4.25 x 1.5 x 2.375 (W x H x D)
Weight: 1 lb.
