Allen & Heath SQ Dante 64-Channels Dante Network Interface Card

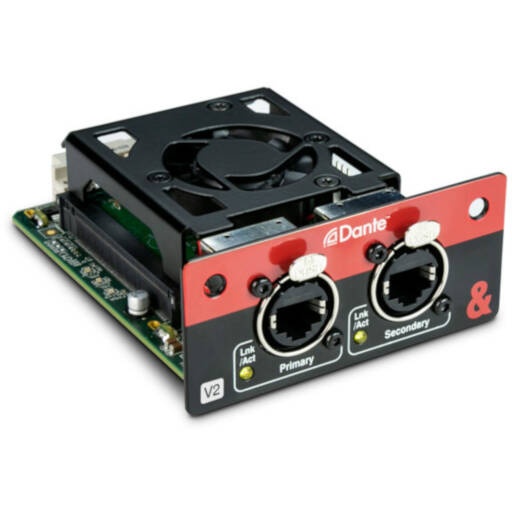

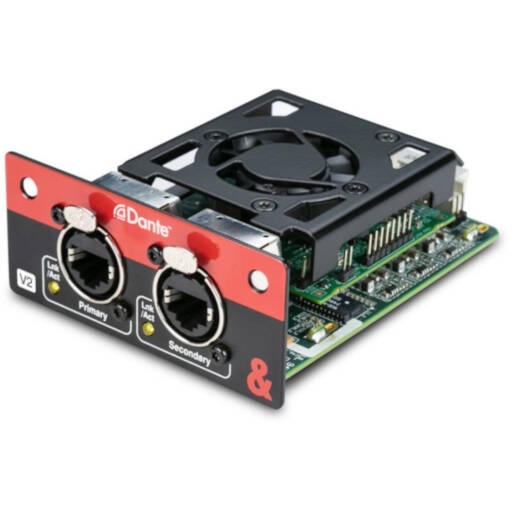

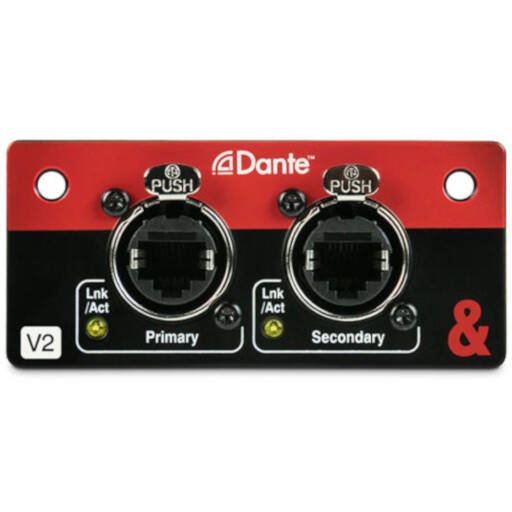

The Audinate Dante card (M-SQ-Dant64) is an audio networking option card for the SQ or AHM processor. Audinate’s Dante is an industry standard L3 network protocol providing 512x512 channels of audio at 48kHz or 256x256 channels of audio at 96khz. An SQ or AHM unit fitted with the Dante option card can seamlessly connect to DT expanders, wireless systems, amplifiers, preamps and any other devices on your Dante network, making full use of SQ’s high resolution 96kHz audio.The SQ Dante card can be switched between 96kHz or 48kHz to accommodate Dante networks running at either sample rate. In addition to facilitating system integration, the card also enables digital splits and affordable multitrack recording direct to a computer.V2 – AHM CompatibleSQ Dante V2 shares all the features and specifications of the V1 module, with no differences for SQ users*, but the V2 module can also be fitted and used in an AHM matrix processor.*SQ firmware V1.5 or higher required. The Dante card is compatible with all 48kHz & 96kHz Dante enabled devices, including the Allen&Heath DT range of expanders. A redundant secondary network connection is available for network redundancy. Dante Domain Manager (DDM) is fully supported.

Benefits:
- Audio over L3 Ethernet Cat5e or higher
- Sample accurate playback sync
- Up to 64x64 channels of virtual soundcard
- One software for routing audio across brands
- Works with standard networking equipment

Features:
- 64×64 channel audio and control over a network
- 96kHz or 48kHz operation
- Multichannel recording / playback using Dante Virtual Soundcard (available separately)
- Two ports with redundant and switch modes
- Internal Control Network Bridge
- Locking Ethercon connectors
- Dante Domain Manager ready
- AES67 compatible
- V1 compatible with SQ
- V2 compatible with SQ (V1.5+) and AHM-64
