The EXT-H101L2-TX-HDBT is a fully 18G HDMI 2.0b compliant HDBaseT transmitter. It extends HDMI audio, video as well as control up to 70m using a single Category 6A solid core cable (4K 60Hz 40m / 1080P 60Hz 70m) to a compatible HDBaseT receiver. Supports HDMI 2.0b, HDR and HDCP 2.2.The EXT-H101L2-TX-HDBT provide crystal clear HDR and full bandwidth 4K video in a compact formfactor. Support for bi-directional PoC allows for easy installation by applying power to either the transmitter or the receiver end.
Features
• The compact size makes it easy to place.
• Supports HDMI 2.0b and up to 4K/UHD/60Hz/4:4:4 (18Gbps) and HDR.
• Supports HDCP2.2 and backward compatible with previous versions.
• Maximum transmission distance is up to 40m for 4K60 4:4:4,and up to 70m for 1080p60 4:4:4.
• Supports CEC, IR and RS232 pass-through for long-distance control.
• Supports bi-directional PoC for simplified installation
In the Box
1x EXT-H101L2-TX-HDBT
2x Mounting Ears with 2x Screws
1x DC power adapter with EU plug (24v1.25A)
4x Plastic Cushions
1x 3-Pin terminal block

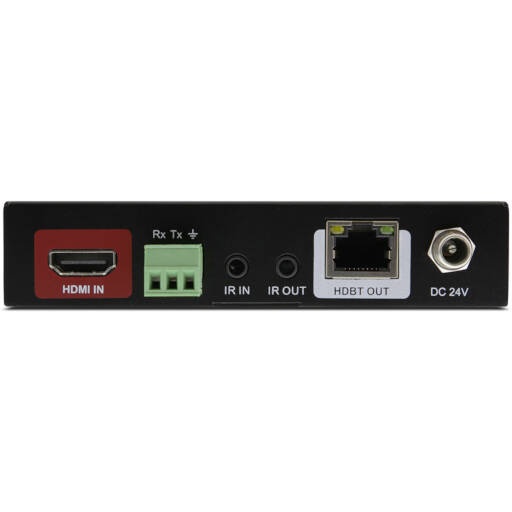

1x User ManualModel: Transmitter
Input: HDMI IN
Output: HDBT OUT
Control Ports: IR IN, IR OUT, RS232
General
Transmission Mode & Distance: HDBaseT: 1080p ≦ 70m; 4Kx2K ≦ 40m
Resolution: Up to 4K×2K@60Hz 4:4:4
Bandwidth: 18Gbps
HDMI Standard: HDMI2.0b & HDCP2.2
Power Consumption: 8W(Max)
Temperature: -10 ℃~ 50℃
Humidity: 0% ~ 90%
Power supply:
- Input: 100VAC~240VAC, 50/60Hz
- Output: 24VDC 1.25A
Dimension (W*H*D): 115mm x 84mm x 24mm
Net Weight(g): 230g
