The DA-H4A-DS is an HDMI 2.0 compatible 1x4 auto scaling HDMI distribution amplifier. It supports automatic down scaling so a 4K video input can be down scaled to an 1080p output when connecting a display that only supports resolutions up to 1080p for maximum compatibility in installations with mixed resolution displays.The DA-H4A-DS supports 4K signals up to 4K@60Hz 4:4:4 and features an easy EDID management option using dip switches on the front panel of the unit. The Distribution Amplifier can de-embed digital stereo audio to one balanced analog audio output and one optical Toslink audio output to provide audio sources for existing audio systems. The Distribution Amplifier supports 4K to1080p down-scaling up to 4 outputs. Moreover, the Distribution Amplifier provides a Micro-USB port for convenient firmware upgrade.
Features
- Splits a single HDMI input to four HDMI outputs.
- Supports HDMI 2.0, 4K@60Hz 4:4:4, Dolby Vision.
- 18Gbps high bandwidth.
- HDMI input supports HDCP 2.2 and the outputs support HDCP Active or HDCP Passive mode.
- Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080p output for compatibility with 1080p display.
- Built-in signal equalizer provides capability to use longer range HDMI cable.

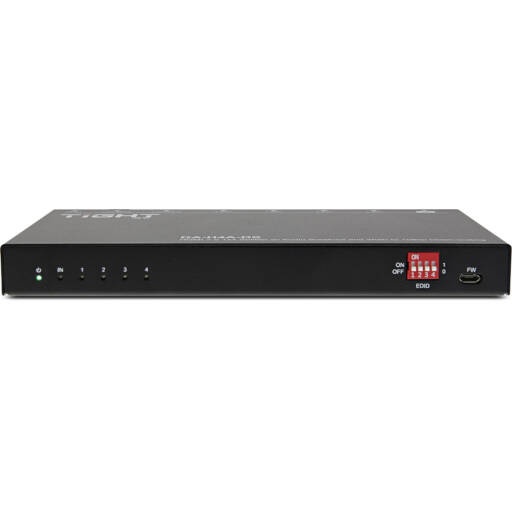

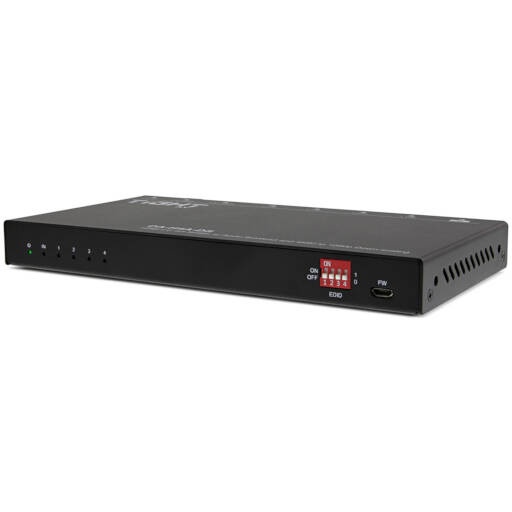

- Up to 6 types of built-in EDIDs can be selected by DIP Switch.
- Balanced analog and Toslink optical audio outputs for de-embedded audio.
- Up to 6 units can be cascaded to distribute video signal to multiple video displays.
- CEC pass-through.
- Micro-USB port for convenient firmware upgrade.
In the Box
1x HDMI 2.0 1x4 Distribution Amplifier
2x Mounting Ears with 4 Screws
4x Plastic Cushions
1x Power Adapter (5V DC 1A)
1x User ManualVideo Input

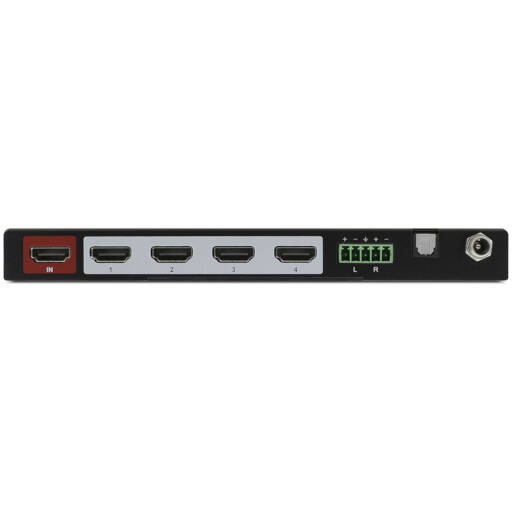

Input: (1) HDMI
Input Connector: (1) Female type-A HDMI
HDMI Input Resolution: Up to 4K@60Hz 4:4:4
HDMI Standard: 2.0
HDCP Version: 2.2, 1.4 compliant
Video Output
Output: (4) HDMI
Output Connector: (4) Female type-A HDMI
HDMI Output Resolution: Up to 4K@60Hz 4:4:4
HDMI Standard: 2.0
HDCP Version: 2.2, 1.4 compliant
Audio
Output: (1) AUDIO OUT, (1) SPDIF OUT
Output Connector: (1) 5-pin terminal block, (1) Toslink connector
HDMI Audio Format: LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS: X™, and DTS-HD® Master Audio™ pass-through
DP Audio Format: 8 channels LPCM, up to 24bit 192Khz, AC3, DTS
Analog L/R audio Format: PCM
ToslinkAudio Format: PCM, Dolby Digital, DTS, DTS-HD
Max Output Level: 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal
THD+N: 0.05% (-80dB), 20Hz ~ 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level)
SNR: >80dB, 20Hz ~ 20KHz bandwidth
Crosstalk Isolation: >70dB, 10KHz sine at 0dBFS level (or max level before clipping)
L-R Level Deviation: 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping)
Frequency Response Deviation: ±0.5dB 20Hz ~ 20KHz
Output Load Capability: 1KΩ and higher (supports 10x paralleled 10KΩ loads)
Stereo Channel Separation: >70dB@1KHz
Control
Control Part: (1) EDID 4-pin DIP switch, (1) Micro-USB port
General
Bandwidth: 18Gbps
Operation Temperature: -10 ~ +55℃
Storage Temperature: -25 ~ +70℃
Relative Humility: 10% - 90%
Power Supply: Input:100V~240V AC; Output: 5V DC 1A
Power Consumption: 4W(Max)
Dimension (W*H*D): 190mm x 20mm x 100mm
Net Weight: 545g
