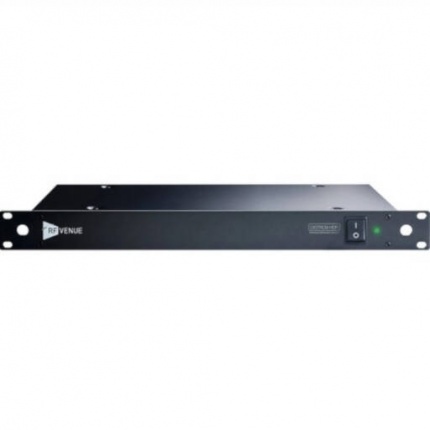

The DISTRO9 HDR represents a unique approach to high quality RF signal distribution for wireless microphones. The DISTRO9 saves time and rack space by offering 9 outputs and inputs for 2 zones in just one rack space. And each output is clean: DISTRO9 HDR employs low noise figure amplifiers and superior gain structure providing a high dynamic range over the spectrum. The DISTRO9 HDR makes multi zone installations easy by providing two zone antenna inputs, this allows for coverage of large areas or multiple rooms and has DC power available for in-line amplifiers or active antennas.
2 Input Zones, each with 2x (Diversity) RF inputs provide maximum flexibility for covering large areas or multiple rooms, with DC power available for in-line amplifiers or active antennas. Any of the DISTRO9’s clean unity gain RF outputs can be cascaded to a second DISTRO9, eliminating the need for dedicated cascade ports and providing up to 17 wireless microphone channels in just 2RU of rack space. With superior gain flatness across VHF, T-Band, and UHF, the DISTRO9 HDR is built for the rapidly changing RF spectrum landscape worldwide.
In the Box
x1 DISTRO9 HDR Antenna Distribution System
x1 AC power cordFrequency range: 50-1000 MHz (VHF, UHF, +900 bands)
RF output level (gain): ± 3dB
Output connection isolation: 60dB @ 510MHz, 80dB @ 200 MHz
Third order intercept point: 15dBm @ VHF, 20+ @ UHF
Impedance: 50Ω
Power Requirements: 50/60 HZ, 2A
Fuse: T3.15A/250V
Input AC voltage: 100-240 VAC
DC over coax (to external antennas): 12 VDC 100mA
Output DC voltage (to receiver jacks): 12V 3A
Output DC connectors: Anderson Power Pole
Dimensions: 480(W) X 45(H) X 250(D) mm / 19(W) X 2(H) X 10(D) in
Unit Weight: 2.7 Kg / 6lbs
