Reamping made easy
The Reamp HP is designed to accept the signal from the headphone output jack on your interface, making it incredibly easy to connect on the fly without having to repatch cables or dig around behind your studio desk or equipment rack. Simply assign the track you want to Reamp to the right channel of your headphone output and you're ready to feed guitar, bass, or even vocal tracks through your amplifier to record and experiment with new tones and settings. You can even assign stereo tracks to the Reamp HP and sum them down using the dedicated mono switch on the device.More flexibility = more creativity

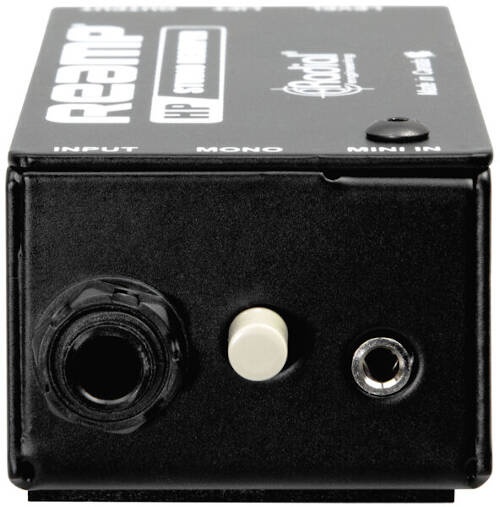

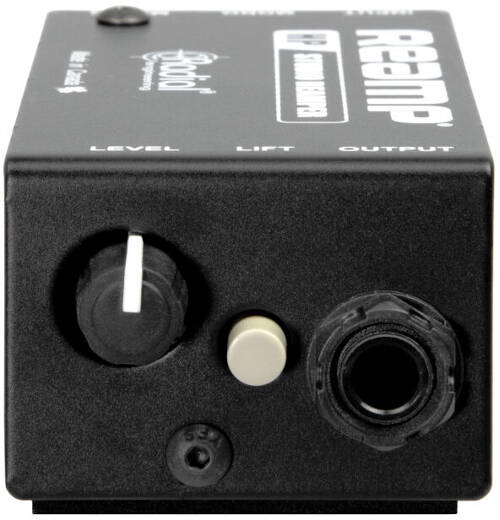

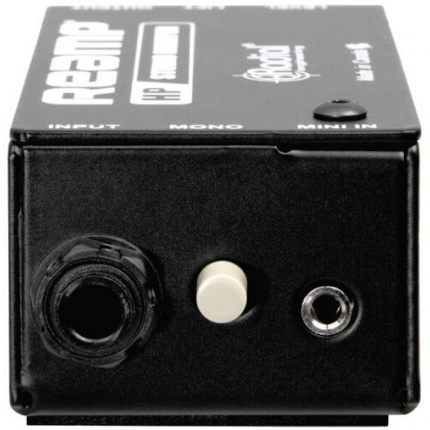

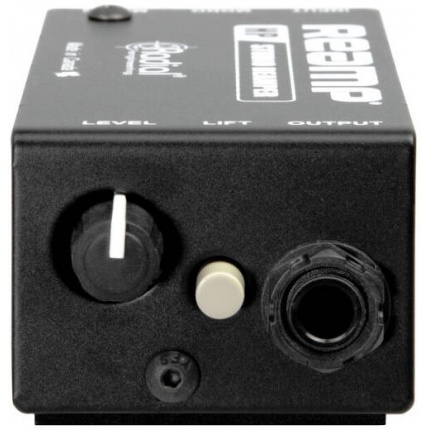

The Reamp HP features both 1/4" and 3.5mm inputs, so you aren't limited to just Reamping tracks from your audio interface. Connect a smartphone or tablet to the Reamp HP and create new sounds by combining a sound creation app with your favorite pedals and amps. The Reamp HP is equipped with an isolation transformer and a ground lift switch to eliminate hum and buzz and help produce a clean recording, along with a level control for fine-tuning the output signal.In the Box:
Radial Engineering Reamp HP x1
Specifications
Audio circuit type: Passive, transformer isolated
Frequency response: 20Hz ~ 20KHz (+/- 0.5dB)
Dynamic range: >96dB
Total harmonic distortion: 0.0015% @1kHz
Input Impedance: 11.8kΩ
Output Impedance: 1.5kΩ
Equivalent Input Noise: -105dBu
Noise: -125dBu
Maximum Input: >+20dBu
Features
Mono Sum, Ground lift, Level Control
Input Connectors: ¼" TRS unbalanced stereo, 3.5mm TRS unbalanced stereo
Output Connectors: ¼" TS
General
Construction: 16 gauge steel chassis and outer shell
Size (L x W x D): 4.6" x 1.50" x 1.89" (117mm x 48mm x 38mm)
Weight: 0.58 lbs (256g)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
