Performance. Optimized.
The CHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed for use as a floor monitor, and a 15” version for FOH applications —all featuring carefully selected custom transducers. Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition CHR quality and performance to improve your sound?

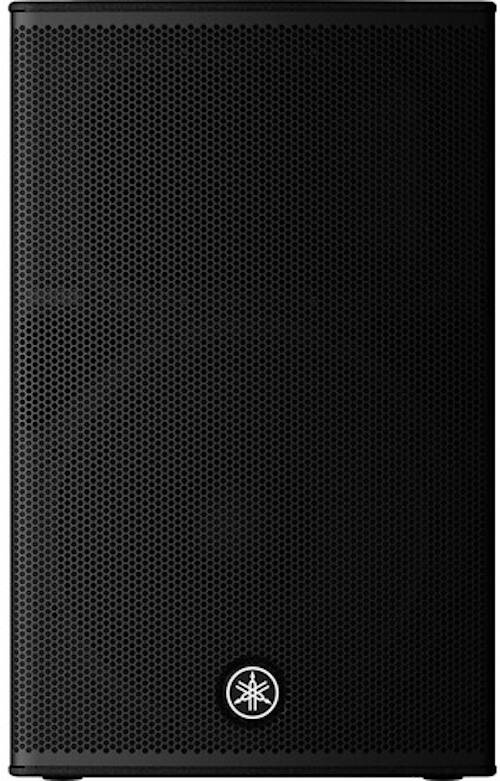

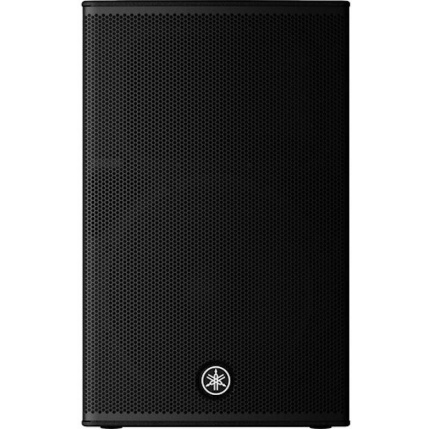

The CHR15 is a 2-way loudspeaker, equipped with a 15-inch woofer and a 1.4-inch HF driver, and perfect for use as a main speaker. Combining carefully selected and customized transducers with the same plywood construction found on Yamaha’s high-end CZR Series, the CHR15 offers best-in-class sound quality and durability.
- Featuring a plywood cabinet that delivers a clear sound with minimal vibration
- Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
- Compact size despite the 15-inch LF driver that provides excellent low frequency response
- Dual-angle pole sockets offer both 0° or a -7° down tilt
- Rigging points for use with eye bolts
- Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance
In the Box:
Yamaha CHR15 2-Way 15" Passive Loudspeaker
Configuration Passive 2-Way
Enclosure Type Bass-Reflex Loudspeaker
Total Power Capacity
250 W RMS
500 W Program
1000 W Peak
Constant Voltage / Transformer Taps None
System Impedance 8 Ohms
Drivers

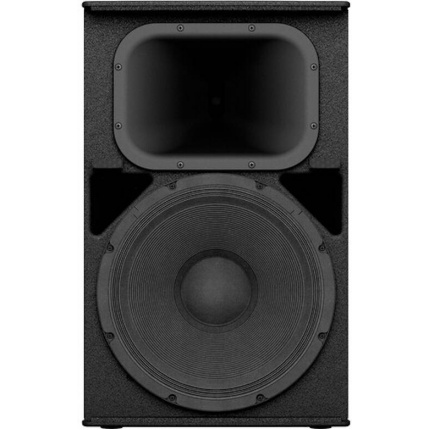

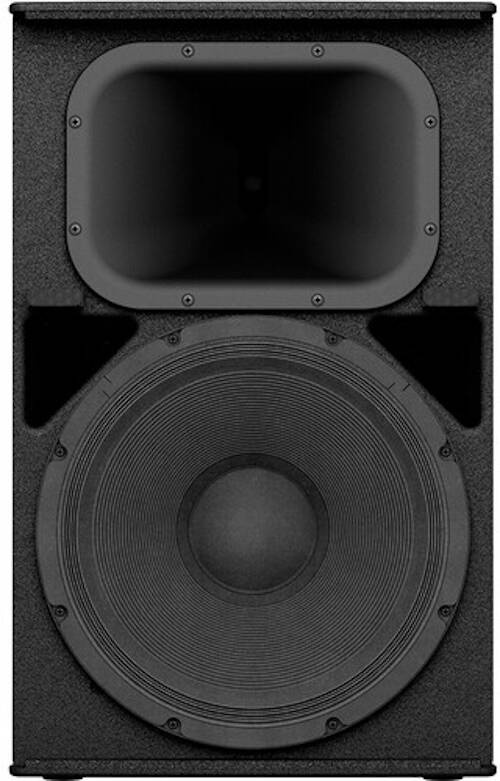

HF Driver 1 x 1.4" / 35.6 mm Rotatable Horn Compression Driver with 1" / 25 mm Throat
MF Driver None
LF Driver 1 x 15" / 381 mm Woofer
LF Voice Coil 2.5" / 63.5 mm
Magnet Ferrite
Performance
Frequency Range 49 Hz to 20 kHz -10 dB
Maximum SPL 125 dB
Coverage Angle 90° H x 60° V
Speaker Sensitivity 95 dB SPL
Connectivity

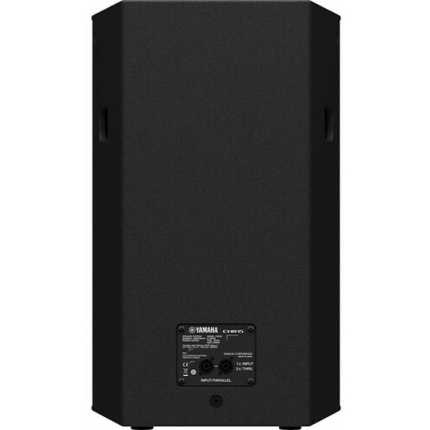

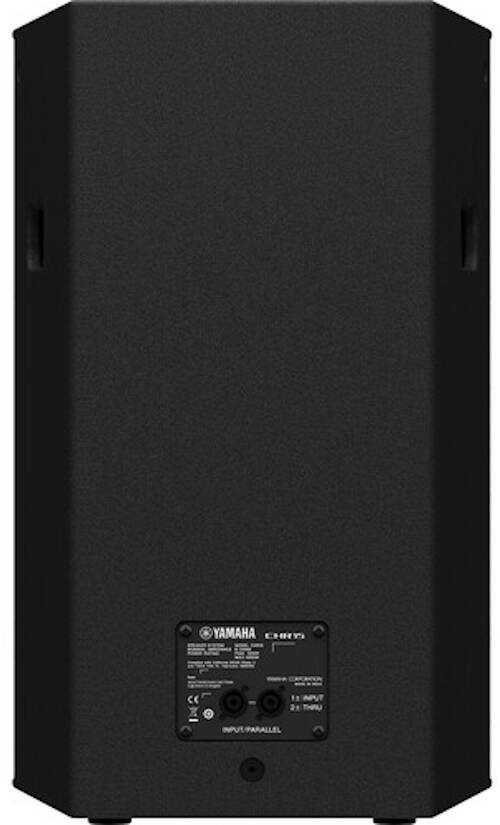

Audio I/O 2 x speakON NL4 Speaker Input/Thru (Lockable)
Signal Processing
Crossover 2 kHz
Phase Adjustment None
Physical
Mounting
2 x M10 Fly Point (Top)
1 x M10 Fly Point (Rear)
1 x 1.4" / 35 mm Pole Socket (Bottom)
Handles 1 x Each Side
Construction Material Plywood, Polyurethane
Dimensions 27.2 x 17 x 15.9" / 690.9 x 431.8 x 403.9 mm
Weight 48.5 lb / 22 kg
