SERIOUS. BASS. PERFORMANCE.
Great bass sound speaks for itself. Period.
If you like your bass prominent and powerful, DXS Series high-output, powered subwoofers will ensure your bottom-heavy audio is heard loud and clear. Featuring high-efficiency Class-D amplifiers and a customized woofer housed in a sturdy plywood band-pass enclosure, DXS subwoofers are capable of delivering up to an impressive 1020W of distortion-free power with supreme clarity. The lineup features the acclaimed DXS18 and recently upgraded versions of the 15” and 12” models, the DXS15mkII and DXS12mkII, which have adopted technologies and features from the DXS18 for an added professional edge and boost in performance. All feature Yamaha's state-of-the-art DSP, protection functions, and flexible crossover control allowing for seamless compatibility with Yamaha's vast lineup of full-range speakers, and reliable management of your bottom end. We've worked tirelessly to develop subwoofers with this level of versatility, dependability, and power because for Yamaha, great bass is serious business. Make it your business too.

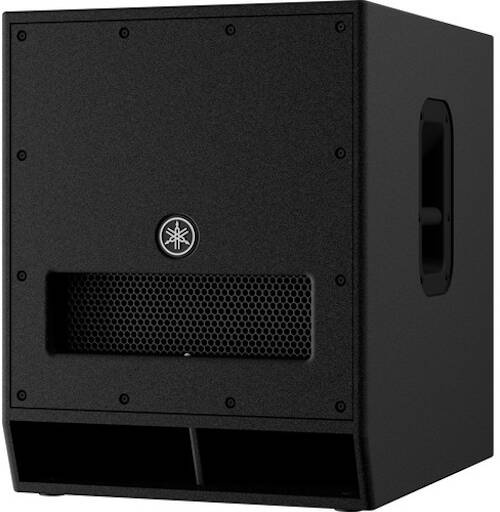

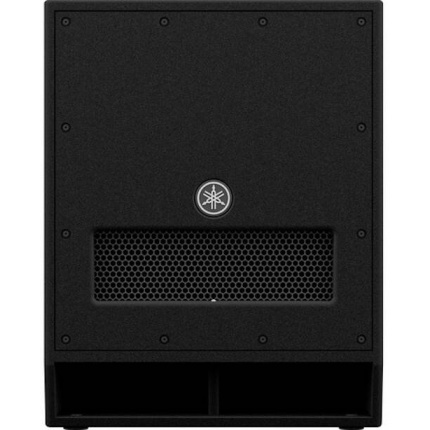

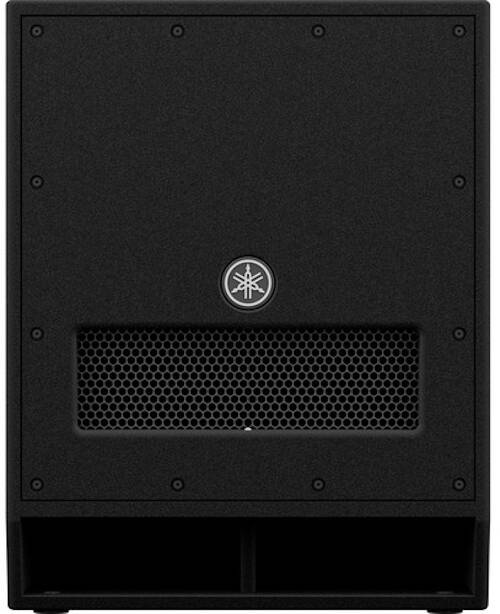

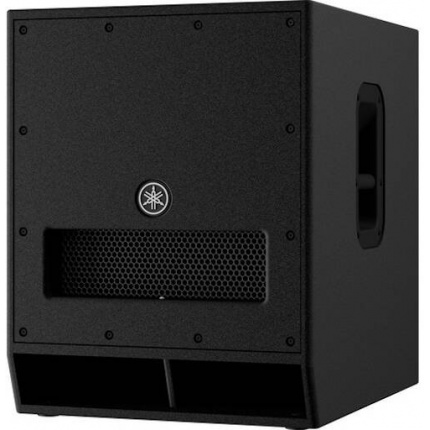

The new DXS15mkII capable of producing tight, thunderous low frequencies as low as 40Hz and a maximum SPL of 135dB, this updated model's optimized band-pass design and state-of-the-art DSP ensure the extremely high power output is focused, powerful, and distortion-free.
- 15" powered subwoofer with 1020W class-D power amplifier
- High-output 15" woofer with a band-pass design cabinet for superior bass response and a maximum 135dB SPL
- 40Hz-150Hz frequency range is ideal for small- to medium-sized rooms
- Built-in D-XSUB processing allows you to extend the frequency response even lower
- Plywood cabinet is durable and acoustically optimized for maximum sound quality
- Cardioid mode for bass management onstage
- Selectable X-OVER (80/100/120 Hz)
- M20 and Ø35 mm dual pole sockets
- Optional Speaker Wheels (SPW-1) and Speaker Cover(SPCVR-DXS152)
In the Box:
Yamaha DXS15mkII Powered Subwoofer (Black)
PA Speaker
Configuration Active Subwoofer
Total Power Capacity
1020 W Peak
800 W RMS
Drivers
LF Driver 1 x 15" / 38 cm Woofer
LF Voice Coil 2.5" / 6.35 cm
Performance
Frequency Range 40 Hz to 150 HzMaximum SPL 135 dB

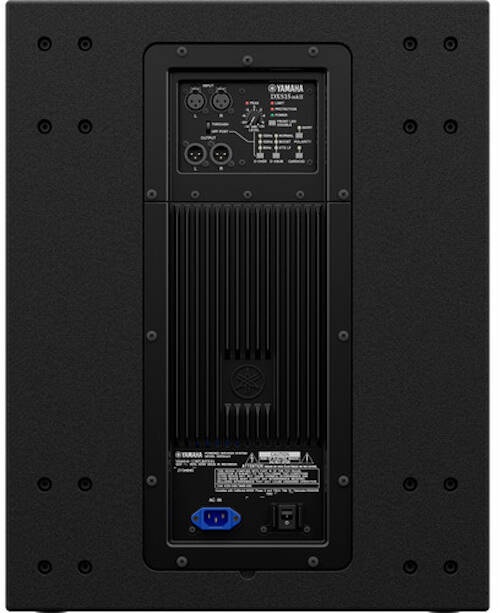

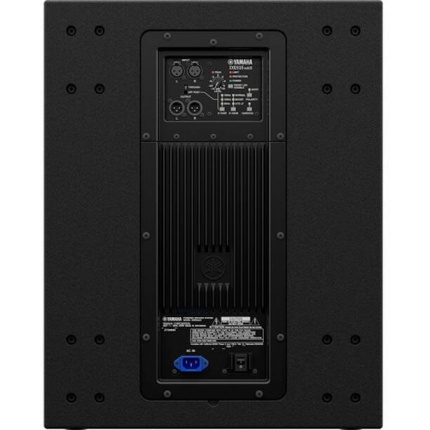

Connectivity
Audio I/O
2 x XLR 3-Pin Female Input
2 x XLR 3-Pin Male Thru
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 100 W
Physical
Mounting
1 x 1.4" / 35 mm Pole Socket
1 x M20
Cooling Convection
Construction Material Plywood
Dimensions 18.9 x 24.1 x 24.2" / 480 x 611 x 614 mm
Weight 79.4 lb / 36 kg
