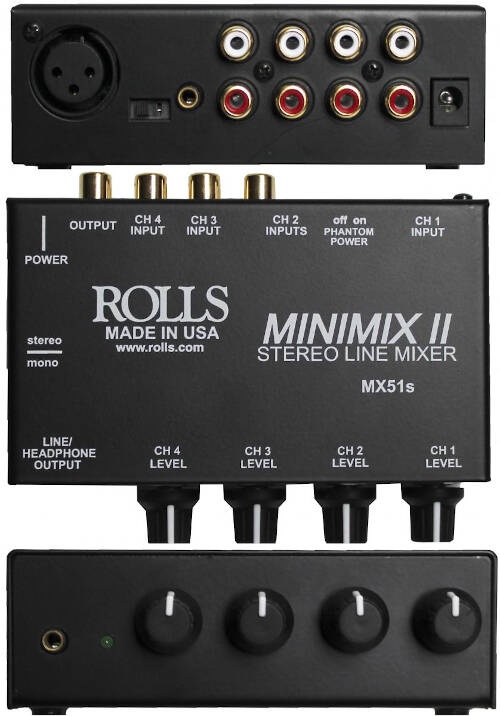

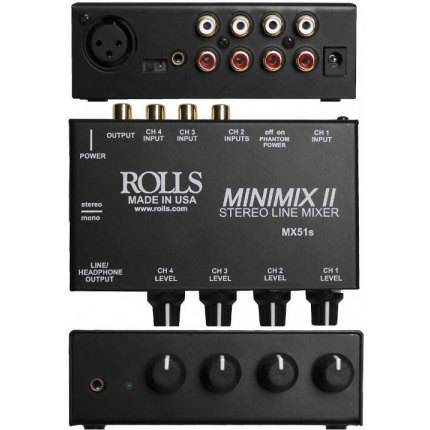

The MX51s Mini Mix 2 is small four-channel mixer with individual volume controls, and a headphone / line output. The unit has one XLR input along with an 1/8" input and 3 sets of stereo RCA inputs. It has enough gain and output level to connect to a power amplifier, with either RCA or 1/8" jacks. The MX51s is powered by an included ROLLS PS27s 15V adapter.
In the box:
- MX51s
-15V powersupply PN PS27sPower: ROLLS PS27s adapter
CH 1 Gain: 32 dB XLR jack (highest gain)
Phantom Power: for CH 1 microphone XLR
Ch2 Gain: 26 dB 1/8" and RCA
Ch 3 and 4 Gain: 26 dB each RCA
Output: 1/8" stereo and stereo RCA
S/N Ratio: >90 dB
THD: .008%
IMD(SMPTE): .008%
Input Impedance: 10K Ohms unbalanced each jack
Size: 3" x 5" x 1.25" (8 x 13 x 3.2 cm)
Weight: 1 lbs. (.45 Kg)
For mixing a microphone XLR input with up to three RCA input signals
XLR phantom power available.
Four channels total
Line / Headphone output level
ROLLS PS27 AC adapter included
Stereo RCA Line-Level Output
