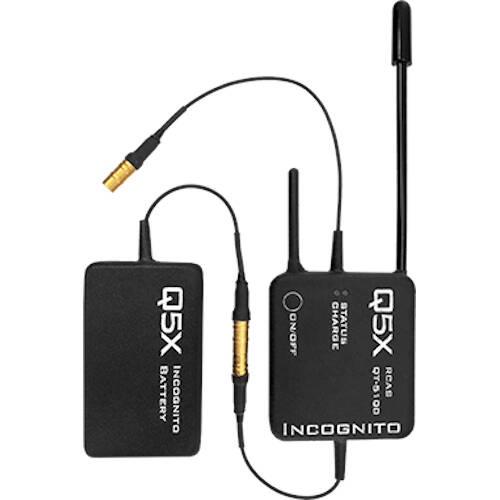

QT-5100 Incognito – Thin and Concealable
A revolution in concealment. The two piece rubber case of the Incognito can be hidden in wigs, undergarments or in almost any costume or stage prop. A member of the QT-5100 series, the Incognito has full wireless remote control.Remote Control Audio System
The QT-5100 Incognito utilizes the RCAS™ (Remote Control Audio System) a revolutionary way to remotely control transmitter settings from a central computer or hand held remote control. The remote functions allow technicians to control; on/off, monitor status and battery level and make on-the-fly adjustments of frequency, mic gain, RF power level, mode and grouping, all wirelessly.3000 Channels
The QT-5100 Incognito is offered in 3 tuning blocks that span 470 to 700 MHz in 25 kHz steps, with approximately 3000 channels per block.Divide and Hide
The unique two part design of the QT-5100 Incognito is based on the observation that sometimes it can be easier to hide 2 tiny components rather than 1 small one. The Incognito can be used invisibly in a bra or bikini top. For theatrical productions, it can be balanced on both sides of a wig.Removable Battery Pack
The external plug-in lithium polymer battery pack can be changed quickly, allowing you to keep shooting for up to 16 hours @ 50mW depending onAll Analog transmitters have 2 Q5X Modes. Choose an additional Mode for Lectro UCR/SRc, Shure UR or Sennheiser HiDyn plus receiver compatibility.
Note:
For legal use in Singapore, transmitters will be restricted to 10mW for legal use according to IMDA guidelines. Export versions will be capable of full transmission power and will be marked "FOR EXPORT" on the packaging.Please indicate your receiver frequency block in the comments when ordering.
the battery ordered.
Dimensions of transmitter: 47.5mm x 43mm x 10.5mm
Weight of transmitter: 29.8g
Housing Material: Polymer Case
RF output power: 10mW to 100mW (user selectable, country restrictions apply)
UHF frequency range 470 to 700 MHz in 3 frequency blocks
Tunable bandwith: Varies by frequency block (25 kHz steps)
Modulation: FM
Nominal deviation: +/- 40 KHz
Peak deviation: +/- 54 KHz
Pre-emphasis: 50 us
Compander: Q5X DCS-QT
Signal to Noise: 105dB (A) rms
Frequency stability: +/- 0.001%
Spurious emission: - 60 dBc
Total harmonic distortion (THD): 0.3% at nominal deviation
Frequency response: 50 Hz to 17,000 Hz
NOTE: System frequency response is dependent on the microphone element
Audio connector: 1 pin Lemo
Antenna: 1/4 wave UHF and 2.4 GHz
Battery: Lithium Polymer Battery Pack
Operating time: (Battery) estimated, See Table Below
Operating temperatures: -10⁰C to 45⁰C
Approvals: FCC, CE, Industry Canada
