The 3G-SDI/HDMI Full HD Genlock Camera with 4mm Fixed Lens from AIDA Imaging is an ultracompact camera suitable for web-conferencing, sports, auto racing, surveillance, medical, broadcasting, live production, education, house of worship, and other applications.

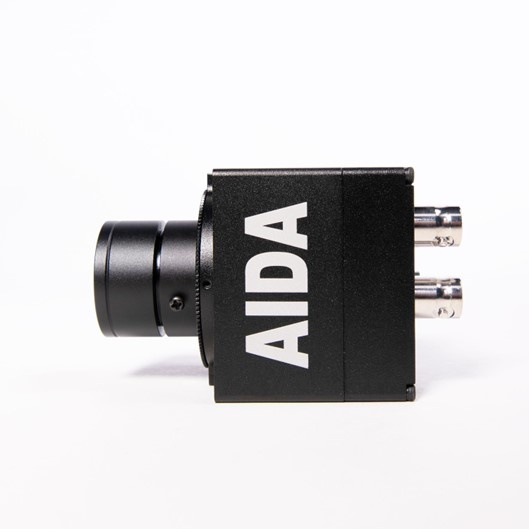

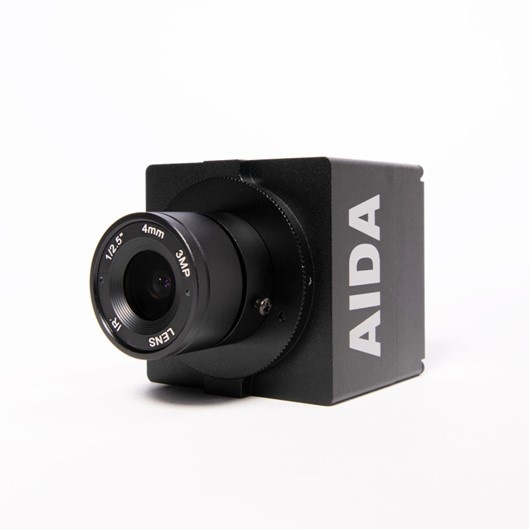

Measuring approximately 1.5" wide by 1.5" tall and 3" deep, this tiny camera can fit in a variety of spaces where a small footprint is advantageous such as a dashcam in a race car, or discretely in the corner of a surgical room. The camera captures HD video at up to 1080p60, and it features a C/CS mount for mounting interchangeable lenses and includes a 4mm lens with iris control.

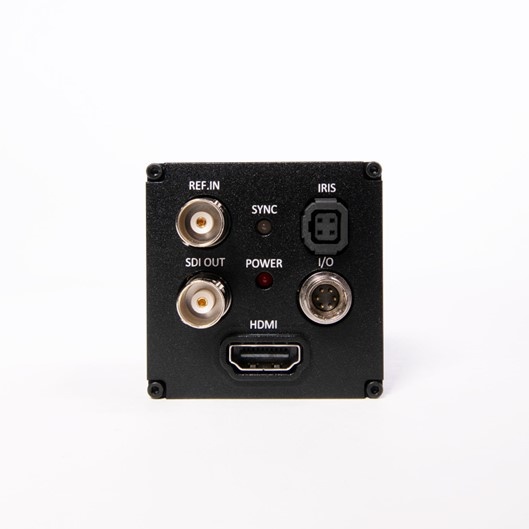

The camera has a sync connector that enables syncing up to the sync signal in a broadcast facility and 3G-SDI and HDMI outputs that allow you to connect to switchers, monitors, recorders, and other devices for viewing and/or recording the image. An included breakout cable provides inputs for power, RS-485 control, and mic/line-level audio, which is embedded in the HDMI output. The cable also has an integrated OSD controller on it. This allows you to select and adjust the built-in image tools such as noise reduction, black-level adjustment, flicker detection as well as selecting the exposure mode. The camera body includes both a power and HDMI indicators, allowing you to confirm its operation at a glance. A 1/4"-20 mounting thread allows you options when mounting the camera.
Other features include:
- Full HD 1/3" CMOS progressive scan sensor captures sharp and vivid color under different light conditions.
- Advanced digital image processor provides vivid and detailed images by utilizing a wide dynamic range, white balance, and noise reduction.
- Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
- Tri-level sync Genlock synchronizes GEN3G cameras and other system components for seamless vertical interval switching between sources.
- Breakout cable included with RS-485 control, power input, 3.5mm analog audio input, and an integrated OSD controller.
- Compatible with other industry leading products, conforming with SMPTE 424M/292M standard.
- Self-adaptive resolution feature captures your reference feed instantly.
- Black level setup provides the better color transition from digital to analog.
- Auto White Balance and shutter speed provides the optimized performance in a variety of situations.
- Interchangeable lens design makes it compatible with auto-iris CS and C mount lenses.
In the Box
- AIDA Imaging GEN3G-200 3G-SDI/HDMI Full HD Genlock Camera with 4mm Fixed Lens
- I/O Breakout Cable
- 12 VDC Power Supply
- International Power Adapter KitGeneral Specifications
Image Sensor 1/3" Progressive Scan CMOS
Sensor Size 5.346 x 3.003 mm (16:9)
Effective Pixels 1920 x 1080
Pixel Size 2.75 x 2.75 µm
Video Resolution Supported a
1080p: 60, 59.94, 50, 30, 29.97, 25
1080i: 60, 59.94, 50
720p: 60, 59.94, 50, 30, 25
Video Output Connectors
1 x BNC, 3G-SDI
1 x HDMI 1.3a
Other I/O 1 x 4-Pin, Auto-Iris
Breakout Cable Connectors
1 x 3.5 mm, Analog Audio
1 x RS-485, Camera Control
1 x Power
Color Space 4:2:2 YCbCr, 10-Bit
Minimum Illumination
0.2 lux (Day)
0.1 lux (Night)
0.005 lux (Slow Shutter ON)
White Balance 9000K to 11,000K
SMPTE
SMPTE 292M, SMPTE 424M
Focal Length 4mm
Lens Mount C/CS Mount
Audio
Sample Rate 16/24/32-Bit
Genlock External Tri-Level Input
Controls RS-485, OSD Button on Breakout Cable
Power Source 12 VDC (9 to 15 VDC), 6 W
Operation Temperature 32 to 104°F / 0 to 40°C
Dimensions With Default 4mm Lens: 1.92 x 1.92 x 2.79" / 49 x 49 x 71 mm
Weight With Default 4mm Lens: 6.3 oz / 180 g
Package Weight 1.45 lb/ 0.65kg
Box Dimensions (LxWxH) 11.1 x 6.9 x 2.6"/ 28.2cm x 17.6cm x 6.6cm
