Audio Excellence On A Budget

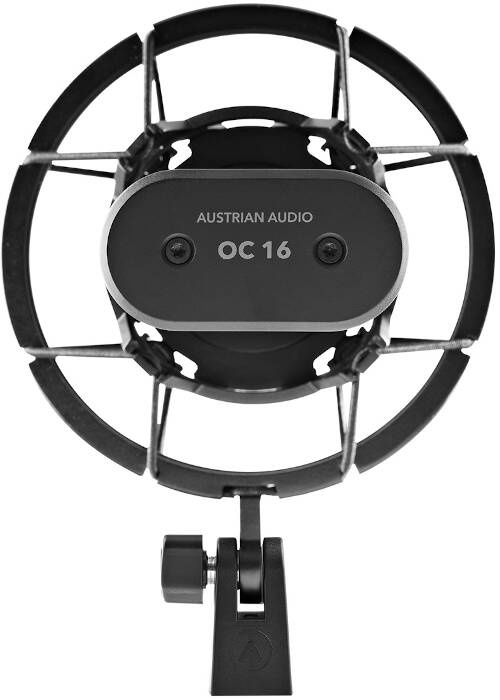

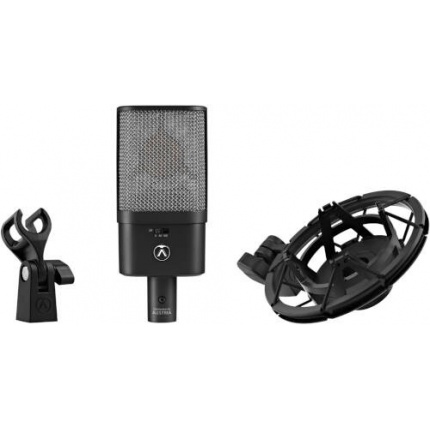

With the OC16, Austrian Audio introduces a brand-new microphone in the “Open Condenser” large-diaphragm series equipped with Open Acoustics technology.The transparent and natural sound of OC microphones, which has been highly praised by the press and users, is the result of the combination of the patented CKR capsule and the “Open Acoustics” design approach developed by Austrian Audio.
Equipped with the handmade in Vienna CKR6 capsule, the OC16 is an extremely flexible all-rounder and can be used on a wide variety of instruments: From drums to electric and acoustic guitars, pianos, wind and string instruments to vocals.
Handcrafted CKR6 ceramic capsule
handmade in Vienna, like the CKR12 capsule, but with single diaphragmRugged Design
Metal housing, cap, and grilleHigh precision cardioid pattern

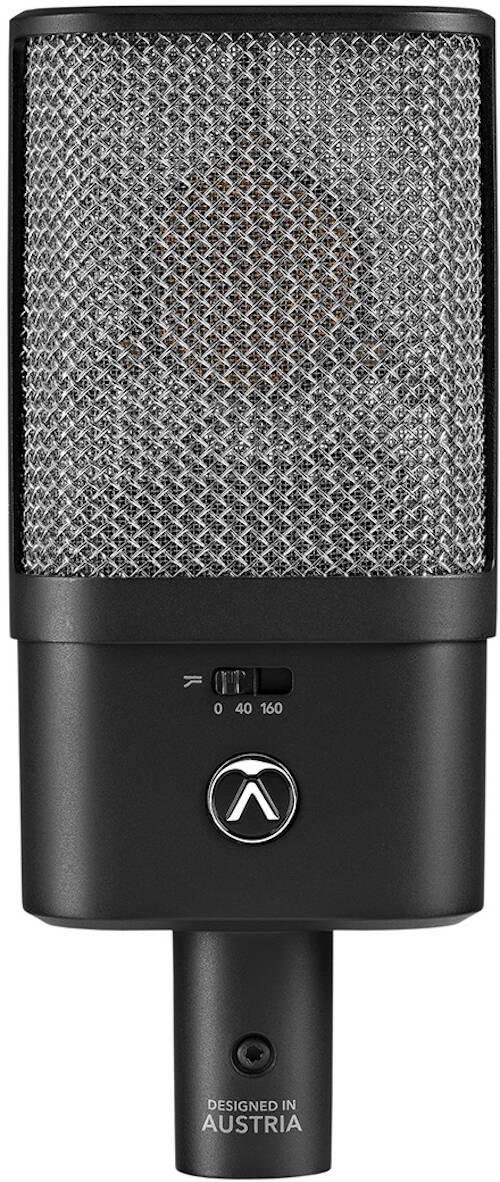

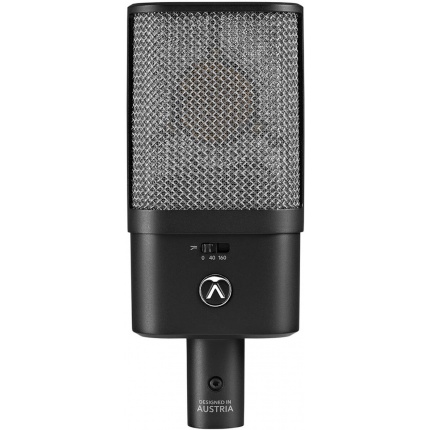

directional characteristicSwitchable high pass filter
40 Hz (2nd order), 160 Hz (2nd order)Directional characteristics:
Single
Impedance:
275 Ω
Polar pattern:
Cardioid
Load impedance:
> 1 kΩ
Frequency range:
20 Hz - 20 kHz
Supply voltage:
48 V ( 2.2mA)
Sensitivity:
11 mV/Pa
Main Connector:
XLR 3 pin
Equivalent noise level:
14 dB SPL (A)
Max SPL:
148 dB SPL
Dimensions:
157 x 66 x 34 mm
Weight:
335 g
Analog Low Cut filter:
40 Hz, 160 Hz
