Datavideo PTC-300 4K PTZ Camera with 20x Optical Zoom (Black)

S$ 3,080.00
(S$ 3,080.00 excl GST)

Out of stock

What?! Seen it cheaper somewhere?
Please tell us so we can try to match it!

Key Features:

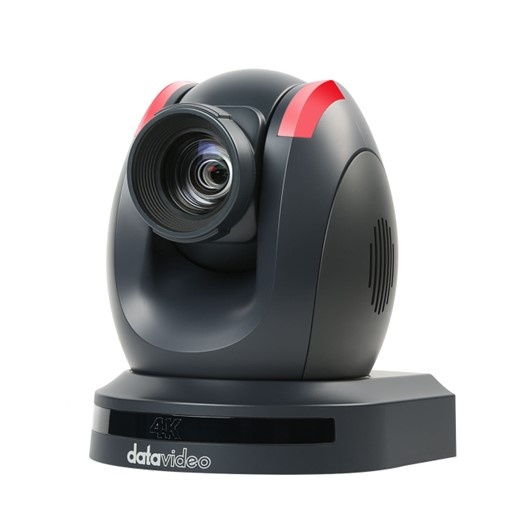

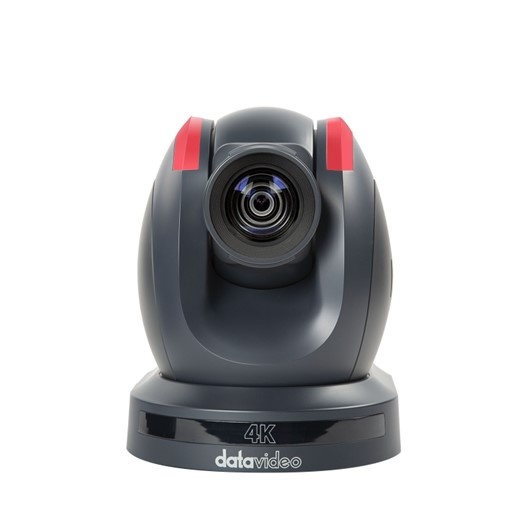

Combine high-resolution 4K imaging and dual-streaming technology with this black PTC-300 4K PTZ Camera with 20x Optical Zoom from Datavideo. The 1/1.8" CMOS sensor supports resolutions up to UHD 4K at 50/60 fps, allowing you to easily integrate the camera into any PAL or NTSC TV standards workflow, with the 20x optical and 16x digital zoom options giving you ample flexibility in your placement of the camera for optimal acquisition. Pair all that with the LAN, HDMI 2.0, and 3G-SDI outputs and the multitude of streaming protocols available and the PTC-300 becomes an invaluable asset in your arsenal of production tools.
Using H.264, H.265, and MJPEG video compression and AAC audio, the PTC-300 sends your program signal over any of the TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, and Multicast streaming protocols it supports, and it also features a 3.5mm analog audio input for embedding additional sound sources, such as an external microphone or a feed from an audio mixing console, making it an ideal component for houses of worship and concert venues. The 255 preset positions the unit is capable of storing provide a reliable blueprint for workflows that require the camera to repeat specific framing patterns, and the 1/4"-20 mounting thread on the bottom makes setting the camera up on a tripod or a wall mount effortless and quick.

Features
2D/3D Noise Reduction Technology
Reduces noise while ensuring sharper imaging, especially in lower light conditions
Simultaneous High-Resolution Video Outputs
Up to UHD 4K from HDMI and IP outputs and 1080p50/60 from 3G-SDI

SRT Ready
Fully supported by SRT and Datavideo's own dvCloud for reliable live streaming workflows

Integrates into PAL and NTSC Workflows
Supports frame rates that are inherent to PAL and NTSC TV standards

Multiple Remote Control Options
Easily controlled via RS-422, DVIP, IR, and Web UI
In The Box:
1 x Datavideo PTC-300 4K PTZ Camera with 20x Optical Zoom (Black)
1 x IR Remote Controller
1 x Ceiling Mount Bracket A
1 x Ceiling Mount Bracket B
6 x Ceiling Mount Bracket Screw M3*4mm
1 x 12 VDC Power Adapter
1 x Tightrope
Limited 1-Year Warranty, 2-Year Extension with Registration

Specifications

Image Sensor
Image Sensor: 1-Chip 1/1.8" CMOS Sensor
Sensor Resolution Effective: 8.42 Megapixel
Signal-to-Noise Ratio: 55 dB
Minimum Illumination: 0.5 Lux

Camera
Shutter Speed:1/30 to 1/10,000 sec
Max Digital Zoom: 16x
Built-In Speaker: No
Built-In ND Filter: None
Flip / Mirror Support: Image Flip, Mirror (Vertical)

Lens
Optical Zoom Ratio: 20x
Focal Length: 6.7 to 125mm
Field of View: 60°
Maximum Aperture: f/1.58 to 3.95
Focus Control: Autofocus, Manual Focus

Video Output
Broadcast System Compatibility: NTSC, PAL
Output Formats HDMI: 3840 x 2160p at 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080i at 50, 59.94, 60 fps
1280 x 720p at 50, 59.94, 60 fps
SDI: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080i at 50, 59.94, 60 fps
1280 x 720p at 50, 59.94, 60 fps
Embedded Audio: HDMI/SDI
IP Streaming: H.264, H.265, MJPEG, ONVIF, RTMP, RTSP, TCP: UHD 4K, 2160p, 1080i, 1080p, 720p, 480p, 360p (50.00 Mb/s)
IP Multi-Stream Support: Yes

Control
Presets: 255
Move Speed Pan: 0.87 to 43°/sec
Tilt: 0.69 to 21.32°/sec
Movement Range Pan: 300°
Tilt: -15 to 130°
Tally Light: Yes
Supported Control Protocols: DVIP, IP, Pelco-D, Pelco-P, VISCA

Interfaces

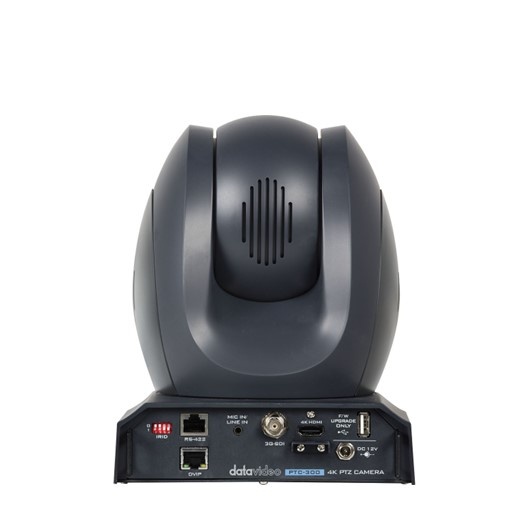

Video Output Connectors: 1 x HDMI Type A (HDMI 2.0) Female, 1 x BNC, (3G-SDI) Female, 1 x RJ45 Female
Audio I/O: 1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input
Control Interface: 1 x RJ45 (RS-422) Input, 1 x RJ45 (DVIP) Input
Other I/O: 1 x USB Type-A Input

Power
Power Connectors: 1 x Barrel / Coaxial (12 VDC)
Power Consumption: 12 W

Environmental
Operating Temperature: 32 to 104°F / 0 to 40°C

General
Tripod Mounting Thread: 1 x 1/4"-20 Female
Dimensions: 8.6 x 7.44 x 6.8" / 219 x 189.08 x 173 mm
Weight: 5.7 lb / 2.6 kg

Datavideo PTC-300 4K PTZ Camera with 20x Optical Zoom (Black)
