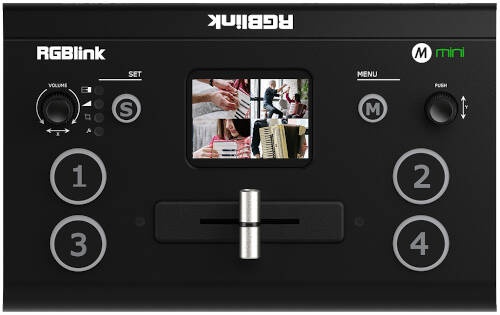

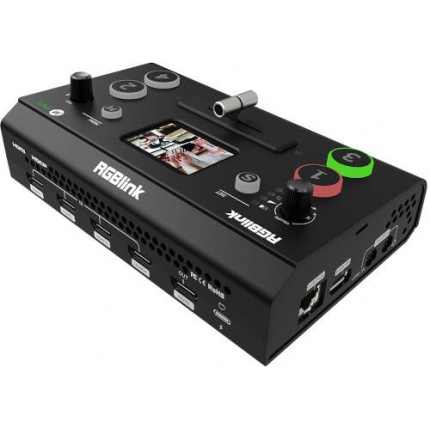

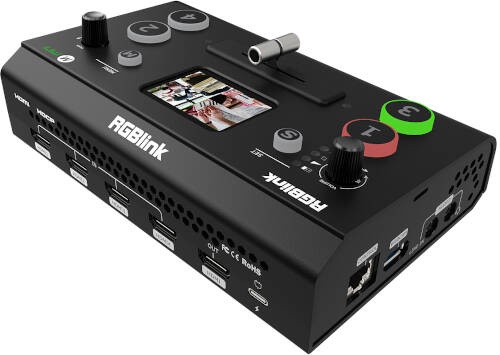

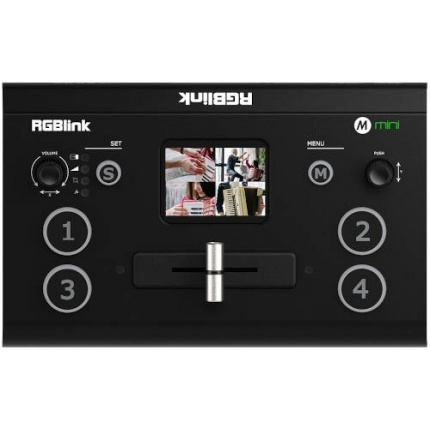

With all the features of the preceding model including the unique built in LCD preview display, the mini streaming switcher features four HDMI high-definition inputs, a configurable HDMI output and USB3.0 streaming output to connect with virtually any laptop or streaming platform.
PIP picture in picture receives a boost in this new release, with dual fully scalable video windows in any position possible.
Make use of audio from multiple sources with mix including Line and TRRS connectors as well as supporting headphone/mic combinations.
mini is powered via standard USB-C port for even greater compatibility and mobile live flexibility.
With industry leading hardware performance and reliability, along with superior heat management and dissipation, mini is the must have mini streaming switcher.
mini is light and robust at only 480gm thanks to an all new impact resistant, precision pressure cast ABS housing.In the Box:
RGBlink Mini - Mini Streaming Switcher
Interface

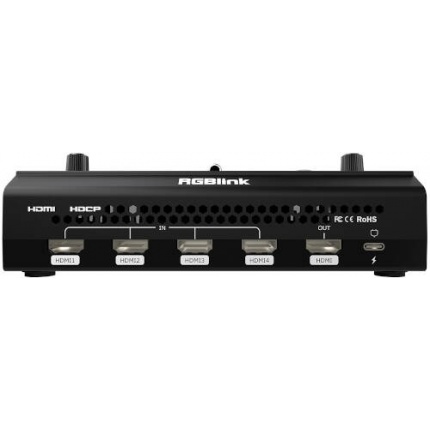

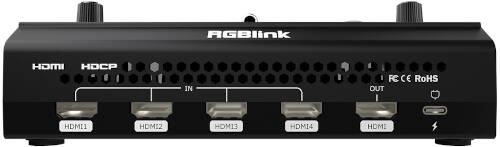

Input HDMI 1.3 4×HDMI-A
Output HDMI 1.3 1×HDMI-A
USB 3.0 1×USB-A
Audio In 1×3.5mm audio jack
Out 1×3.5mm audio jack
Communication LAN 1×RJ45
Power Type-C 1×USB-C
Performance
Input Resolution HDMI
SMPTE 720p@50/60|1080i@50|This email address is being protected from spambots. You need JavaScript enabled to view it./24.97/50/59.94/60
VESA 1024x768@60|1280x720@60|1280x768@60|1280x1024@60|1360x768@60|
1366x768@60|1440x900@60|1600x1200@60|1680x1050@60|1920x1080@60
Output Resolution HDMI
SMPTE 720p@50/60|1080p23.98/24.97/50/59.94/60
VESA 1024x768@60|1080x768@60|1080x1024@60|1360x768@60
Support Standards HDMI 1.3
H.265 ITU-T H.265/ISO/IEC 23008-2
USB 3.0
Ethernet 10/100/1000BaseT
Color Space YPbPr
Grayscale Processing 10bit
Video Sampling YUV 4:2:2
Latency 4 frames
Audio in Delay Up to 8 frames
Power
Input Voltage PD 12V/1.5A
Max Power 18W
Working Environment
Temperature 0℃~60℃
Humidity 10%~85% RH
Physical
Weight Net 0.5kg
Package 1.3kg
Dimension Product 180mmx118mmx58mm
Package 255mmx145mmx85mm
