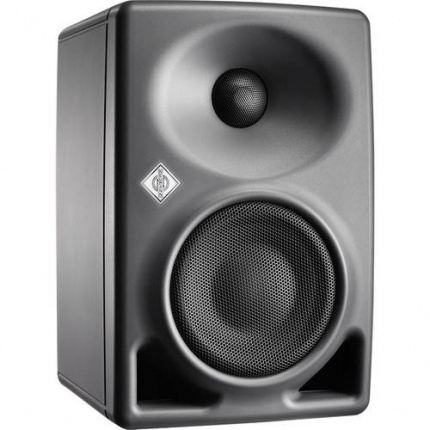

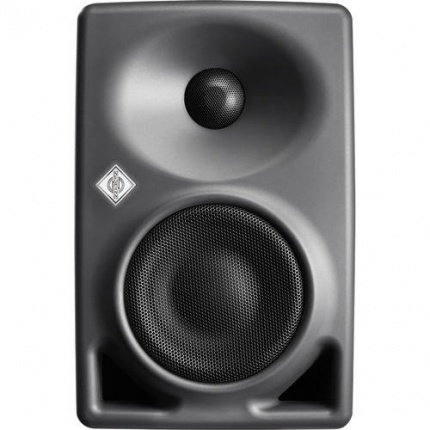

Neumann KH 80 DSP 4" Powered Studio Monitor (Single, Anthracite)

S$ 749.07
(S$ 749.07 excl GST)
Out of stock
What?! Seen it cheaper somewhere?
Please tell us so we can try to match it!

Ultra-compact, DSP-controlled bi-amplified nearfield monitor

Key Features:
  • Network-accessible DSP-regulated bi-amplification
  • Top-shelf Neumann speaker technology in an affordable nearfield monitor
  • Tried-and-true 4" x 1" nearfield speaker configuration is ideal for mixing suites and small studios
  • The Number 1 For 0 Compromises.
    With its digital core, the KH 80 DSP enables filtering functions and room adjustment options, which brings reference-level reproduction to any environment. Even with its compact design, it has extraordinary reserve capacity - as well as the classic strengths of the Neumann monitor philosophy: clearly defined dispersion angle, distortion-free design, and sophisticated material selection.

    The perfect sound of higher mathematics at work.
    The Neumann developers know every nuance, every angle, and every wave reflection of the KH 80 Dsp. It sounds so pure because they are directing every sound wave so precisely. The KH 80 DSP's design is based on computer simulations that calculate with a level of accuracy that no one other the Neumann does. The Mathematical Modeled Dispersion Waveguide (MMD) Provides the studio series with a solid base for the precise sound direction that remains unique. Maths has never sounded so good.

    Neumann even includes the biggest unknown factor in our calculations: Your room.

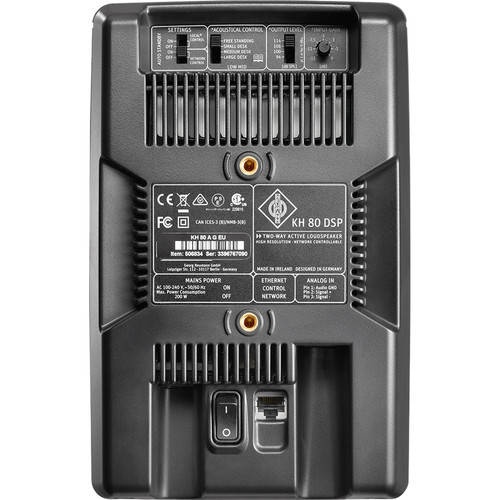

    it might be a project studio, an outside broadcast van, a corner at work, or a brick building: The room defined the sound. Surfaces and corners in the room cause interference, diffraction, reflection, and refraction: all are forms of distortion. For a really true sound, without acoustic-physical "accidents", you normally need expensive equipment plus plenty of time and expertise to align it correctly - or smart algorithms. An easy adjustment to the monitor position (free-standing, small/medium/large desk) is possible via the rear "Acoustical Control" switch.

    For even more precise adjustments we offer the following options:

    • Automatic Monitor Alignment - Automatic room correction of stereo systems using the Neumann MA1 Measurement microphone (software for Mac/PC)
    • Neumann.Control - Free iPad-App for setup, operation, and room correction of up to nine KH 80 DSP monitors via guided and/or manual alignment.

    A tool for everyone who has professional standards.
    The highest quality components, high-end protection systems, and power reserves are what you would expect from this studio class product even under the most demanding circumstances. Its design makes the KH 80 DSP a versatile near-field monitor, which delivers professional-quality sound wherever you need it - in project and music studios, editing and broadcasting rooms or in outside broadcast vans. Some of our customers like it so much, that they use the KH 80DSP in their living rooms. Why not? After all, the KH 80 DSP delivers digital precision for a masterpiece of analog technology: your ears.


  • Studio Monitor
    Monitor Type Active 2-Way
    Enclosure Bass-Reflex, Shielded
    Drivers LF Driver: 1 x 4" / 101.6 mm Composite Cone
    HF Driver: 1 x 1" / 25.4 mm Tweeter
    Amplification LF Amplifier: Rated at 90 W / 120 W Peak
    HF Amplifier: Rated at 50 W / 70 W Peak


    Performance
    Frequency Range 53 Hz to 21 kHz ± 6 dB
    57 Hz to 21 kHz ± 3 dB
    Maximum Sound Pressure Level (SPL) 108.8 dB
    Dynamic Range 114 dBA
    Maximum Input Level +24 dBu (Balanced)
    Analog Input Sensitivity/Gain 0 dB to -15 dB (Incrementally Variable)
    Protections and Limiting Excursion Limiter, Peak Limiter, Soft Limiter, Thermal Limiting


    Signal Processing
    EQ 1 x Low-Mid Shelf dB


    Crossover
    Crossover Frequency Low-Pass: 1.8 kHz, 48 dB/Octave Slope


    Connectivity
    Audio I/O 1 x Combo XLR-1/4" Balanced Female Analog Input
    USB & Network I/O 1 x RJ45 (Network)


    Power
    AC Input Power 100 to 240 VAC, 50/60 Hz
    Power Consumption 180 W (Maximum)


    Environmental
    Operating Temperature 50 to 104°F / 10 to 40°C
    Storage Temperature -13 to 158°F / -25 to 70°C


    General
    Mounting Points 2 x M6 (Rear Panel)
    Dimensions (W x H x D) 6.1 x 9.2 x 7.6" / 154 x 233 x 194 mm
    Weight 9.0 lb / 4.1 kg


    Packaging Info
    Package Weight 9.6 lb
    Box Dimensions (LxWxH) 14 x 11 x 9.7"
