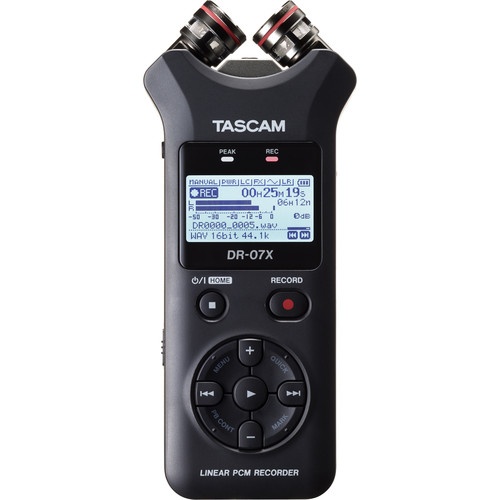

Stereo Handheld Digital Audio Recorder and USB Audio Interface
DR-07X
Compact and easy to use audio recorder with stunning sound.The TASCAM DR-07X is an easy to use and thoroughly compact portable audio recorder that features amazing HD audio, multiple fail-safe functions, and switchable microphone configurations for enjoyable and intuitive field recording.
Record clean and clear audio anywhere
The TASCAM DR-07X allows high-quality recording utilizing an easy-to-use interface and is portable, powerful, and a true value. Dual internal condenser microphones can handle anything from subtle to loud to 125dB SPL, with sensitivity to capture every detail.Simple to operate.
The layout of the DR-07X has been revamped to be quick and easy to work with one thumb. Operations like recording, adjusting levels, deleting takes, and adding markers are all a button press away.TASCAM DR-07X uses only two AA batteries and has ultra-long battery capability. When using built-in microphones, recording lasts 17.5 hours when recording with standard 2ch WAV, 44.1kHz/ 16bit format using alkaline batteries. TASCAM DR-07x can also be powered by a USB mobile battery as well for super long extended use.
Adjustable microphone for preferred stereo image.

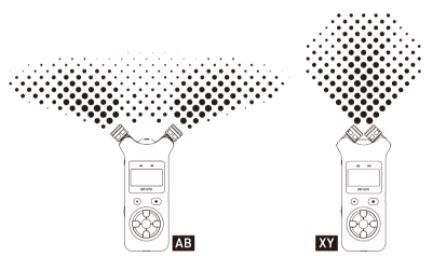

DR-07X is equipped with adjustable unidirectional microphones that can be used for recording in both the A-B position and X-Y position. Advanced microphone placing allows for a wide stereo sound recording or a clear stereo sound recording with less phase difference, making it possible to achieve professional quality recordings.A-B and X-Y stereo?
A-B configuration captures a wider audio space for more room, while X-Y focuses on the sweet spot for a tighter audio field.Turning your room into a studio - in a minute.
Connect to a PC using USB Audio interface mode, and DR-07X becomes a tool for voiceover work, live streaming, podcasting and songwriting with studio-quality audio.
Built-in microphones work as USB microphones without complicated driver installs.Back up your transcription work: record and play with one unit
Writing down what you hear - Easier said than done, but it is actually easy with DR-07X. In addition to its capability to capture crisp voice recording, DR-07X can help you with its Jump back function, variable Speed function and equalizer preset for human voice.Tools for music
In addition to its excellent recording capability, DR-07X is a helpful musical instrument practice tool. An internal Reverb effect works both on playback and recording, allowing you to rehearse your performance with spacious concert hall reverb. A chromatic tuner is also available.Never miss the timing
Auto recording function can detect the sound input signal level and automatically start recording. Also, Pre-recording function with up to 2 seconds pre-record provides fail-safe protection even when you are a bit late to hit the record button.Still safe if it is louder than you thought.
Peak Reduction works in rehearsal mode or in record. Even if the sound or performance is louder than the sound check you’re safe. Combined with Auto level and Limiter for preventing distortion, you never have to worry.
No need to go through “take 2” all over again
If you don’t like the last part of a phrase you just recorded with your guitar, or if you change your mind and want to rephrase narration, the “Overwrite mode” is exactly what you need. Overwrite mode allows punch-in recording from a desired point. It is destructive editing with one level of undo.Nondestructive Overdubbing
The overdubbing function allows for Overdub Recording while playing a previously recorded file. This allows you to record other parts such as a guitar solo over a recording previously made such as at a rehearsal studio. Overdubbing creates a new file, leaving the original file unaffected, making it easy to re-record.192 Hours. This is how long you can record CD-quality sound with one single microSDXC card.
DR-07X supports a microSDXC card, which can record longer with larger data capacity. If you record a stereo file at 44.1kHz/ 16bit CD quality, a 128GB card holds 192 hours maximum. In MP3/ 320kbps mode, it can record up to 896 hours.Recording Media - microSD card (64MB to 3GB), microSDHC card (4GB to 32GB), microSDXC card (up to 128GB)
File System - FAT16/32, exFAT
Recording File Format
WAV / BWFSampling Frequency 44.1k / 48k / 96k Hz
Bit-depth 16 / 24-bit
MP3Sampling Frequency 44.1k / 48k Hz
Bit-rate for recording 32k / 64k / 96k / 128k / 192k / 256k / 320k bps
Playback Bit-rate 32k to 320k bps, VBR, ID3TAG Ver. 2.4
Number of Channels 2-channel (Stereo) / 1-channel (Mono)
Playback speed control 0.5 to 2.0 times (in 0.1 increments) * 44.1k/48kHz only
Built-in Microphone Unidirectional, Stereo (switchable between A-B and X-Y positions)
MIC/EXT INConnector 1/8" (3.5mm) Stereo Mini jack (Unbalanced, Plug-in Power)
Nominal Input Level -20dBV
Maximum Input Level -4dBV
Input Impedance 18kΩ or more (PLUG IN PWR: OFF)
2kΩ or more (PLUG IN PWR: ON)PHONES/LINE OUT
Connector 1/8" (3.5mm) Stereo Mini jack (Unbalanced)
for LINE connection
Nominal Output Level -14dBV (10kΩ load)
Maximum Output Level +2dBV (10kΩ load)
Output Impedance 12Ω
for Headphones connection
Maximum Output Power 20mW + 20mW (32Ω load)
USBConnector USB Micro B-type
Format USB2.0 HIGH-SPEED
Built-in Speaker 0.3W, Mono
Low-cut Filter 40 / 80 / 120Hz
Chromatic Tuner C1 to B6, A4 = 435Hz to 445Hz (in 1Hz increments)
Effector 6 presets (Hall 1, Hall 2, Room, Studio, Plate 1, Plate 2)
Tripod attachment screw-hole 1/4" Tripod attachment screw-hole
Power 2 AA Batteries, USB bus power, AC 100 to 240V (optional AC Adapter)
Power Consumption 1.7 W (Max)
Battery Operation Time
(Recording)
Alkaline (EVOLTA) approx. 17.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
Ni-MH (eneloop) approx. 15.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
Dimensions (W×H×D) 2.67" × 6.22" × 1.02" / 68 × 158 × 26 mm
Weight 4.5 oz. / 127 gFrequency Response
Fs 44.1kHz 20Hz to 20kHz, +0/-1dB (EXT IN to LINE OUT, JEITA)
Fs 48kHz 20Hz to 22kHz, +0/-1dB (EXT IN to LINE OUT, JEITA)
Fs 96kHz 20Hz to 40kHz, +0/-1.5dB (EXT IN to LINE OUT, JEITA)
Total Harmonic Distortion 0.01% or less (Fs 44.1k/48k/96kHz, EXT I Not LINE OUT, JEITA)
Signal-to-Noise Ratio 94 dB or higher (Fs 44.1k/48k/96kHz, EXT I Not LINE OUT, JEITA)
